550mm Width Web Guide System

PG550A displacement web guide system, the coil width can reach 520mm (20.5′′), the maximum tension is 623N (140 lbf). It is in the case of narrow entrance and exit spans, the ideal product for edge guide,line guide & center guide.Even with long hours of work, he can quickly and accurately position the coil. The standard roll face length is 203 mm (8") to 520 mm (20.5"). The servo alignment device can automatically correct the alignment and improve the setting speed.

Main Features:

1. Quickly and accurately position the coil.

2. Web width up to 520mm (20.5′′).

3. Precise free recoil drive and servo motor.

4. Sturdy structure reduces maintenance probability and ensures long-term working stability.

5. Applicable to all edge alignment,line alignment ,and center alignment products;

6. High precision free recoil drive and DC servo motor.

7. Optional mounting bracket and stand.

8. Can design products according to customers’ needs

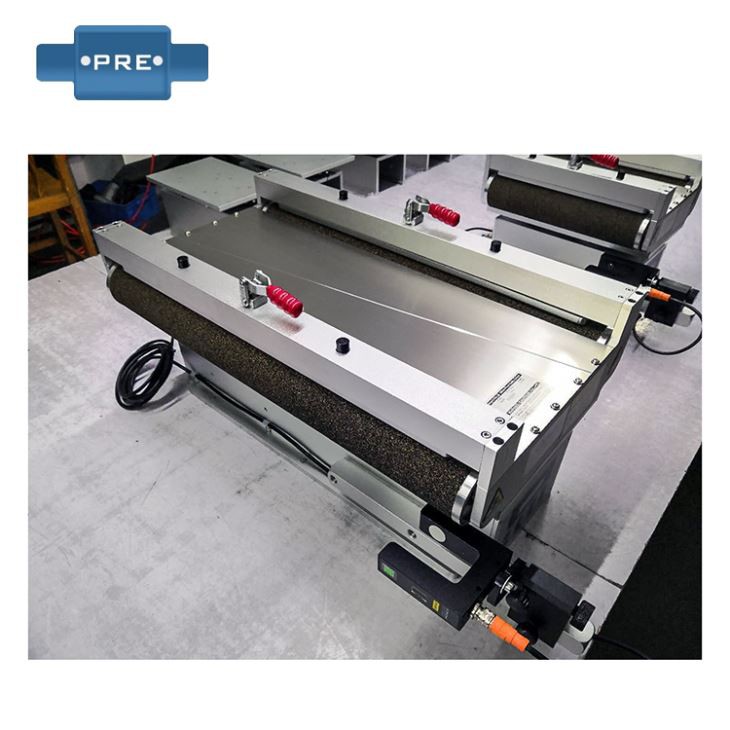

9. Can add the splice table and clip based on customers’ needs(like the pictures showed).

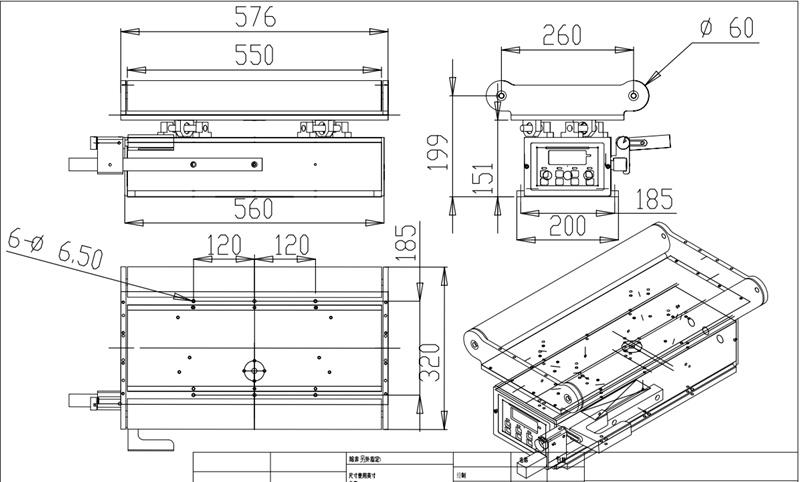

Drawing:
