Core Chuck

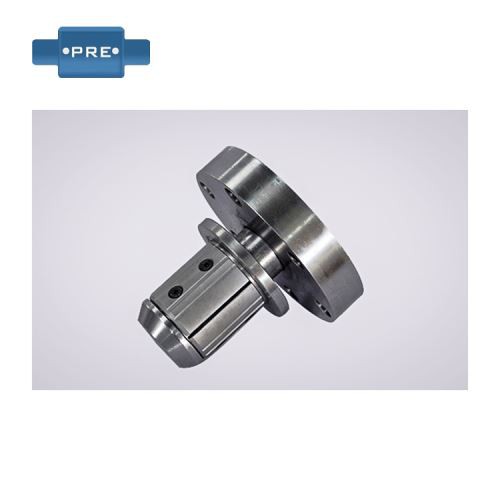

3 Inch Pushing Mechanical Core Chuck
The traditional core chuck has the disadvantage of breaking the original paper core during use, and the new mechanical automatic centering chuck can improve the utilization rate of the original paper and reduce the production cost.
Read More

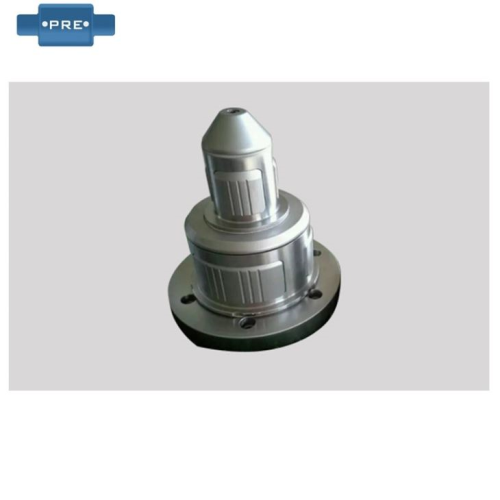

3inchx6inch Integrated Rotary Mechanical Chuck
Introduction Model: AEB-003 ---- 3X6 '' Automatic torque activation High concentric accuracy reduces vibration Suitable for heavy applications Rotating mechanical chuck dedicated to the original paper holder The new mechanical self-centering chuck can improve the...
Read More

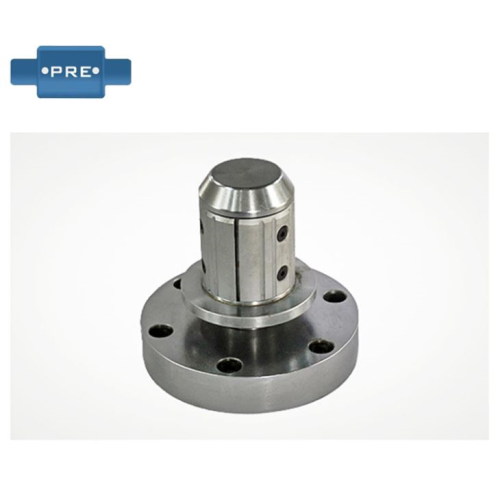

Core Holders
Mechanical chuck features: 1. The mechanical chuck does not require complicated and expensive piping and pneumatic hydraulic system. The chuck does not need lubrication for life and the maintenance cost is low. 2. The contact area of the larger paper core will not break the...
Read More

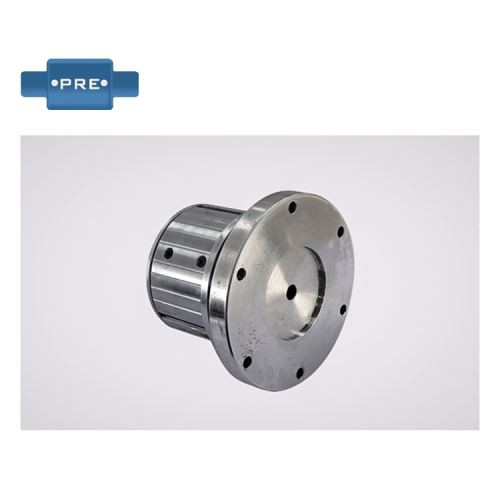

6 Inch Pushing Mechanical Core Chuck
The PRE axial pushing core chuck has a spring system that expands the key and locks the core. The mechanical chucks are available in both single and double diameter sizes and are suitable for 3" to 12" cores. There is also a special model with a central positioning hole and a...
Read More

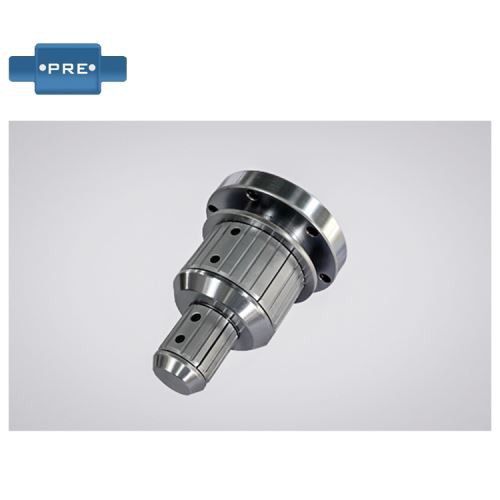

Combined Pushing Mechanical Core Chuck
It is recommended to use a roller frame with a hydraulic arm to provide lateral force;
Constantly reliable clamping along the center without slippage;
The spring mechanism ensures that the positive terminal lug retracts without creating a core wire on the chuck;
Read More

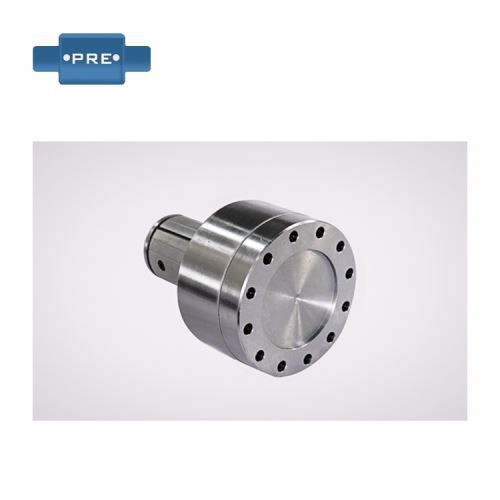

3 Inch Pneumatic Mechanical Core Chuck
Suitable for high speed, high torque non-shaft rolling mill stands;
Suitable for two winding and unwinding;
Piston type that can be operated in any direction;
High concentric accuracy reduces vibration;
Read More

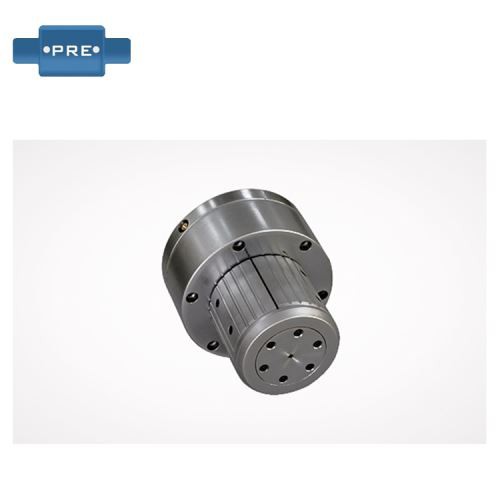

6 Inch Pneumatic Mechanical Core Chuck
Pneumatic mechanical core chucks can be manufactured to suit core sizes from 76mm up to 152mm.
The method of operation is simple and very effective.
When air is applied to the chuck a pressure chamber fills which once filled pushes a piston forward.
Read More

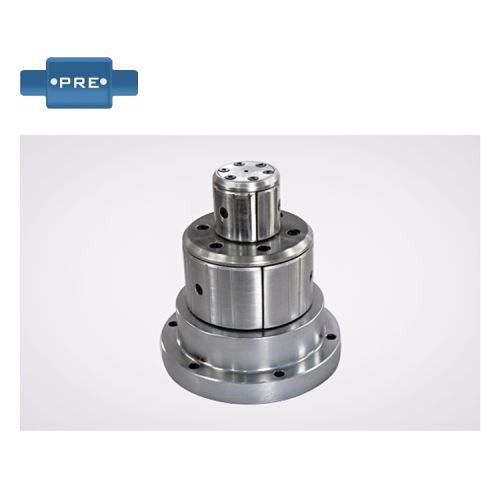

Combined Pneumatic Mechanical Core Chuck
Commonly used in applications running lighter rolls of material and/or at higher speeds (ex: laminating, sheeting, paper, corrugated, etc), PRE Series Pneumatic Mechanical Core Chucks are designed to ensure maximum grip, stability, and performance, delivering constant...
Read More

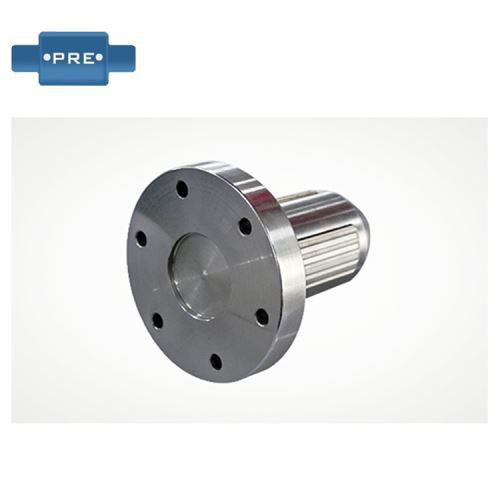

3 Inch Rotary Mechanical Core Chuck
Self-expanding and self-blocking Torque Activated Core Chucks engage the core as a result of the reel’s rolling action making it ideal for light or heavy continuous duty shaftless unwind or rewind applications. D-TA Core Chucks are also available with Modular Adapters when...
Read More

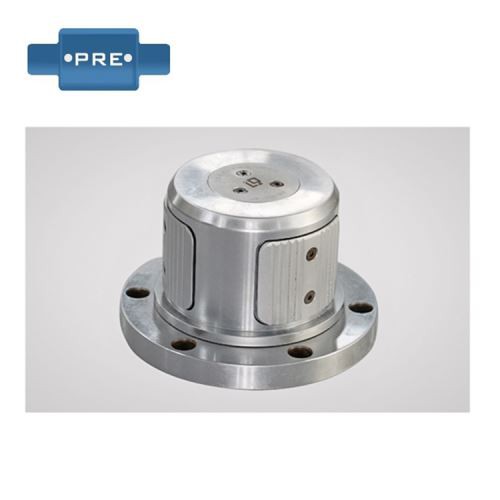

6 Inch Rotary Mechanical Core Chuck
Rotary Mechanical Core Chuck is also called torque-activated expanding core chuck, it is fitted with segmented sectors (“leaves”) that expand using the torque of the movement of the reel; this creates optimal centering of the chuck in the core.
Read More
