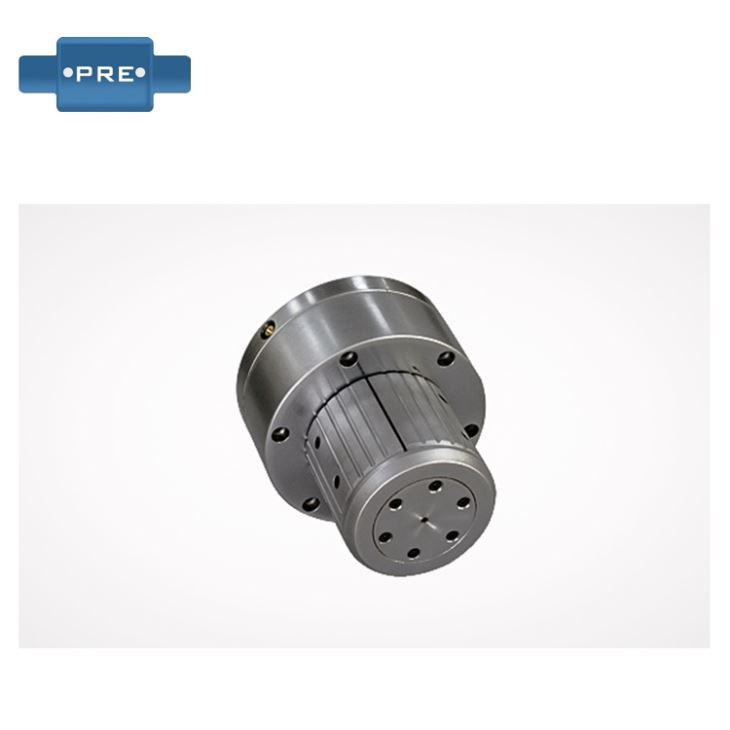

6 Inch Pneumatic Mechanical Core Chuck
Pneumatic mechanical core chucks can be manufactured to suit core sizes from 76mm up to 152mm.
The method of operation is simple and very effective.
When air is applied to the chuck a pressure chamber fills which once filled pushes a piston forward.
Brand Name: | PRE Converting |
Application: | For all kinds of printing & converting machines |
Loading Range | 1500kg;4000kg |
Expanding Range | 75mm-81mm;150mm-157mm |

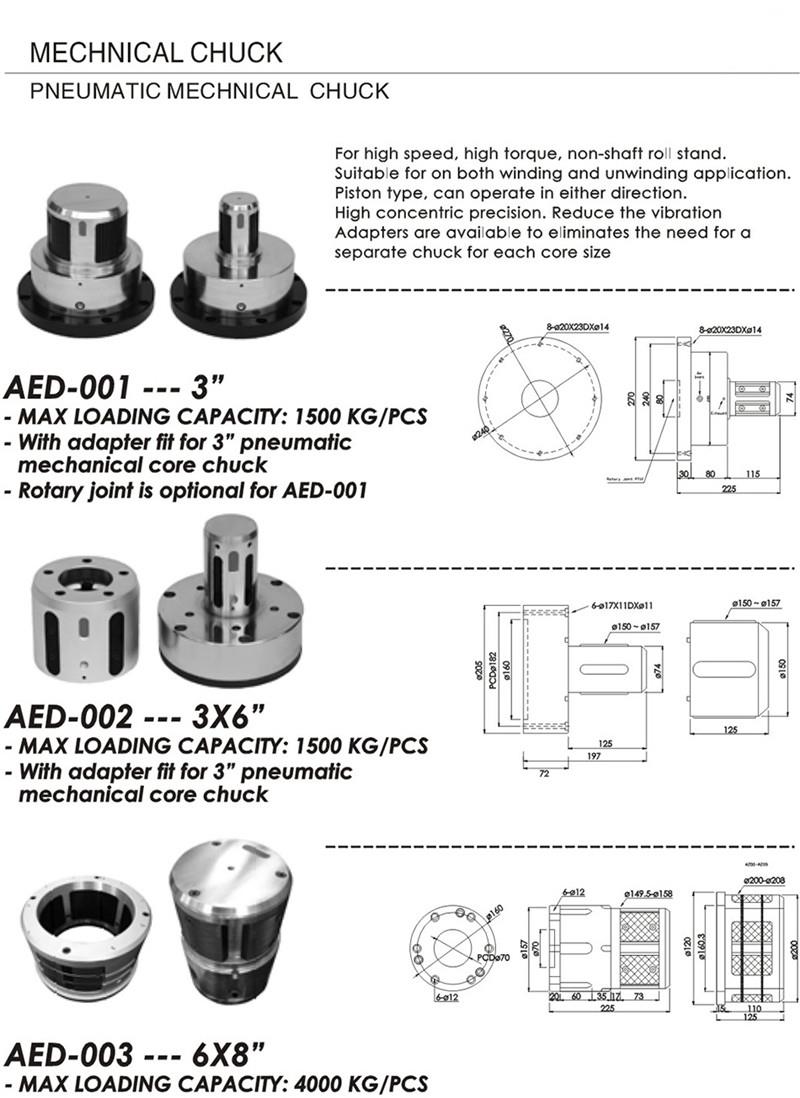

Models | AED3 & AED6 |
Principle | Pneumatic Mechanical Core Type |
Features:
Pneumatic mechanical core chucks can be manufactured to suit core sizes from 76mm up to 152mm.
The method of operation is simple and very effective.
When air is applied to the chuck a pressure chamber fills which once filled pushes a piston forward.
When the piston travels forward tapered keys are forced up an inclined hardened taper.
The gripping elements are attached to the keys.
The core chuck is suitable for braked and driven applications in unwind or rewind positions.
Order Details
Item Name | 6Inch Pneumatic Mechanical Core Chuck |
MOQ(Minimum Order Quantity) | 1Pc |
Lead time | 7-10 days after receiving the deposit |
Calculated Weight | According to different models |
Package | Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT,L/C,Western Union |
Country of Origin | China |
