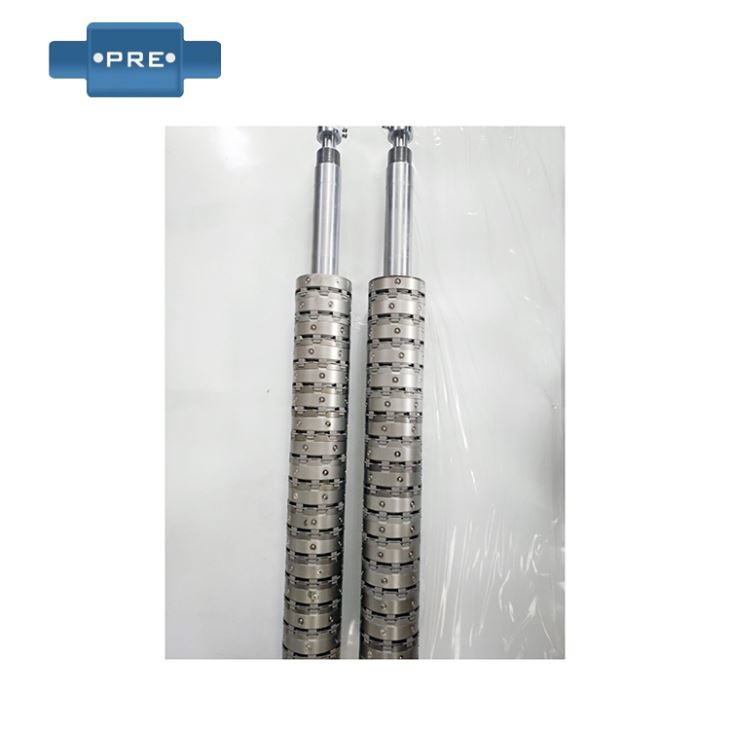

6 Inch Nishimura Type Differential Shaft

Everyone is asking what is the principle of the Nishimura sliding shaft.Here are some tips to share with customers. It is an important component on the lithium battery slitter (slitting machine), mainly used for reeling or rewinding, its main purpose is to manipulate the tension adjustment of the material in the winding process.

Its principle is: The central air pressure slip shaft is a tension adjustment type differential shaft, and the slip ring is independently slipped. The slip shaft is centered on the precision air core ventilation main shaft. The piston is used to push the piston in the cavity, so that the shaft core generates friction torque between the friction member and the slip ring, which further drives the oblique expansion piece on the inclined base. The radial direction expands, squeezing the take-up reel, and transmitting the torque of the take-up reel to achieve constant tension take-up. In this way, the winder can work with a degree of relaxation.

Today, the Nishimura friction shafts is not only a vital part of the winder,such as drying machine, flexo printing machine, gravure machine, trademark printing machine, coating machine, leather machine, setting machine, embossing machine, slitting machine, die cutting machine, rewinding machine, paper tube machine, bag making machine,  laminating machine, film blowing machine, foaming machine,embossing machine, paper machine, non-woven machine, cloth inspection machine, bronzing machine, battery device, and the like are all required. The quality of differential shaft is a good consideration for production.

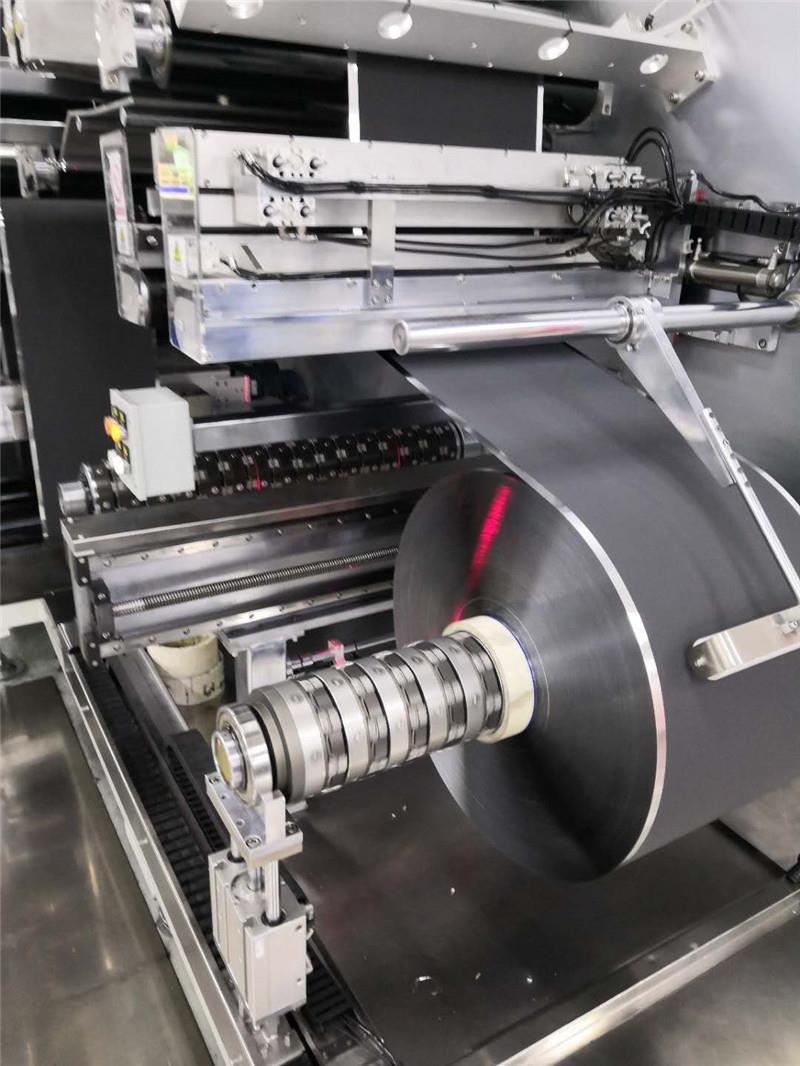

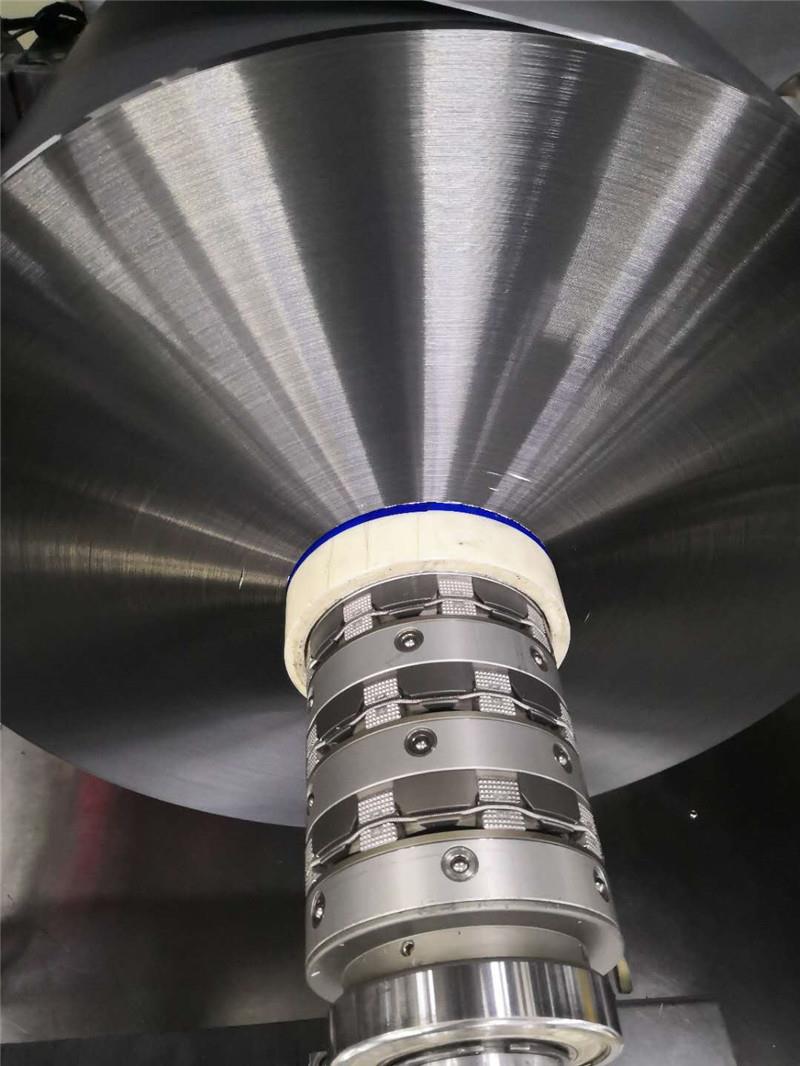

Installation:

Technique parameter

Order Details
