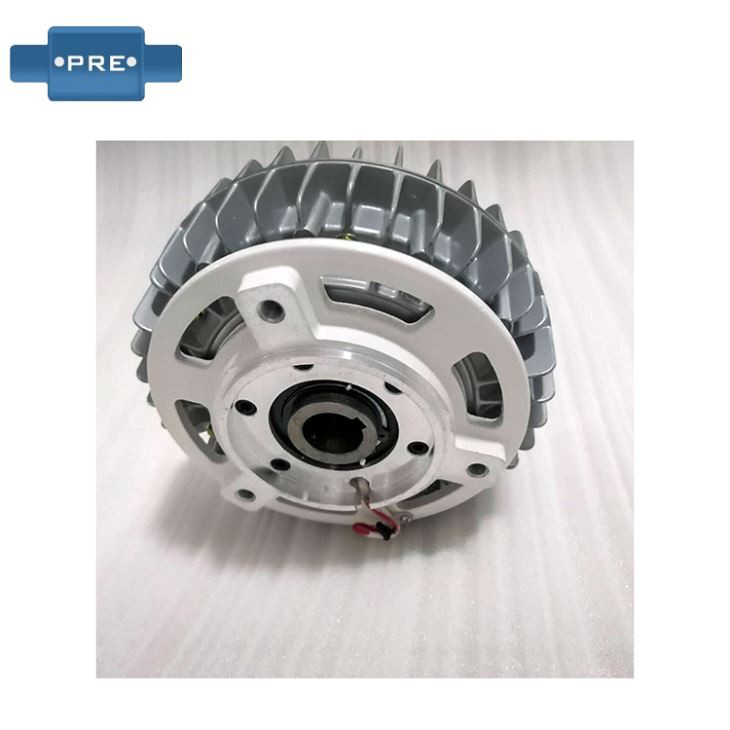

Hollow Shaft Magnetic Powder Brake

PRE-B1 Hollow Shaft Shell Rotating Magnetic Powder Brake

Introduction to Magnetic Powder Brake PRE-B1:

The hollow shaft outer shell rotary type magnetic powder brake has a heat-dissipating method of natural cooling, which rotates the periphery to improve heat dissipation performance and improves the heat capacity of the model. The characteristics of the product are as follows:

Easy to control over a large range, and good linearity;

Can achieve continuous sliding operation and obtain stable torque;

Imported bearings, environmentally friendly, no noise, quiet and stable operation;

The imported magnetic powder with high heat resistance has a long service life, and the heat capacity is relatively ideal for the structure and design, and it can achieve a smooth continuous and driving state.

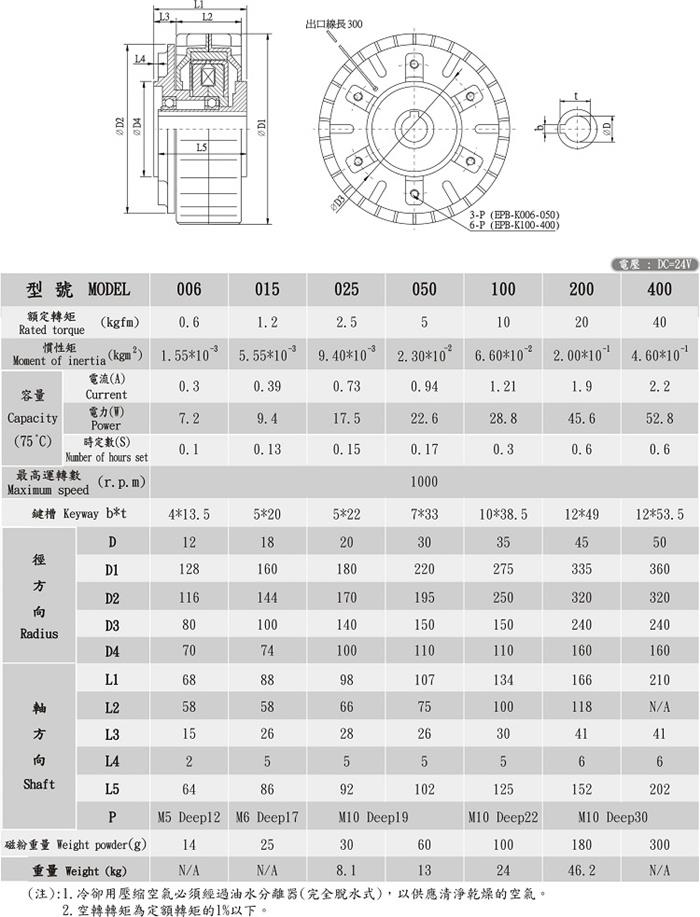

Catalogue:

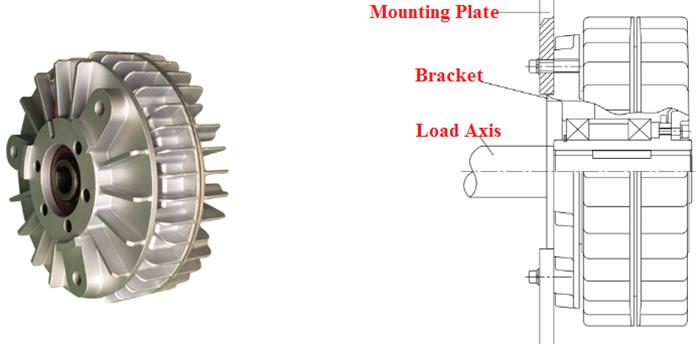

Magnetic powder brake installation example diagram:

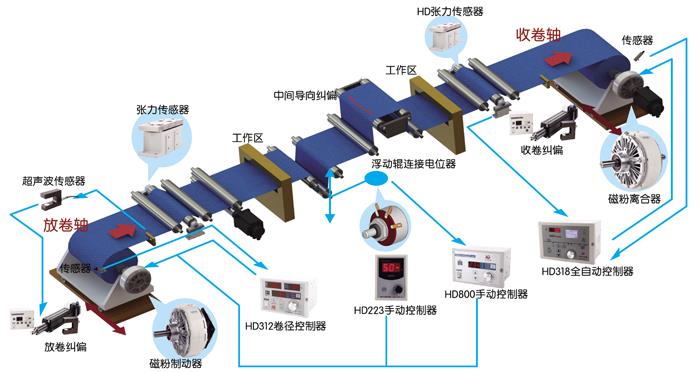

The Schematic Diagram of powder brake,tension control, web guide system and other parts on equipment.

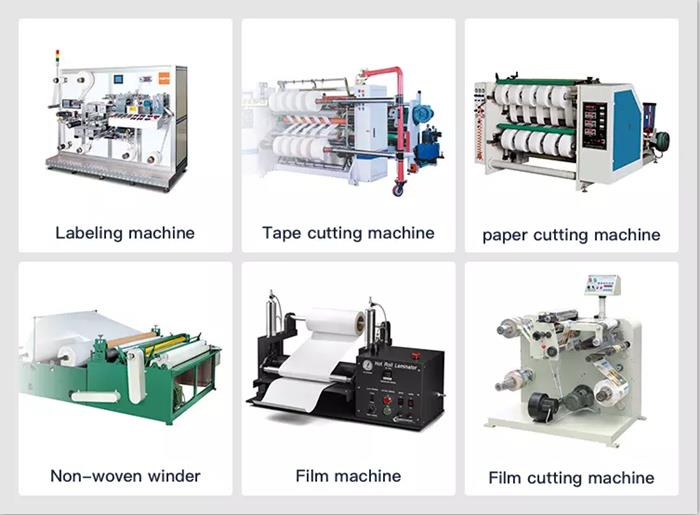

Application:

Order Details
