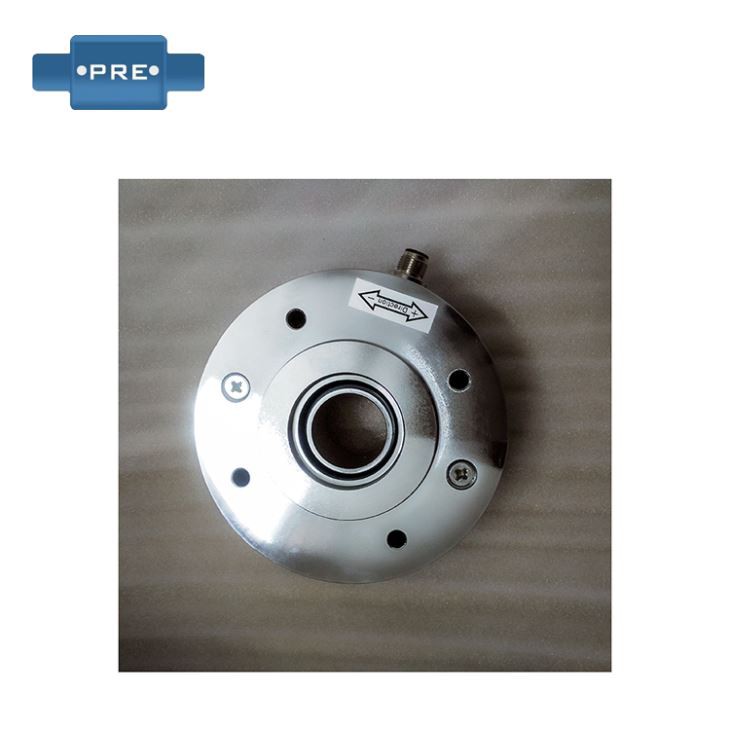

Through-Hole Tension Detector

LC series of through-axis tension detector is in line with idler rollers or live round rolls installed applications. There are two sizes and a variety of rated load for selection. It is the use of full-bridge strain gages detected tension detector,can be used to detect different web tension. LC Series load cell can be installed directly on the machine bracket,can also be used bottom or fixed installation. The compact design and through-shaft design makes it a preferred client application selection.

Excitation voltage: 10VDC

The output signal :2mVN (factory setting)

Strain gauges/gages: 350 Ω

Detection Type: Full Bridge

Maximum output signal: 150% TYP

Comprehensive error :( hysteresis, repeatability, non-linearity error) <0.50%

Maximum overload:500% of rated load:

Detection Type: Full Bridge

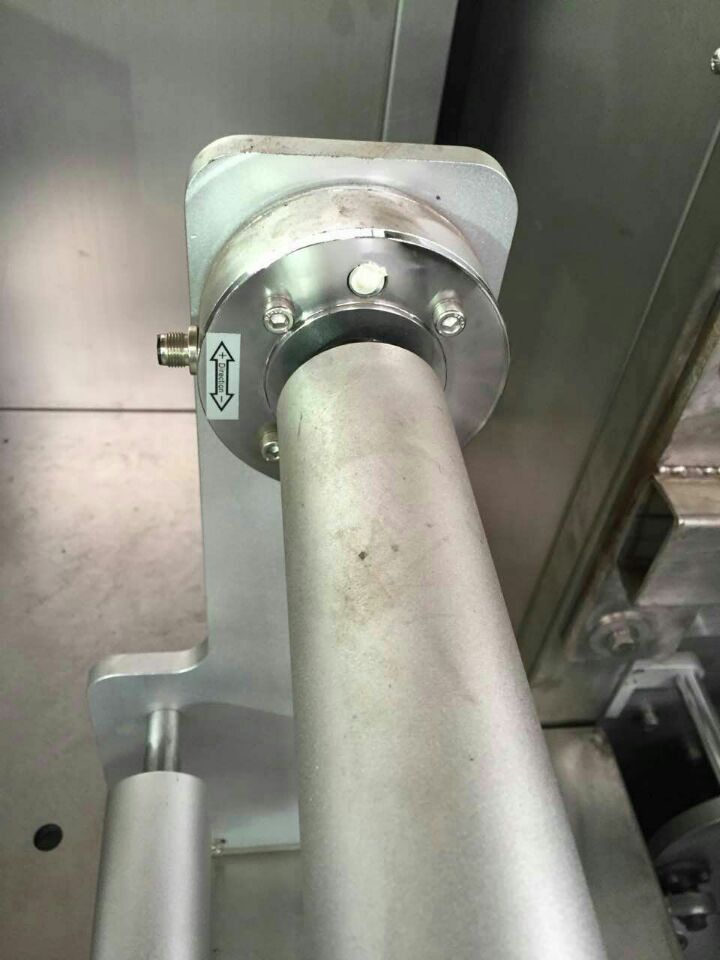

Installation:

Order Details
