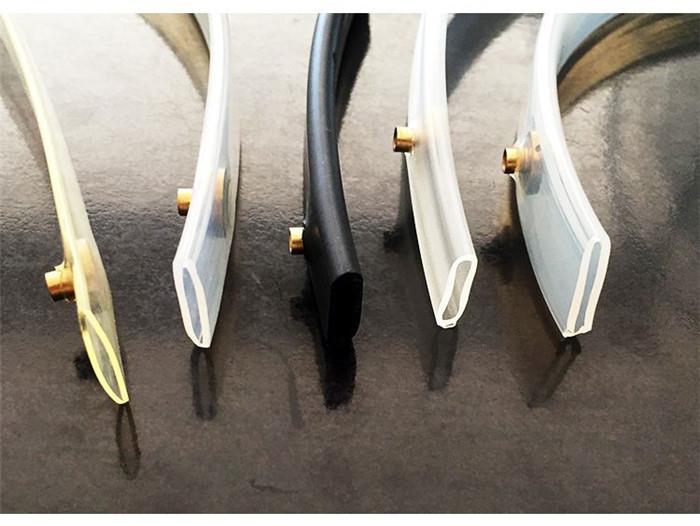

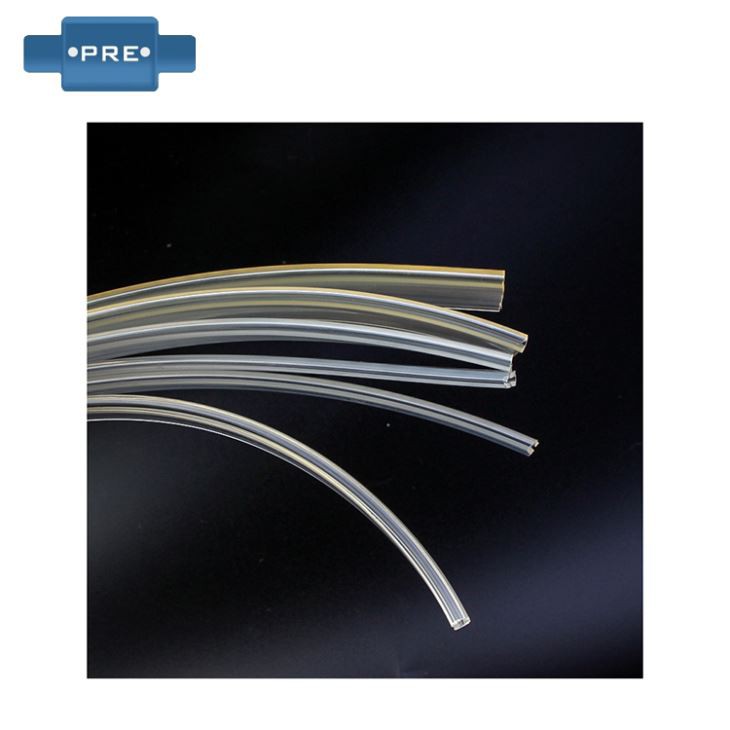

PU Bladders for Differential Shafts
The flat air hose is widely used in all kinds of differential air shafts,such as ball type,key type slip shafts,etc.
It is researched and developed according to the application of sliding shafts on slitters.
It can be operated normally in the condition of 80℃ without deformation.
Name: | Flat Bladders |
Model: | Flat Type |
Material | PU(Polyurethane) |
Total Height of PU Bladder: | 15mm,18mm,20mm(can be customized) |
Thickness of Single Wall | 1.5mm,2mm(can be customized) |
Colour | Transparent,White |
Application
The flat air hose is widely used in all kinds of differential air shafts,such as ball type,key type slip shafts,etc.
It is researched and developed according to the application of sliding shafts on slitters.
It can be operated normally in the condition of 80℃ without deformation.
Features
Our product has advantages of high stability, high flexibility and high temperature resistance,it can load 3-10kg air pressure.
It has passed the professional tests and can be used in cold temperature -20℃.
1)Application:Differential Air Shafts
2)Material:PU
3)Specification:Width:15mm,18mm,20mm,Thickness:1mm,1.5mm. (all can be produced at any time)
4)Service life:3-5 years(According to customers’ work environment & use frequency)
5)Can be customized-made
6) Applicable temperature: MAX 100℃
7) Highest/lowest temperature resistance: -25℃~100℃
8)Oil resistance: General
9)Usage: Inflate air
10)Color: White or transparent
11)Shape: Flat
12)Certificate: KCB,CNAS,CE,UICC,MA,AL,GB/T19001-2008 idt IS09001:2008 GB/T19001-2000 idt IS09001:2000
Specifications
Total Height*Wall Thickness(mm) | Length(Meter/Circle) | Total Height*Wall Thickness(mm) | Length(Meter/Circle) |
15*1.5 | 200Meters/Circle | 20*1.5 | 200Meters/Circle |
18*1.1 | 200Meters/Circle | 20*2 | 200Meters/Circle |
For more dimension,can be customized. |
Order Details
Item Name | Flat Bladder Tube For Differential Air Shaft |
MOQ(Minimum Order Quantity) | 5 Meters |
Lead time | 3-5 days after receiving the deposit |
Calculated Weight | 2KG/20M |
Package | Carton/Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT,L/C,Western Union |
Country of Origin | China |
Hot Tags: pu bladders for differential shafts, China, manufacturers, suppliers, factory, quotation, pricelist, buy
