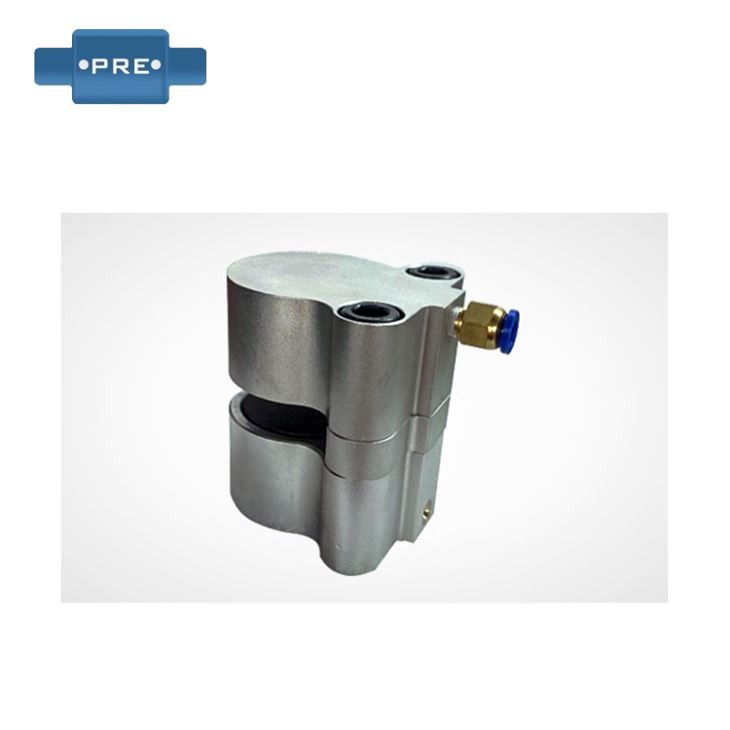

DBF Air Disc Brake

Features:

DBF air disc brakes are suitable for different installation methods,and can also be used in linear motion brakes. Larger friction area extends maintenance intervals for long life. If several brakes are installed on one disc, the torque will increase several times.

Technology from Taiwan, water resistance, dust, high temperature, frequent use of high durability and stable performance. Action by air pressure, no electrical spark, with anti-riot, safe and reliable.

The braking force can be adjusted, a wide range of brake torque.
Excellent heat dissipation, friction abrasion and two type, easily replaced.
Fixed Straight push underside of a small brake, adapt to different installation methods can also be used in the linear motion of the brake on. Larger friction area extended maintenance cycles, long-life operation. If you install several on one disc brakes, the torque also will be increased several times.

Application field:
1. Packing and wrapping systems: packing machine, strapping machines, wrapping machinery

2. Textile machinery: fiber twisters, treatment machines, weaving machines, stranding machines, batching machines

3. Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines, forge and press, coil process machine, twisting machine, punching machines, steel rolling machines

4. Machine tool systems: lathes,

5. Millers, steel extruders, CNC lathes, specialized machinery

6. Transportation equipment: hoists, feeders, conveyors, rollers, winders

7. Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

8. Printing systems: conveyors and in- feeders, film printing, gravure, rotary machine, cameo printing letterpress, laminating machines

9. Wood-working systems: saws, wood-working machine, laminators

10. Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers

11. Testing systems: lab machines, durability testers, measuring systems

12. Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines,  filling machines, pack making machines,

13. Rubber: adhesive tape making machine

14. Others: speed reducers, electroplating machinery, physics and chemistry machines, pulp processing machines, construction machines.
