Unwind Guide System

The coil materials in the web control device business refers to a sheet product such as paper, film, foil, fiber, rubber, or woven fabric. In order to eliminate the positional deviation of the coil during processing, ensure that the coil is accurately run at the specified position to achieve the precision required during the operation and the winding is neat, we will make you according to the difference of the coil and the actual application. Brought a variety of web guide solutions.

Unwinding Correction: Ensure that the coil is always exported from the preset position during the unwinding process in order to accurately enter the next step.

Design and installation precautions: unwinding movable frame and exporting roller are integrated. When the drive is telescopic, the unwinding movable frame and the take-up roller work together; the edge detecting sensor needs to be installed after the exporting roller and is fixed independently; if it is a photoelectric sensor, It is then irradiated on the movable take-up roll or on other guide rolls integrated with the unwinding frame, that is, when the drive is actuated, the guide roll illuminated by the photoelectric sensor also moves with the drive together with the unwinding movable frame.

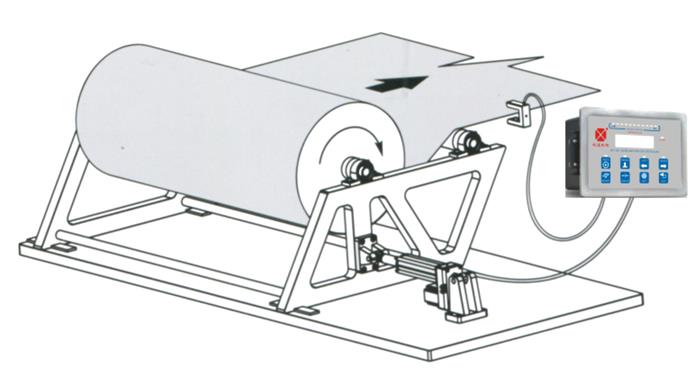

Unwinding correction installation diagram:

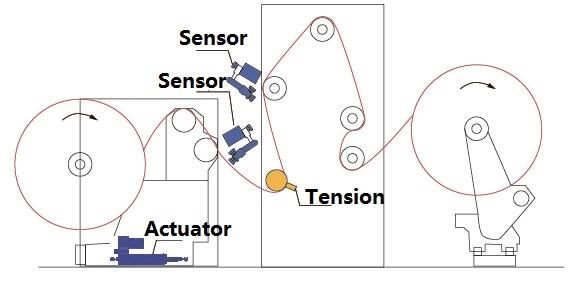

Installation on rewinder:

Recommended controller model for unwinding web guide: EPC edge controller, LPC line controller;

Recommended sensor models for unwinding guide system: ultrasonic sensors, photoelectric sensors;

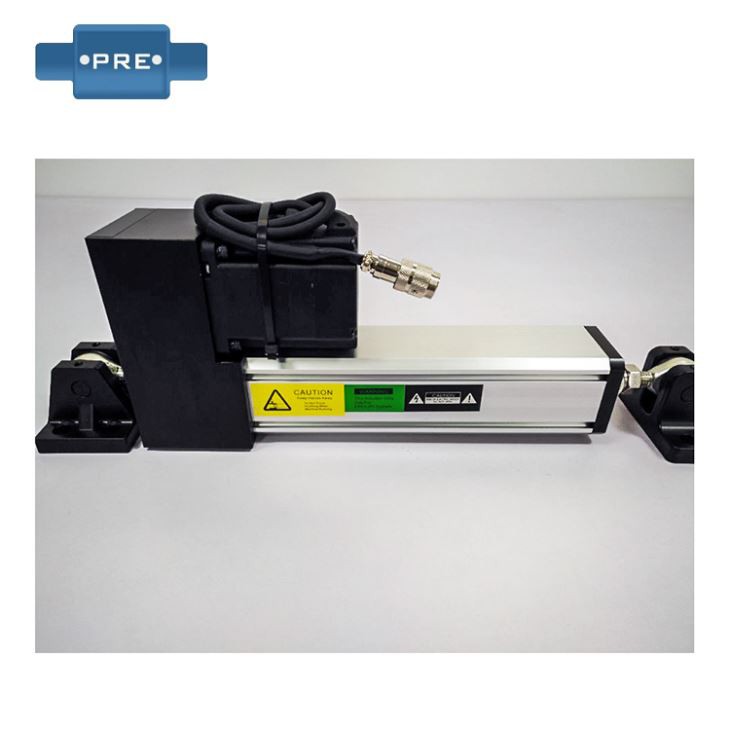

Recommended rectification actuators for unwinding web guiding control: PD-104L80, PD-204L150, PD204L200, PD-403L150, PD-403-L200, PD-803L-200,Customers can choose according to actual materials and applications;

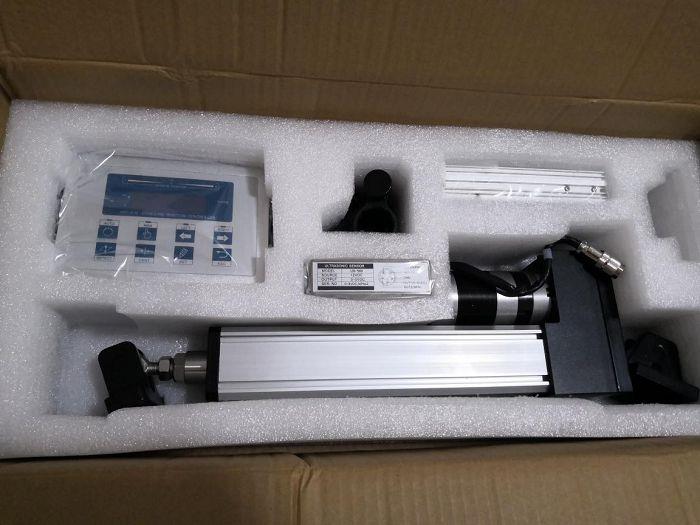

Packing:
