Slip-type air-expansion shaft, as the main component of the slitter, to complete the slitting of various materials, if during the winding process When the material thickness is uneven and the machine tension control is unstable, the material roll will be affected and the...
The shaft of the slip shaft is basically welded by the shaft and the shaft head. We create a steel forging with a precision forging equipment. The forged core shaft is stable and stable, has a long service life, and is accurate in winding materials and high in running speed....
A main shaft structure of a slip shaft and a slip ring thereof, the slip shaft comprises a main shaft body, a plurality of roller units and a plurality of air rising units, and the roller unit is arranged at the outer circumference of the main shaft, and can provide various...
The working principle of the slip shaft is: the center air pressure slip shaft is a tension adjustment type slip shaft, and the slip ring is independently slipped. Taking the precision air core ventilation main shaft as the core, the piston is used to push the piston in the...

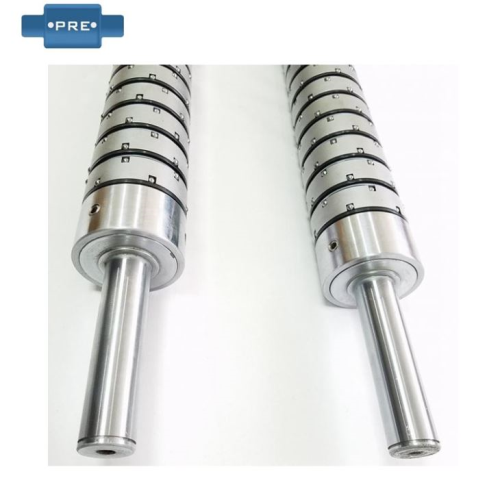

The ball type sliding shaft belongs to the mechanical locking type central air pressure sliding shaft, which is suitable for the receiving and unwinding system on papermaking and printing and packaging equipment. The center spindle has a nozzle hole and a vent hole, and a...

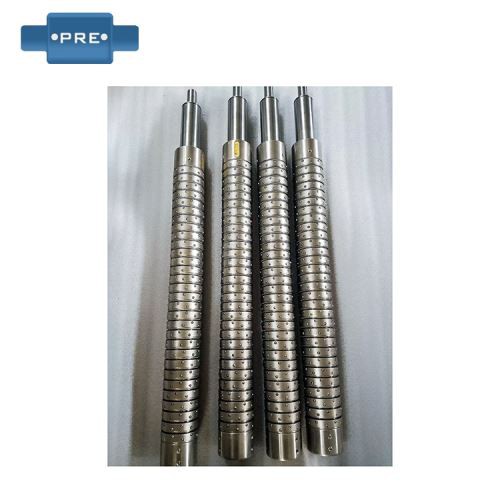

Ball type slip shaft product introduction: Center air pressure and side pressure key slip ring: -3" main body outer diameter φ75, maximum operating diameter φ77.8/max 1. Applicable inner diameter of the die: φ76.2±0.2 (composite die of paper tube, aluminum tube, plastic...

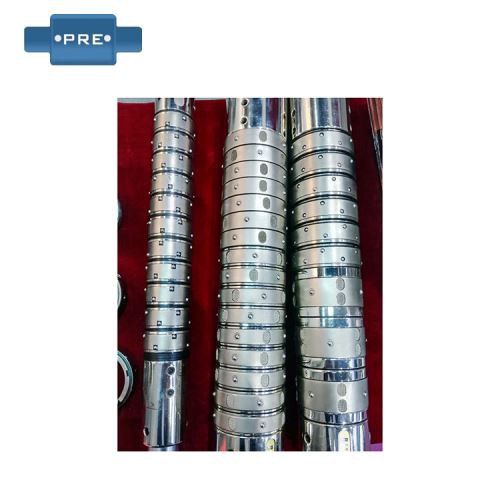

1.3” differential shaft is consist of various 3” friction rings,please see pictures;
2. Applicable inner diameter of paper tube=Φ76mm

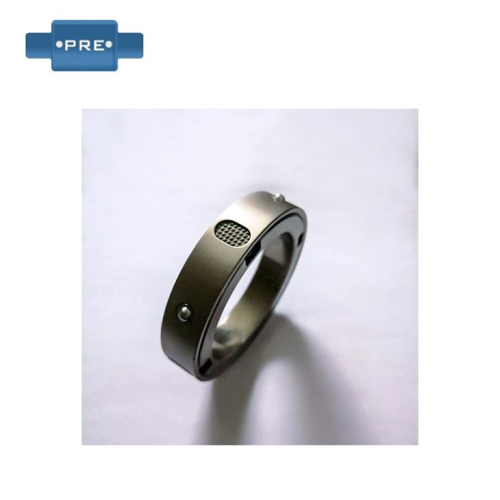

3. Standard friction ring’s width 25mm, other width: 25mm, 30mm, 35mm, 40mm, 50mm. Optional
4. Standard inner diameter of...

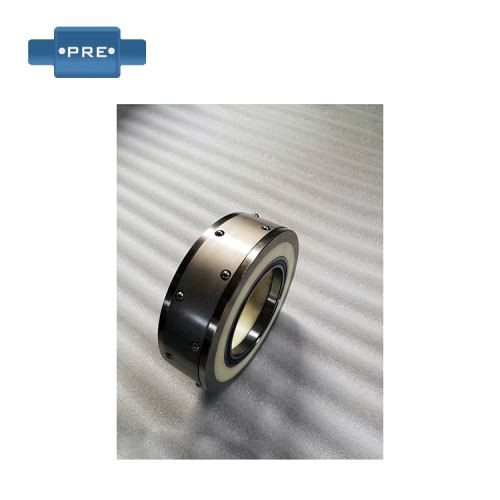

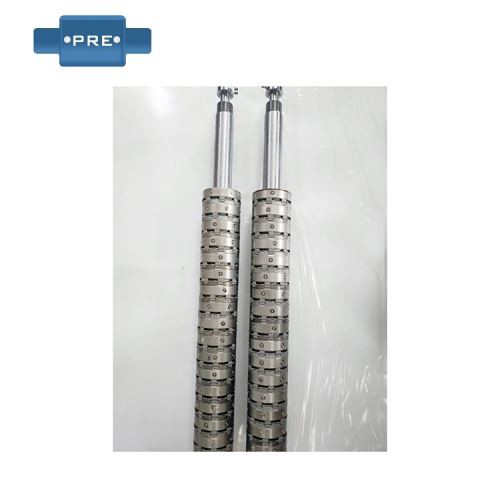

1.6” differential shaft is consist of various 6” friction rings,please see pictures;
2. Applicable inner diameter of paper tube = Φ152.4mm;
3.Standard friction ring width 20mm,25mm,30mm,35mm, 45mm, 40mm, 50mm;
4 Standard inner diameter of friction ring,...

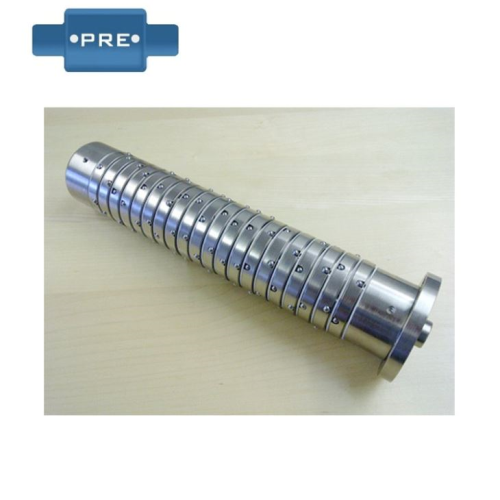

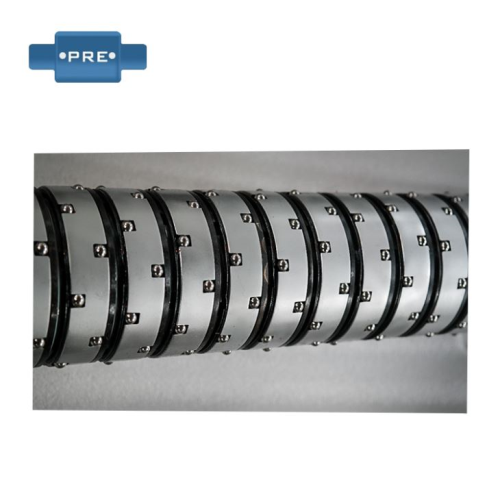

The sliding shaft structure is composed of a plurality of slip rings. When the winding operation is performed, the slip ring is controlled to slip with a certain slip torque value, and the slip amount just compensates for the generated speed difference, thereby accurately...

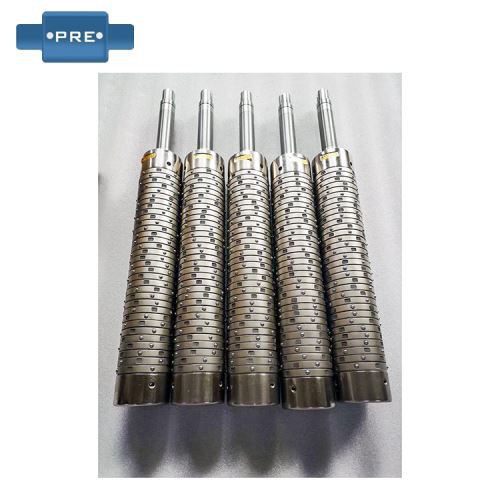

1.6”slip shaft is assembled by 6inch slip rings,please see pictures;
2. Applicable inner diameter of paper tube = Φ152.4mm;
3.Standard friction ring width 20mm,25mm,30mm,35mm, 45mm, 40mm, 50mm;
4 Standard inner diameter of friction ring, ID = φ60, other...
1) Applicable to the core (paper tube, aluminum tube, plastic tube or other material composite tube), standard inner diameter Φ76mm;
2) Inner diameter of friction ring Φ45mm
3) Friction ring width 40mm(standard), other width: 30, 35, 40, 45, 50mm,

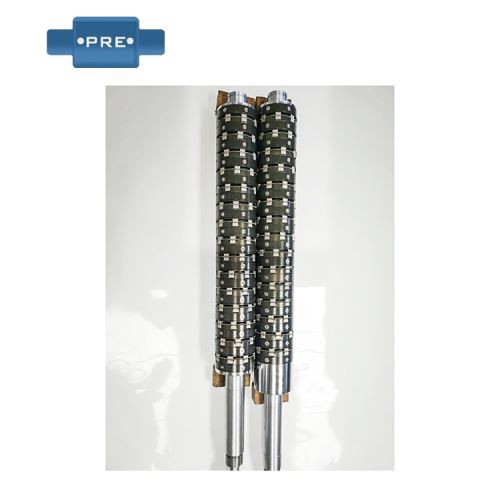

Everyone is asking what is the principle of the Nishimura sliding shaft.Here are some tips to share with customers. It is an important component on the lithium battery slitter (slitting machine), mainly used for reeling or rewinding, its main purpose is to manipulate the...
