Web Guiding Systems

Unwind Guide System
The coil materials in the web control device business refers to a sheet product such as paper, film, foil, fiber, rubber, or woven fabric. In order to eliminate the positional deviation of the coil during processing, ensure that the coil is accurately run at the specified...
Read More

Edge Guide Controller
The web guiding controller is the heart of the web guide system. PRE Alignment Controllers that comply with CE certification standards can provide the guide control you need to help your production line operate efficiently and efficiently.
Read More

Line Guide Controller
1.Thank you very much for your attention on the EPC-A12 servo web guide system! The system can connect a variety of different types of correction sensors;
2.And the pusher supports EPC edge and LPC line tracking, CPC alignment, SPC misalignment (snake) and other...
Read More

Ultrasonic Web Edge Sensor
The US-series ultrasonic sensor uses the principle of high-frequency ultrasonic linear propagation to detect the edge position of the coil. Compared with the photoelectric sensor, it is not affected by the transparency of the materials, so it is very convenient to use without...
Read More

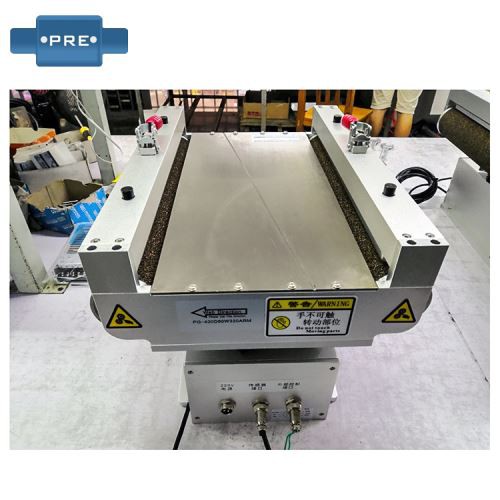

400mm Width Web Guide System
PG-400A web guiding system is used to guide all type of flexible materials automatically, which serves various application for all kinds of rotogravure printing machine,flexible printing equipments, laminators,cutting machine,film blowing machine.
Read More

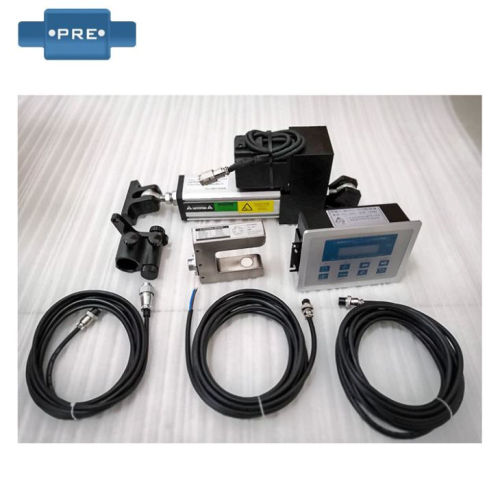

Rewind Web Guide Systems
Edge postion controller feature: Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports...
Read More

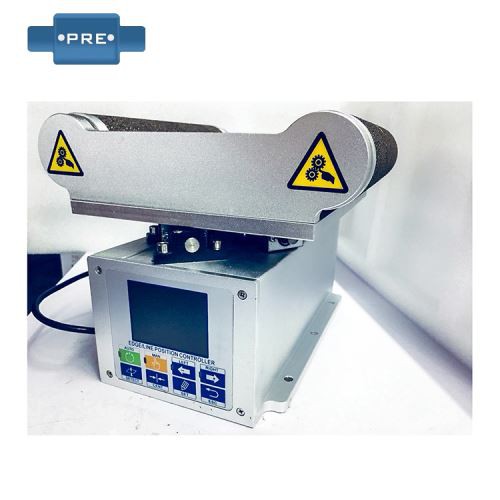

350mm Width Web Guide System
PG-350A servo motor web displacement guide,it is driven by brushless DC servo motor, combined with precision ball screw drive, compact structure, good mechanical rigidity, low inertia, high precision
Read More

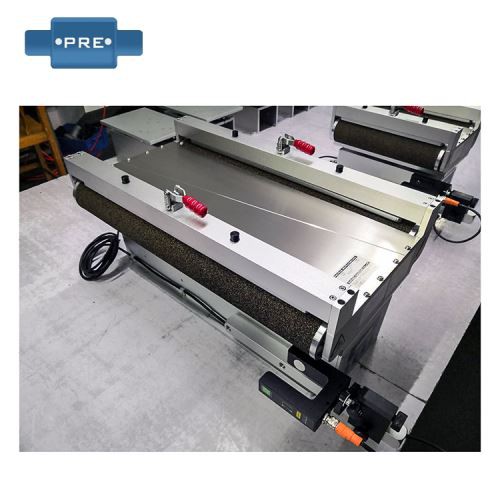

550mm Width Web Guide System
PG500A displacement web guide system, the coil width can reach 520mm (20.5′′), the maximum tension is 623N (140 lbf). It is in the case of narrow entrance and exit spans, the ideal product for edge guide,line guide & center guide.
Read More

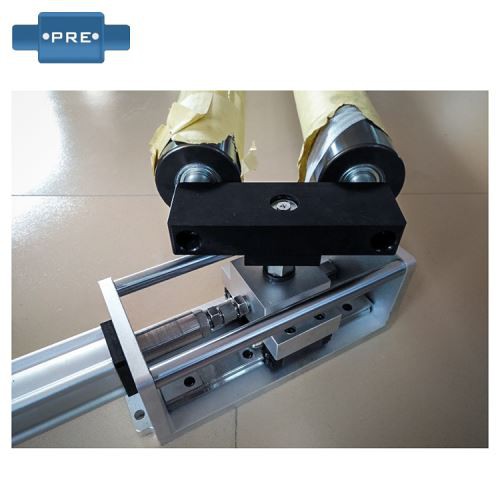

Steering Guide System
PRE Web Steering Guide System makes precise correction on materials via a long entrance span. This innovative web guide units corrects lateral errors in the web. Single or dual rolls are available with a maximum allowable tension of 5000N.
Read More

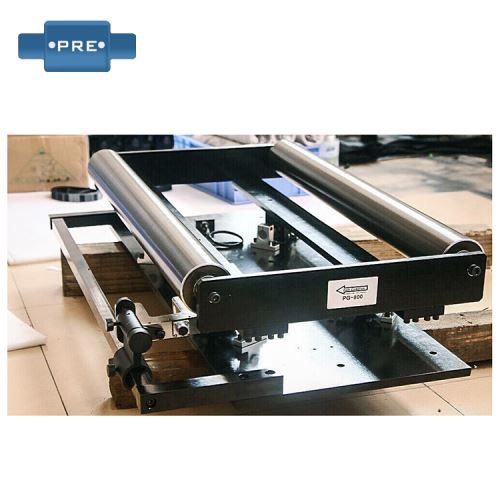

800mm Width Web Guide System
Using the electromechanical drive as the power, the PG-800A displacement web aligner system has excellent performance. With a low-friction ball bushing and a high-precision rotating rod design, the alignment frame maintains high-intensity continuous performance in the edge,...
Read More

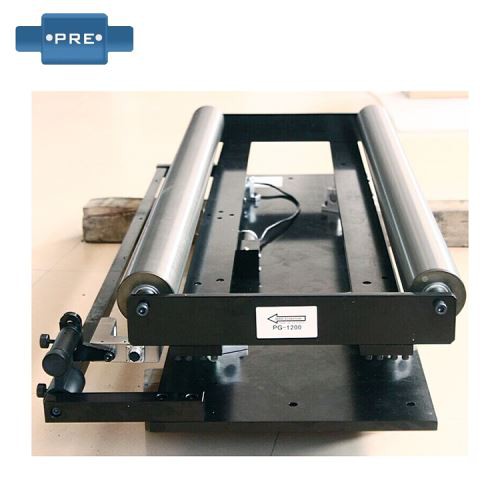

1200mm Width Web Guide System
The integrated servo guide system is a mechanical device for aligning the side error of the coil in the forward motion. The displacement guiding system is to realize the side correction of the coil by changing the span of the coil at the inlet and outlet.
Read More

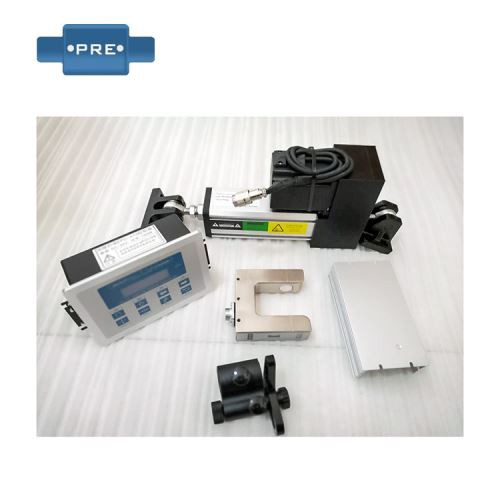

Rewind Guide System
Rewinding Web Guiding means that different materials are wound up in different mechanical equipment, for example, plastic, film paper, to ensure that the edge is neat during the winding process.
Read More
