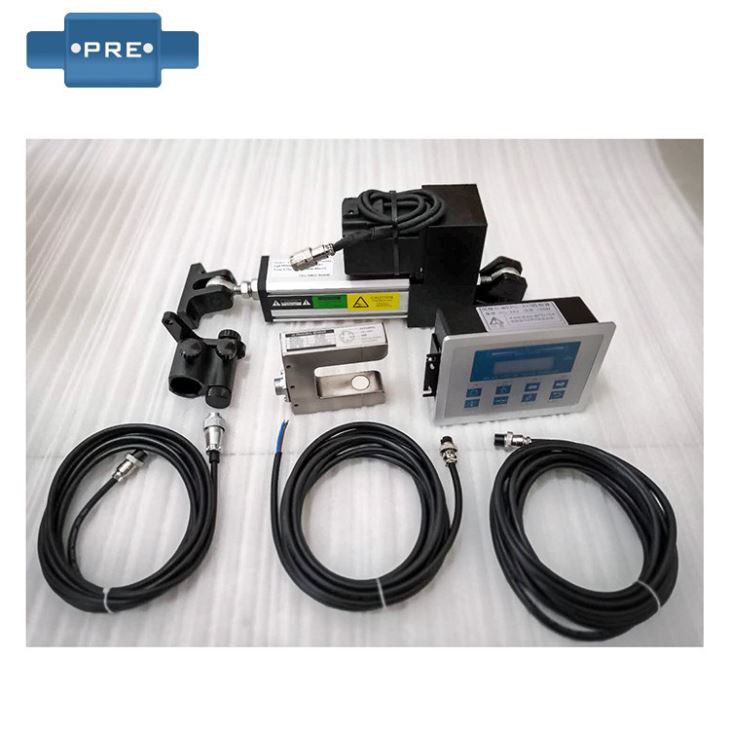

Rewind Web Guide Systems

Edge postion controller feature:



Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and center-alignment mode.



Edge postion controller function:



1. support three operation modes: edge-following, line-following and center-alignment.

2. support photoelectric sensor, ultrasonic transducer and CCD Sensor

3. detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances

4. automatic travel measurement, no need to limit the switch mechanically.

5. no overshot integral variable PI algorithm, high accuracy, fast reaction and less error.

6. 0.5msec super-speed of responding

7. analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second

8. adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal

9. DC servo motor to push the ball screw

10. power-down memory of all the parameters at any states in the system

11.store 10 groups of parameters from different material, convenient and efficient switchover of material

12. Simplified Chinese/ Traditional Chinese /English for menu operation

13. humanized operation, fast, simple and convenient

14.support Modbus and PLC/Human-computer networking control



Edge postion controller data:

Control Method	DC Servo Driver
Power	DC 24V /5A
Control Input	DC 0~5A
Control output	24V, PWM
Response time	0.5 mS
Environment temperature	-10~60°C, below RH90%
Weight	1.2 kg

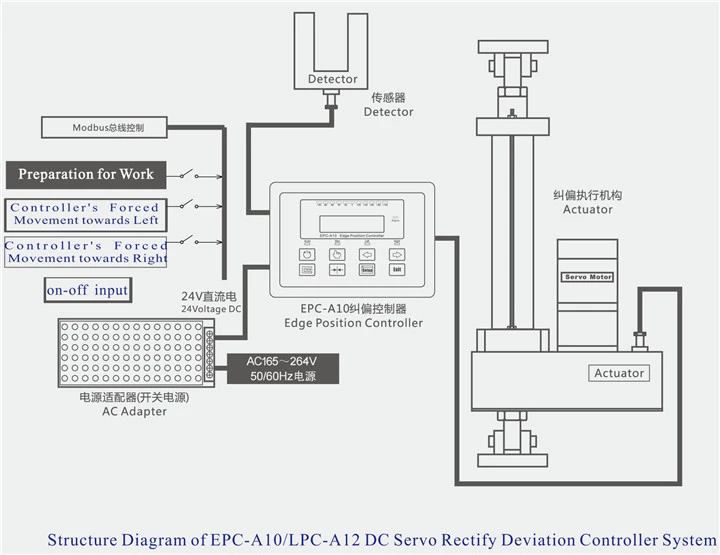

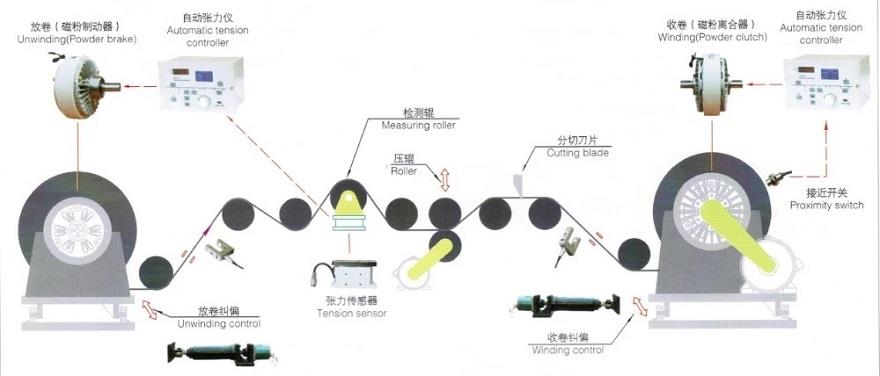

Edge Position Control system:

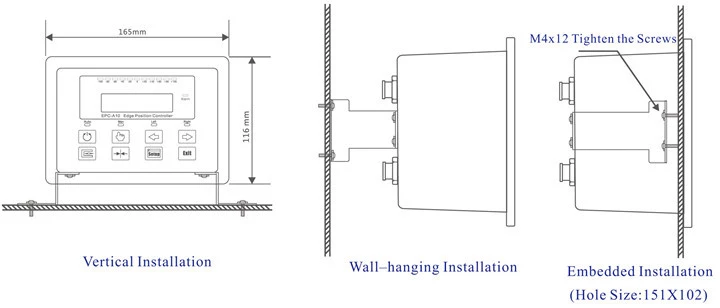

Installation :

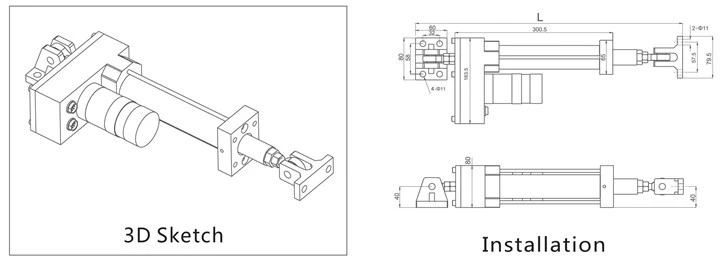

Servo Motor Linear Driver Parameter:

Model	Travel	Thrust	Pushing loading	Max. driving speed
PD-104L80	80mm	100kg	1000kg	40mm/s
PD-204L150	150mm	200kg	2000kg	40mm/s
PD-204L200	200mm	200kg	2000kg	40mm/s
PD-403L150	150mm	400kg	4000kg	30mm/s
PD-403L200	200mm	400kg	4000kg	30mm/s
PD-803L200	200mm	800kg	8000kg	30mm/s

Order Details

Item Name	Pivot Web Guide Systems for unwind and rewind
MOQ(Minimum Order Quantity)	1Pc
Lead time	3-5 days after receiving the deposit
Calculated Weight	Depend on model set
Package	Carton/Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
