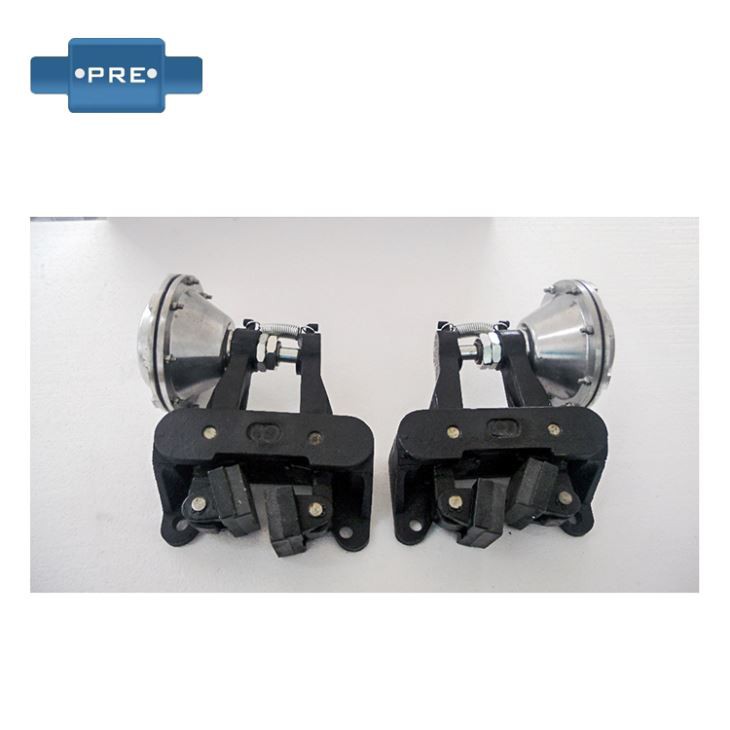

DBH Air Disc Brake

Features:

The DBH type pneumatic brake utilizes air pressure adjustment to adjust torque over a wide range and is suitable for emergency braking and tension control. With the manual brake, the compression spring can be braked for a long time without air pressure, and the necessary torque can be arbitrarily adjusted.

The air disc brake is for horizontal-type installation, it can provides approximately 2 times of braking powder than vertical installation.

Add the expandable shrapnel to guarantee the brake balance, The friction part is easy to replace, and it does not contain any asbestos, To control the deceleration of moving parts for small and medium powers, the best solution is the combination of a brake disc with one or more pneumatic calipers.

Order Details
