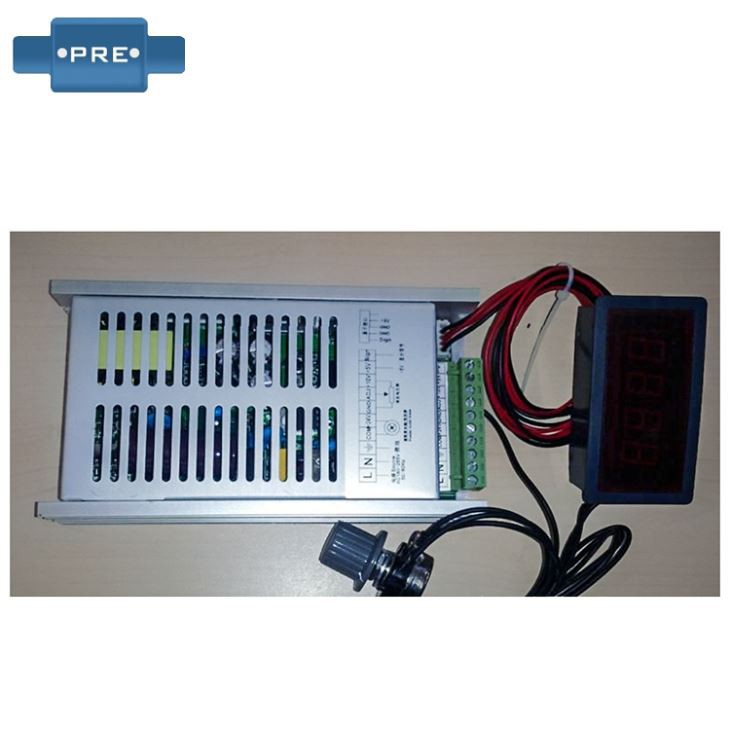

PAU-4A Tension Power Amplifier

The power amplifier is used in combination with the closed-loop type tension control unit to amplify the output signal or such control unit, and to apply the power source to the excitation coil of clutch / brake.

Send Inquiry Chat Now

Product Details

Power	AC100~240V 50/60HZ 400VA
The Input Signal Additional Output	0~5V,0~8V,1~5V,0~Vmax (Vmax=0.5~8V adjustable)
Rated Output	DC24V 4A
Subsidies Output	DC10V 2A within 30sec
Control Mode	Voltage Feedback Control or Current Feedback Control (switchable)
Working Atmosphere	Ambient Temperature: 0~55°C Ambient Humidness: 35~85% Vibration: 0.5mm (maximum 2G) Environment: Not allow corrosive gas, dust and rainwater
Installation Mode	Panel Install
Weight	About 0.5kg

1. Powered by high-power switching power supply

2. using pulse width modulation, low heat, high efficiency

3. external 0~10V control output 0~24V, 4A Max

4. automatic overcurrent protection, stable and reliable

5. can be equipped with a meter to display current or output voltage

Order Details

Item Name	PAU-4A Tension Power Amplifier
MOQ(Minimum Order Quantity)	1Pc
Lead time	3 days after receiving the deposit
Calculated Packing Size	15cm10cm10cm, 1kg/Pc
Package	Carton
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
