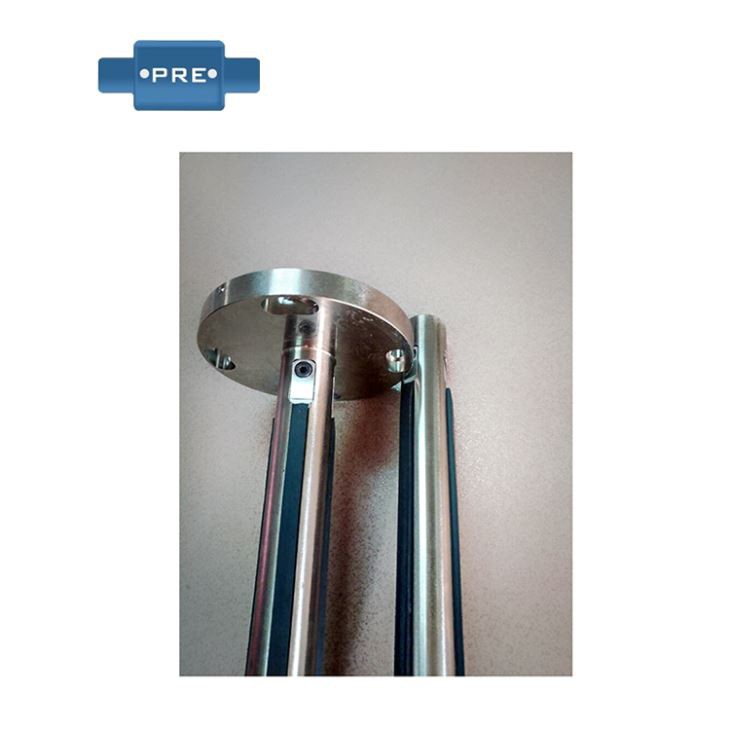

1 Inch Multi Bladder Type Air Expanding Shaft

PRE 1inch air shafts are used in the producing processes for fitting into a core onto which materials such as fabric, nonwoven and plastics are winded. An Expanding Shaft is designed so that, on fitting into a core, it can be easily expanded, thereby achieving a quick and firm attachment, it may also be rapidly deflated to facility easy withdrawal of the shaft after winding of product is complete.

Specification:

Expands instantaneously for fast roll mounting;

Grips cores securely without core or roll damage;

Used for unwind or rewind positions;

Manual or automatic rotary union air supply;

Positive collapse for quick roll removal;

Reliable performance;

Manufactured to your specifications to suit your equipment;

Ideal for plastic, aluminum or steel cores;

Urethane surface lugs are available to enhance gripping;

Order guide of 1 inch air shaft

Customers should specify model,accurate diameter(OD & CORE ID),dimension,the position of the gas nozzle,and the tolerance of the important size of the top of shaft.For any air valves on air shafts,when the gas nozzle is mounting,the out diameter of the top of the shaft should be more than 35mm;All formal drawing of overall dimension should be provided.After the confirmation of both sides,we will start production.

1.When can I get the quotation?

Normally we send quotation within 24 hours after receiving customers' inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.How should I place the order?

Please let us know the model number or drawings based on specifications for powder clutches, air shafts,air clutch, air brake, and safety chucks,etc.Then we can confirm price,and send you proforma invoice.

3.What about the lead time for production?

Usually it depends on the order quantity and the product models. For powder clutch, powder brake, tension controller,which is about 3-5 working days.

For safety chucks, air shafts which need about 15 working days.

Technique parameter

Order Details
