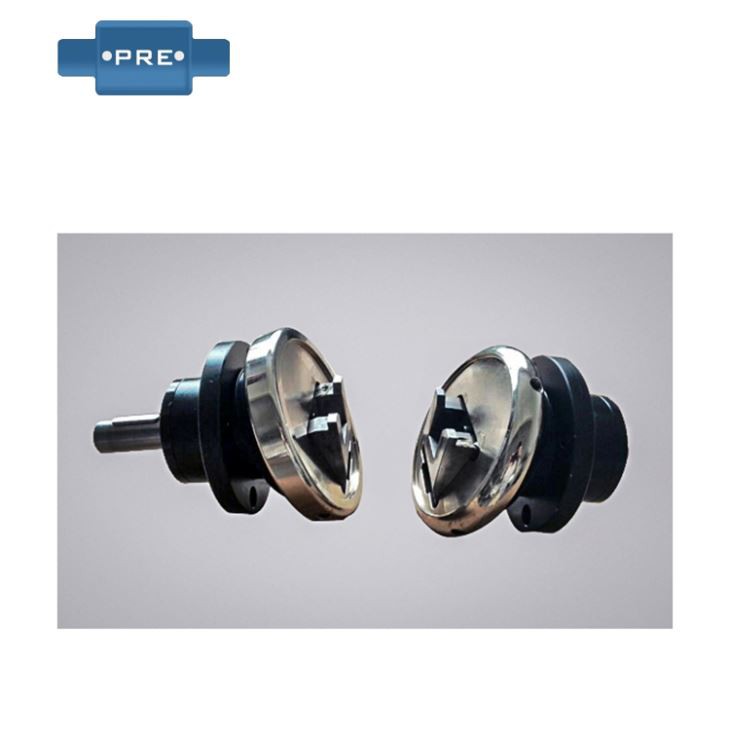

Flange Mounted Type Safety Chuck

FLOFLW Series Flange Mounted Safety Chuck

Introduction:

The safety chuck is a quick-connecting device that is applied to the receiving and discharging reels to save the operator time for loading and unloading. There is no need to move the structure of the machine every time when changing materials. The safety chuck provides the operator with the ability to quickly change materials when receiving and discharging. The time of the upper and lower materials is reduced, and the operator's work is more efficient to achieve cost savings.

1. The overall structure of the safety chuck is reasonable, the rigidity is good, and it can withstand large torque and eliminate the looseness during rotation.

2, accurate machining accuracy to ensure accurate positioning, the reel nozzle uses a special heat treatment process;

3. Provide replaceable VT-type reel holders, which greatly extend the service life of the safety collet;

4, the use of special alloy steel materials with superior performance, superior durability and durability;

5, the bayonet is nickel-plated, the bayonet is hardened and has high hardness and durability, which ensures good performance even under heavy load and high speed applications.

6. The reasonable tolerance of the bayonet parts ensures smooth and continuous torque transmission, which greatly enhances the safety of the machine.

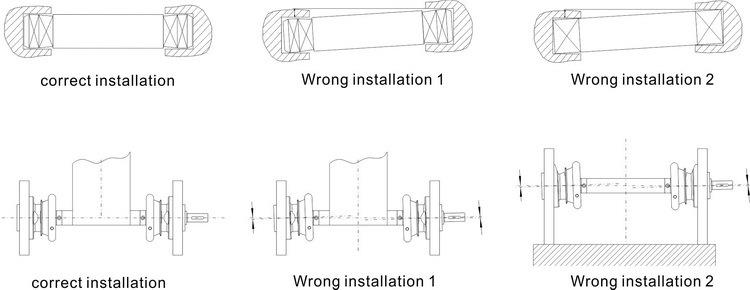

7. Simple installation, suitable for continuous sliding or high frequency use, buffer starting, with soft start characteristics.

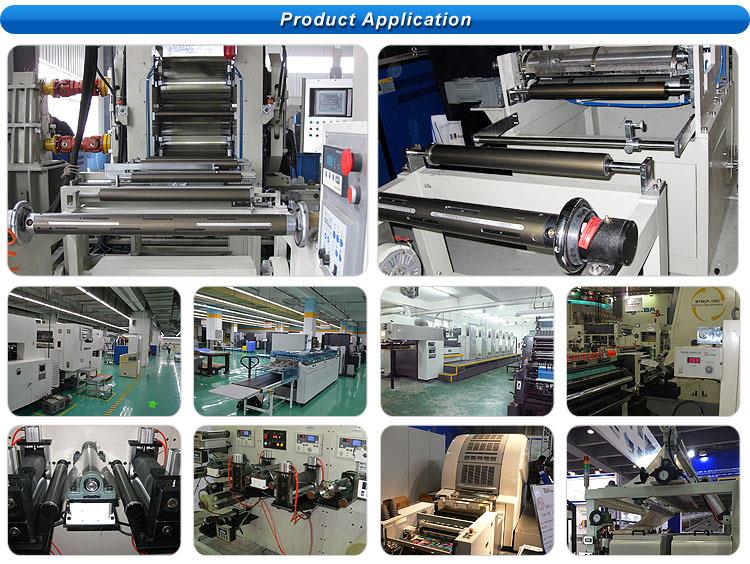

Application:

Order Details
