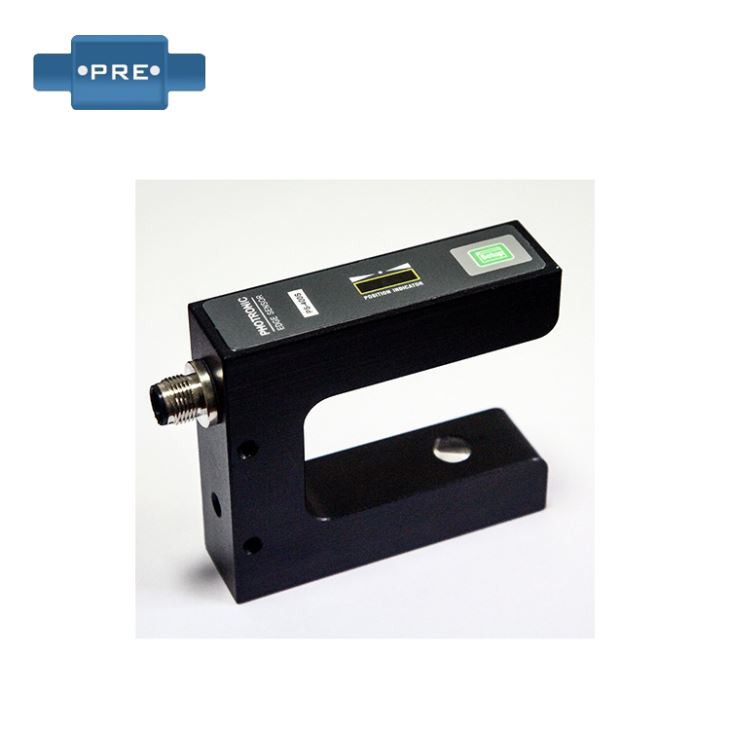

Photoelectric Edge Guide Sensor

PS-500 photoelectric sensor is a visible light-based anti-reflection sensor, suitable for the tracking of the coil,or the application on the transparent,breathable materials.

1. Support analog/switch output, can be used with EPC-10A or EPC-D12 correction controller

2. suitable for opaque, transparent film edge application or transparent film line application

3. visible light shot

4. 100K frequency carrier coding, not affected by ambient light

5. detection range 5mm, detection accuracy 0.02mm

6. correction accuracy ≤ 1mm
