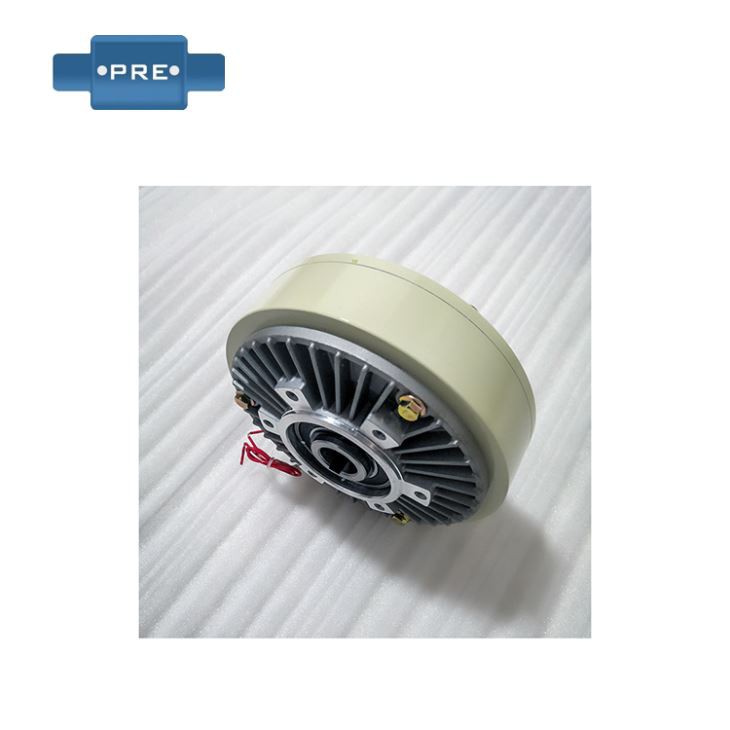

Hollow Shaft Inner Shell Magnetic Powder Brake

PRE-B2 Hollow Shaft Inner Shell Rotating Magnetic Powder Brake

Introduction:

The magnetic powder brake is a combination of a transmission unit (input shaft) and a driven unit (output shaft). The space between the two sets of cells is filled with granular magnetic powder (recessed about 40 microns). When the magnetic coil is not conductive, the torque will not be transmitted from the transmission shaft to the driven shaft. However, if the coil is electromagnetically energized, the magnetic powder will attract hardening due to the action of the magnetic force, and the torque will be transmitted between successive sliding. The powder brake is an excellent automatic control element. It uses magnetic powder as the working medium and uses the excitation current as the control means to achieve the purpose of controlling braking or transmitting torque. The output torque has a good linear relationship with the excitation powder current and is independent of the rotational speed or slip, and has the advantages of fast response speed and simple structure.

Magnetic Particle Brake Advantages:

1. Customers can easily carry out a wide range of control.

2. Can get a continuous sliding operation.

3. Stable torque can be kept.

4. No tweet sound. Action surface stick-slip phenomenon occurred in the friction mode,

but this does not appear, and will not send links to sound, so very quiet operation.

5. Can achieve continuous and smooth-driven state. As the coefficient of static friction and dynamic friction coefficient is almost the same, so a link is not completely a shock, they could be the load plus or minus the speed.

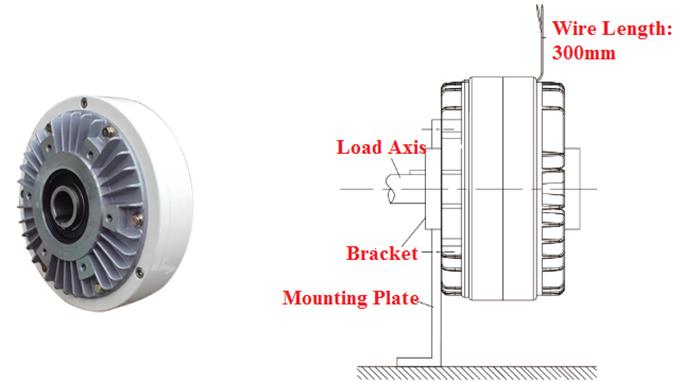

Magnetic powder brake installation example diagram:

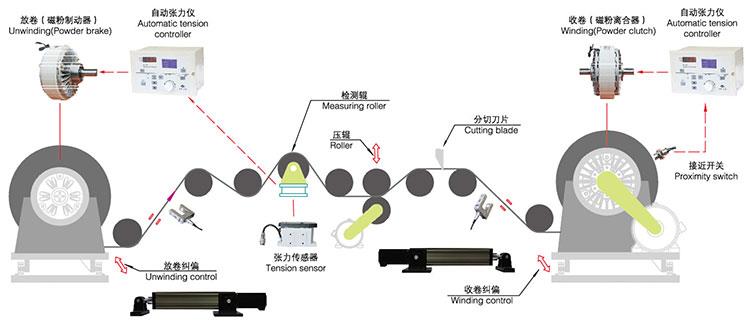

The Schematic Diagram of powder brake,tension control, web guide system and other parts on equipment.

Application:

Order Details
