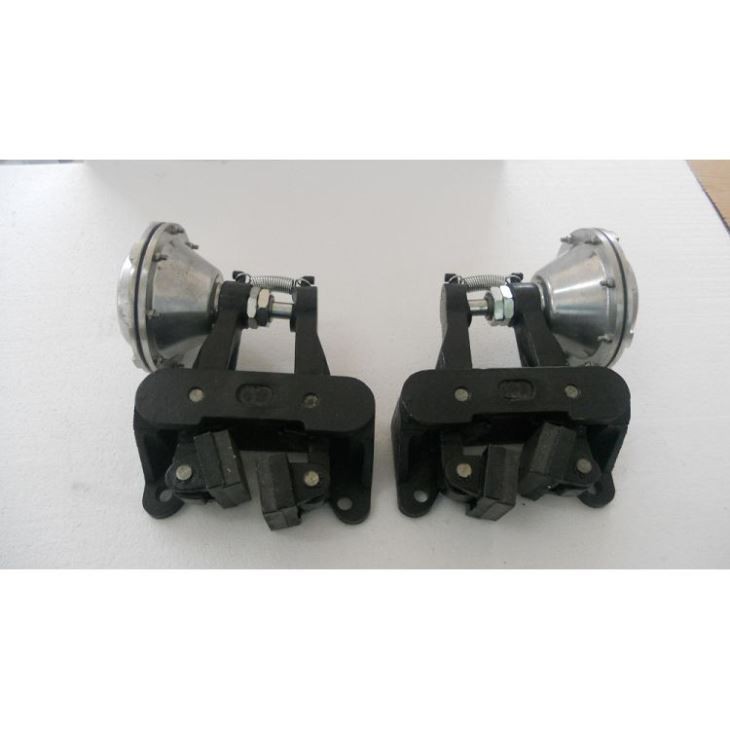

DBH-F Air Disc Brake

Features:

It is especially suitable for safety protection situations. It is braked by a brake spring, and the air is opened. When the power is cut off and the air pressure is low, the air disc brake is automatically performed, and the responsiveness of the connection release is good. The simple yet robust construction has good reliability and long service life.

High frequency durability and stable performance

Most of the surface of the disc is directly in contact with the surrounding air, and the heat is easily dissipated. After the brake, the surface temperature of the disc is not high, the performance is stable, and the sensitivity is high due to the required amount of oil or compressed air.

Adjustable torque limiter

It can be used as a fixed tension brake by adjusting the air pressure.

No adjustment required during use, easy maintenance.

The wear of the friction plate is inevitable, and the pneumatic cylinder and the hydraulic cylinder itself have an automatic compensation function, and it is not necessary to adjust the friction plate gap.
