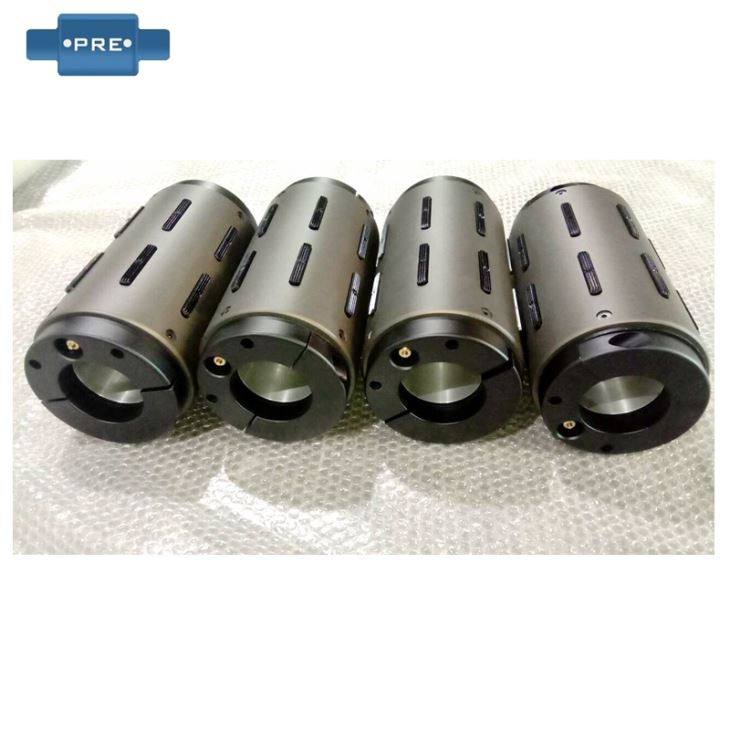

3 Inch to 6 Inch Air Shaft Adapter

The air shaft adapter is also called pneumatic adaptor or core adapter, it is a rewinding and unwinding roll mainly used for coating, printing, rewinding, paper making, plastics,converting and other related machines.

Especially in the case of three-inch, six-inch air shafts frequently used in light loads, it shows its superiority. Two pneumatic adapters can be used instead of the six-inch air-up shaft, which is light in weight and easy to replace.

Structural features:

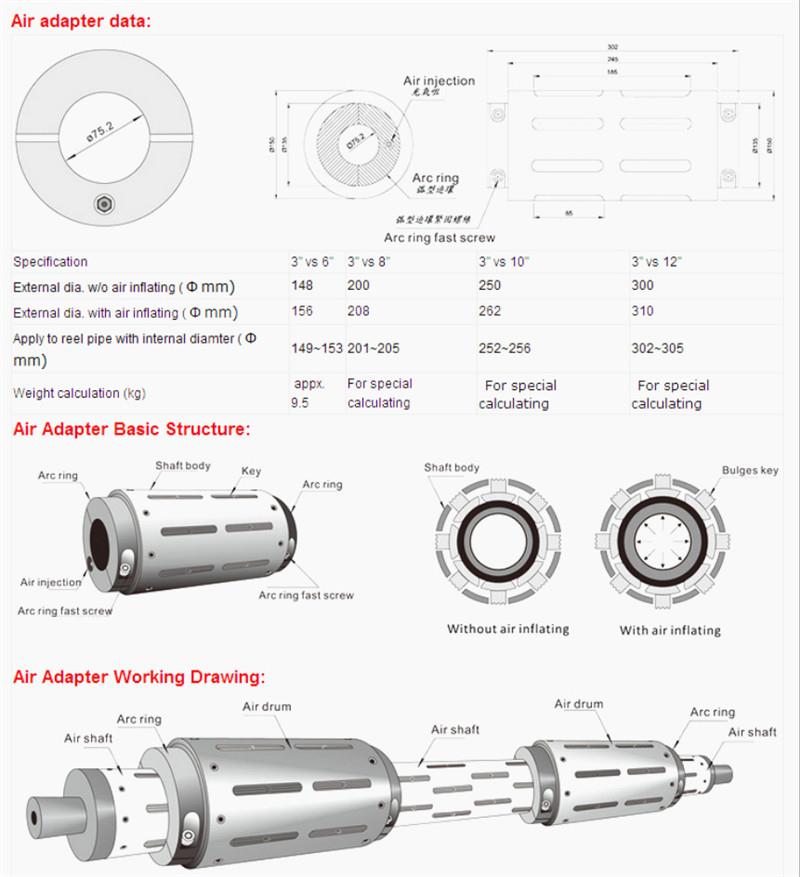

The core adaptor mainly comprises a front sleeve, a rear sleeve, a cylinder body, an inner tube, an air bag, a convex keyboard and the like.

The riser material is made of high quality aluminum and the surface is oxidized.

Equipped with high quality bladder and quick inflation nozzles.

Good sealing effect, long service life and convenient maintenance.

Technical Parameters:

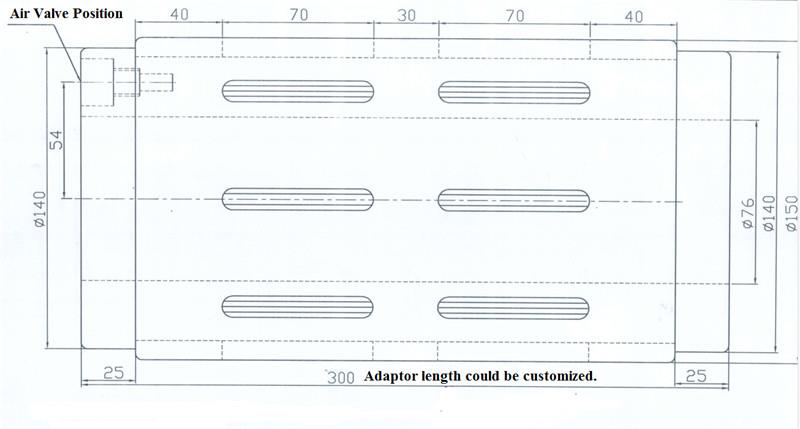

The outer diameter of air shaft adaptor is Φ150mm, after expanding,the outer diameter is Φ157mm, the inner diameter of paper tube is Φ152.4±0.2mm, adaptor length is 300MM usually, and special size can be customized.

Adaptors for all brands of air shafts and chucks

Core stops available

Different designs to fit each structure and application

Reduces time on loading & dismantling rolls

Load high weight,quick web speeds and torque level

Technique parameter

Packing:

Order Details
