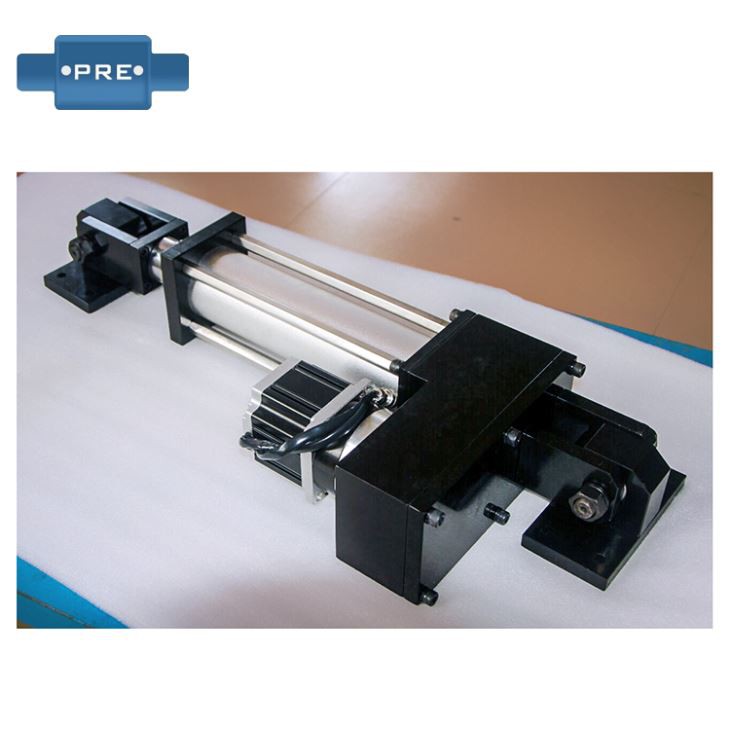

PD803L200 Web Aligner Actuator

1) High-performance vector drive servo motor,fast response speed,there is toque control and speed limit,acceleration and deceleration.
2) Actuator with servo drive ball screw,small noise and maintenance-free.
3) Actuator with encoder and absolute linear position feedback,can adapt to different mechanical stroke without limit switch and thelimit position never change.

Send Inquiry Chat Now

Product Details

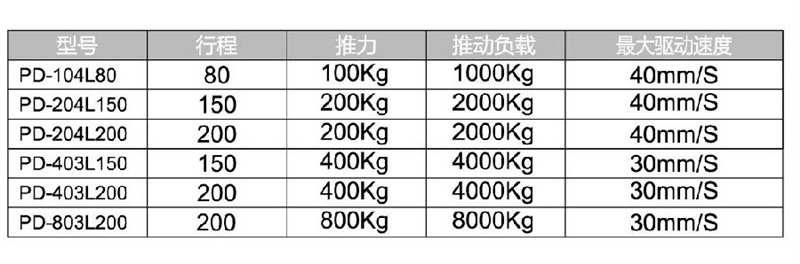

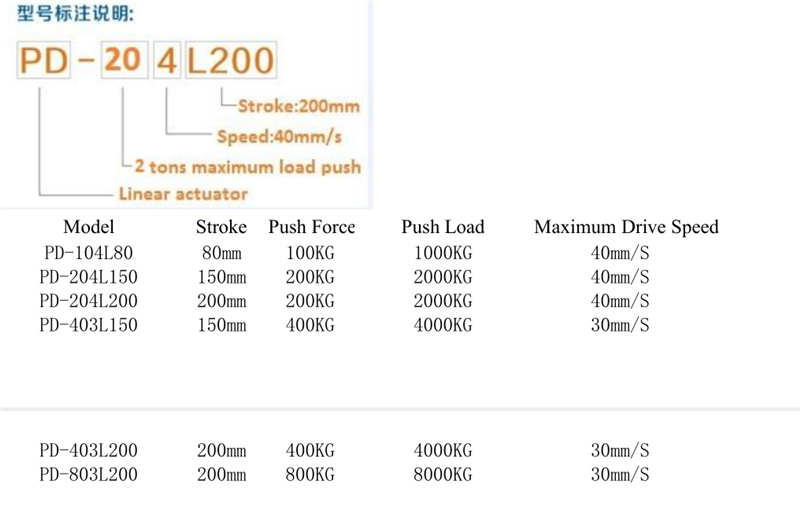

Servo Motor Actuator Parameter

Model No	PD-803L200
Max Thrust N(Kgf)	800(800)
Max Push Load	8000KG
Rod Stroke	200mm(±100mm)
Max Driving Speed	40mm/s

1) High-performance vector drive servo motor,fast response speed,there is toque control and speed limit,acceleration and deceleration.

2) Actuator with servo drive ball screw,small noise and maintenance-free.

3) Actuator with encoder and absolute linear position feedback,can adapt to different mechanical stroke without limit switch and thelimit position never change.

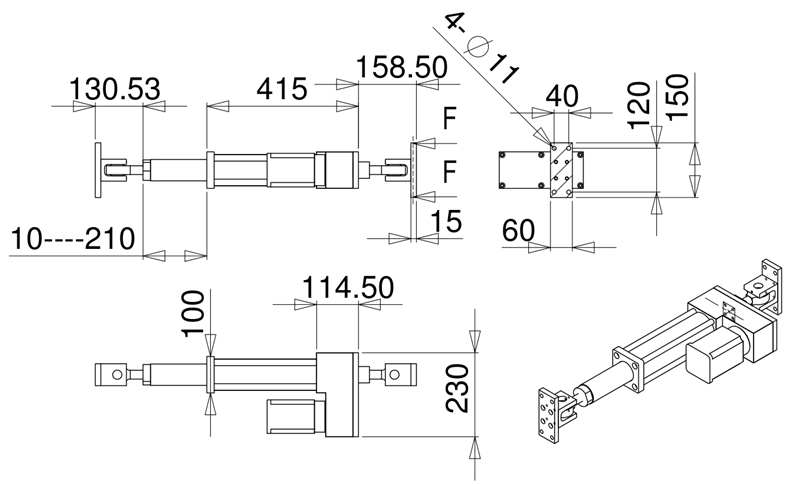

Drawing:

image005_副本

Order Details

Item Name	PD-803L200 Web Guide Actuator
MOQ(Minimum Order Quantity)	1Set
Lead time	2-3 days after receiving the deposit
Calculated Packing Size	60cm20cm15cm,25kg/set
Package	Carton/Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT, L/C,Western Union
Country of Origin	China
