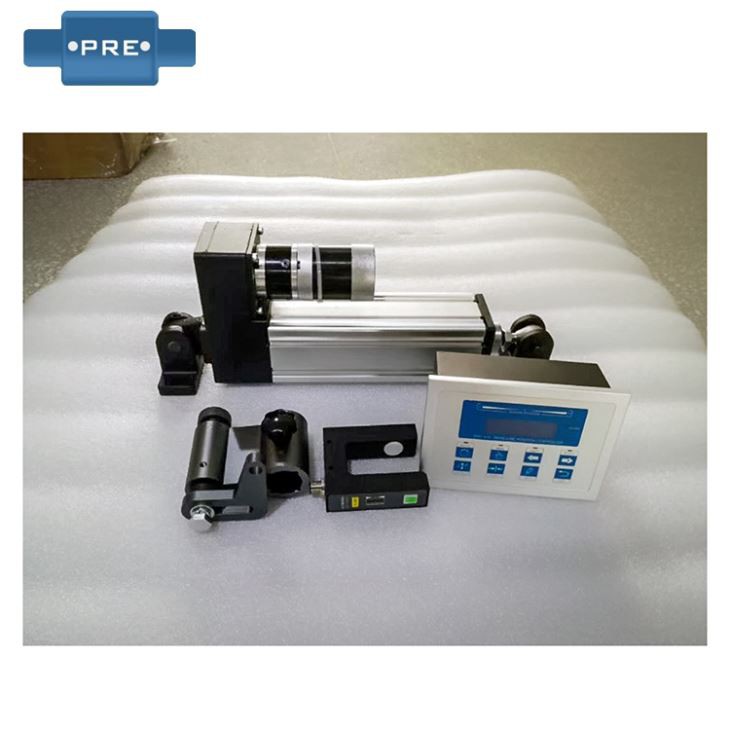

PD104L-80 Web Aligner Actuator

Most of PD-104L80 parts are die casting production, precision machining, compact and reasonable structure, beautiful appearance, good mechanical strength, complete connection accessories, core materials and some materials are made of high quality foreign materials to ensure quality. Years of use proves that the installation is convenient, the transmission is reliable, the operation is stable, the wear is small, the service life is long, and the product is very mature.

1. The base structure, free to move 15 degrees in the vertical direction

2. Precision ball screw

3. With a limit switch, midpoint switch

4. Working voltage Ac220v

5. Servo motor

6. Drive stroke 80mm

7. The maximum thrust 1KN

8. Driving speed 10mm / sec

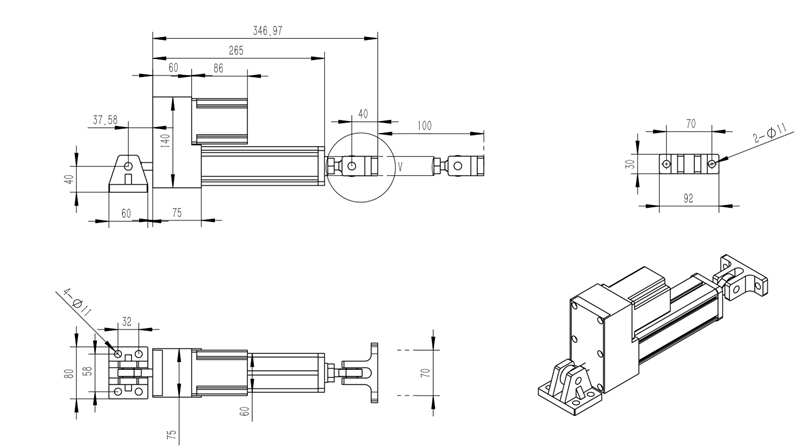

Drawing:

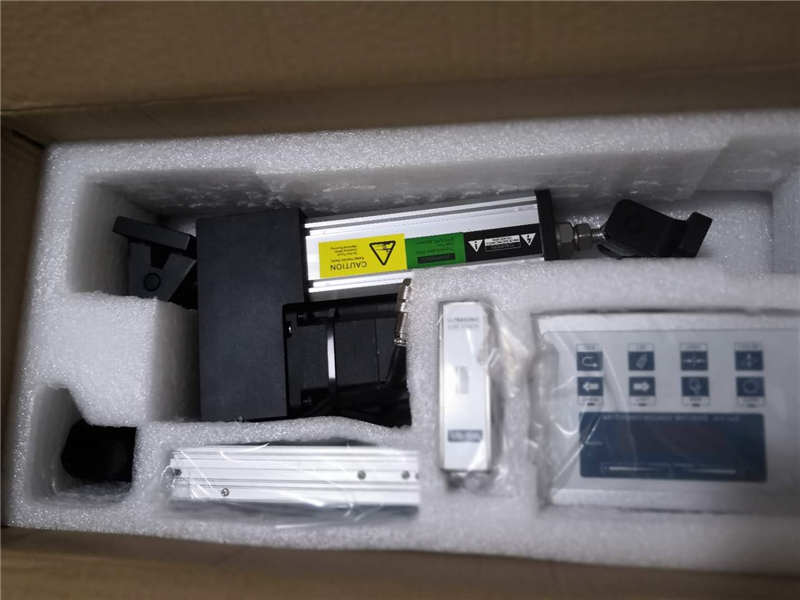

Packing:
