Manual Tension Controller

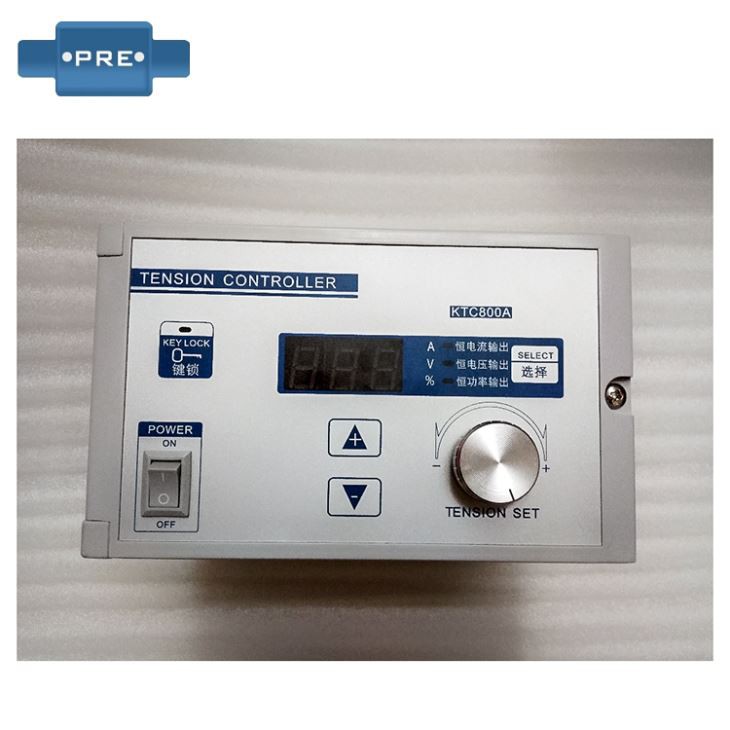

KTC800A Manual Tension Controller

KTC800 manual tension controller is composed of high-speed microprocessor and high-power switching power supply. It can work in three modes of constant current, constant voltage and constant power (constant torque). It can automatically compensate the thermal attenuation of clutch/brake and stabilize the torque output. reliable.

Features:

1.Using adaptable switching power supply

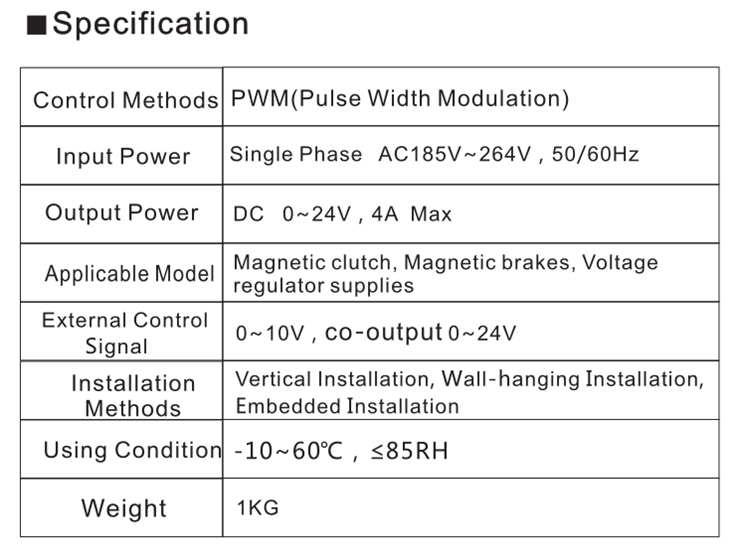

2.Input power AC185~264V and output power DC0-24V/4A.

3.Using PWM(pulse width modulation) , high efficiency.Four control options:

4.Constant current output; Constant voltage output; Constant power output ;

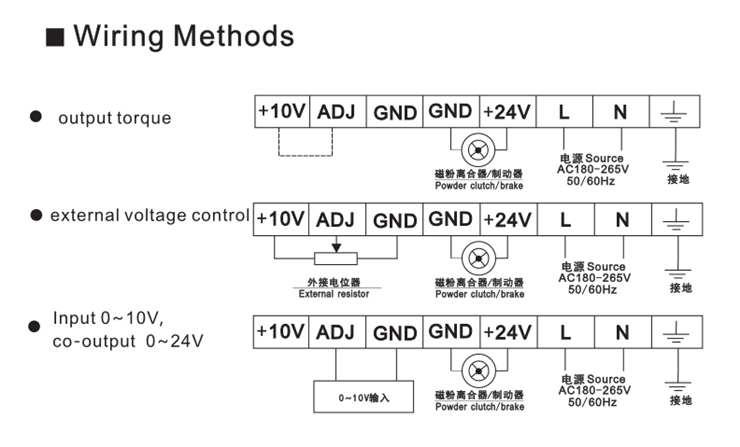

5.External potentiometer connect.

6.Using buttons and pulse potentiometer to adjust the tension.

7.Automatic over-current protection.

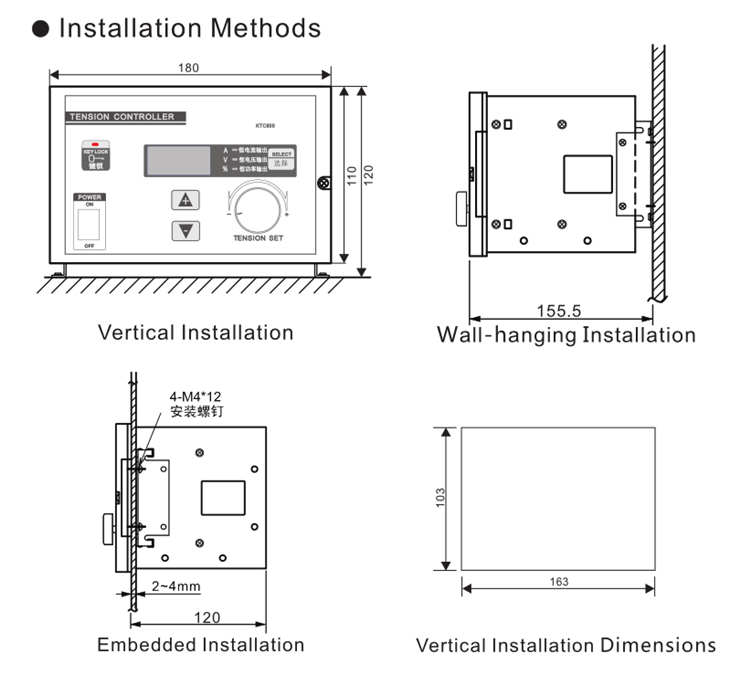

8.Multiple installation methods, very convenient and practical.
