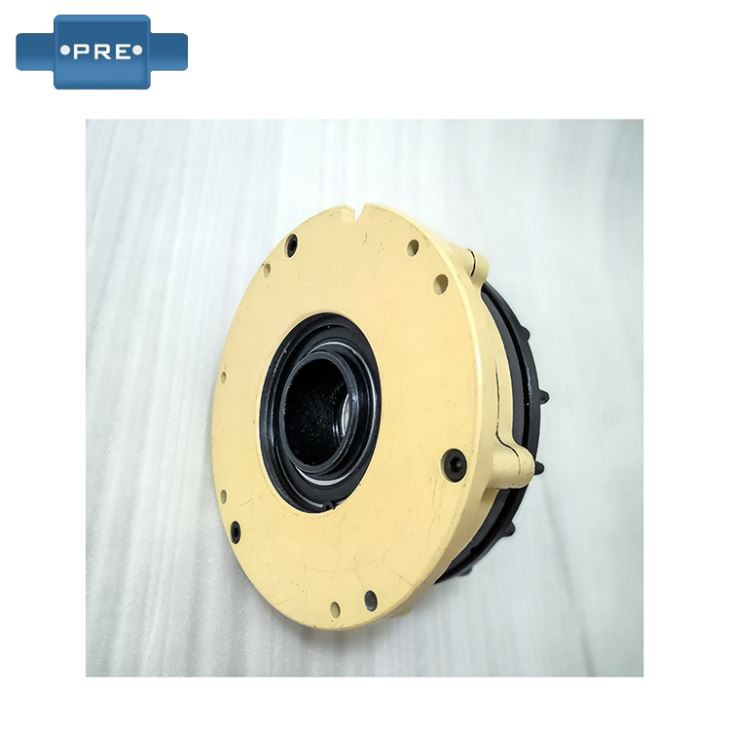

NAB Air Brake

NAB Pneumatic Brake

Features:

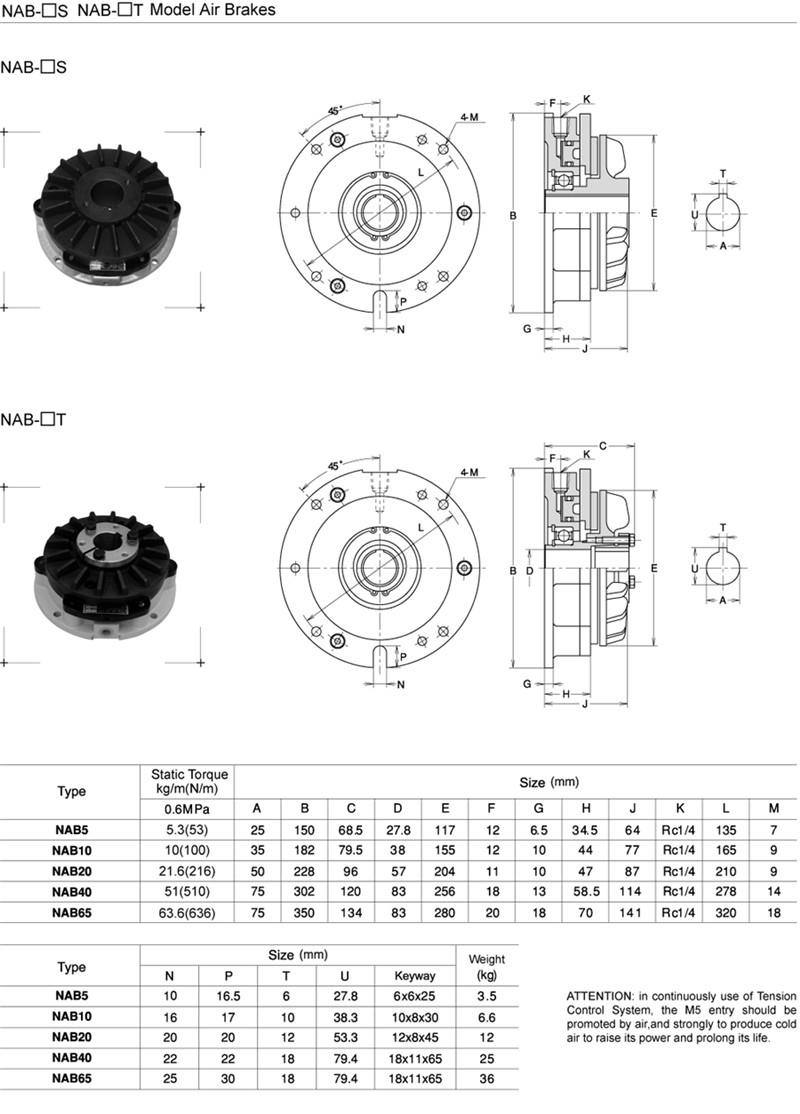

1. The NAB (standard type) air-pressure through-shaft pneumatic brake is mounted on the shaft by a conical shaft bushing with a wedge, and has a structure in which the friction plate can be exchanged while maintaining the mechanical equipment as it is. The heat generated by friction is dissipated by a cooling fin mounted on a disc with a hub, and the torque ranges from 2 to 36,500 N.M.

2. The friction plate is a double-cut split type:The friction plate can be exchanged by taking out the countersunk screw with a screwdriver through the hole with the hub disk.

3. Smooth stop and simple:Adjust the air pressure to make it stop smoothly.

4. Suitable for high frequency, continuous slip use:

Due to its large heat capacity and excellent heat release, it is also durable under extreme conditions such as high frequency and high load. Also, it can be used idle.

5. Extensive torque adjustment range:

Torque-reliable air pressure is adjusted over a wide range.

6. Friction plate has long service life and easy exchange:

Since the friction plate is thick, air pressure brake has a long service life and can be exchanged while maintaining the mechanical equipment as it is.

Application field of air brake

Use and target equipment models: robots, packaging machinery, rubber machinery, food machinery, printing machinery, sanitation vehicles, sweeping vehicles, water pump drives, motor drives.

Brand Introduction

The company "PRE Converting" is one of the early companies in China to develop pneumatic clutches and brakes for power transmissions. The gear-type pneumatic clutches and through-shaft clutch brakes are widely used in various industrial machinery. In order to adapt to the rapid development of industrial machinery and equipment industry, the company has been committed to the research and development of new products. In particular, the company always remembers that the shortcomings of clutches and brakes will cause huge losses to users. Therefore, since the establishment of "PRE Converting", we have been striving to produce high-quality products. After years of hard work, our clutch & brakes have been used in various industrial machinery and marine industries. Our purpose is very simple. As long as our products can help our customers, we will try our best to listen to customers' requests and suggestions and look forward to your cooperation.
