DBK Air Disc Brake

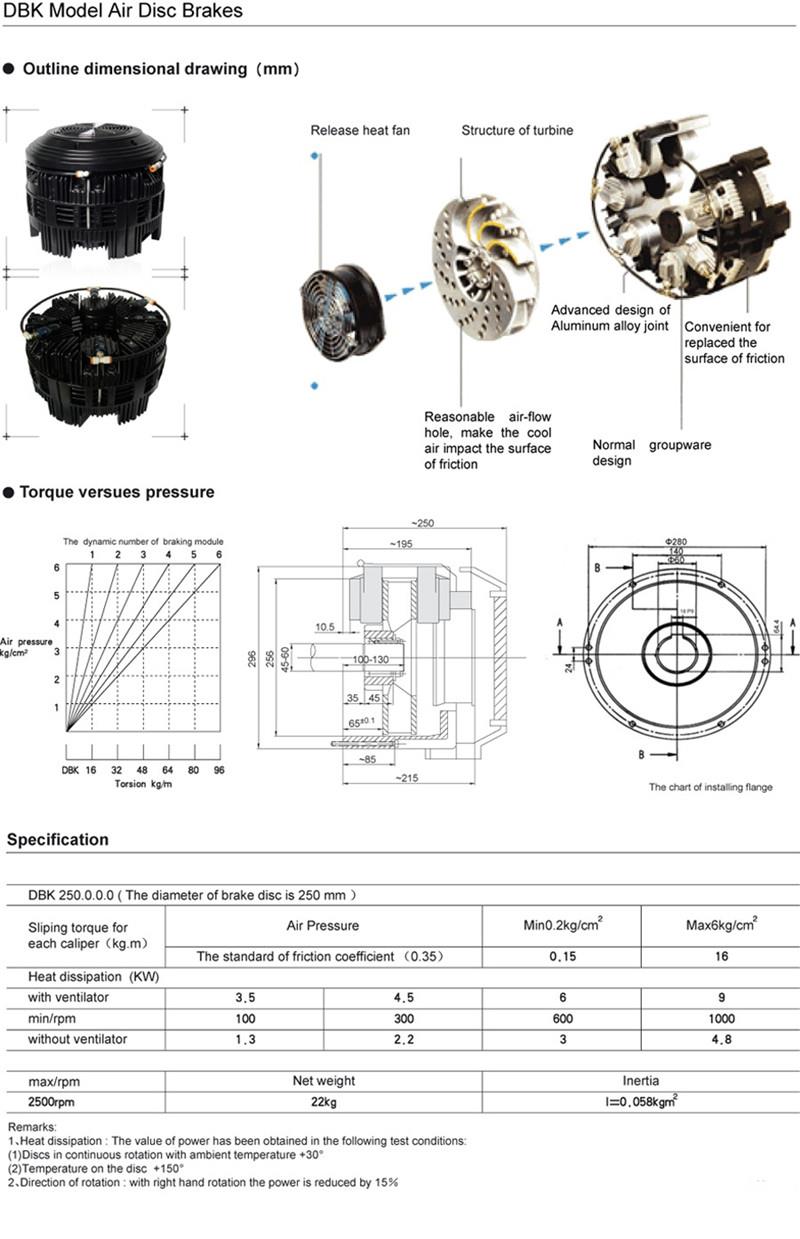

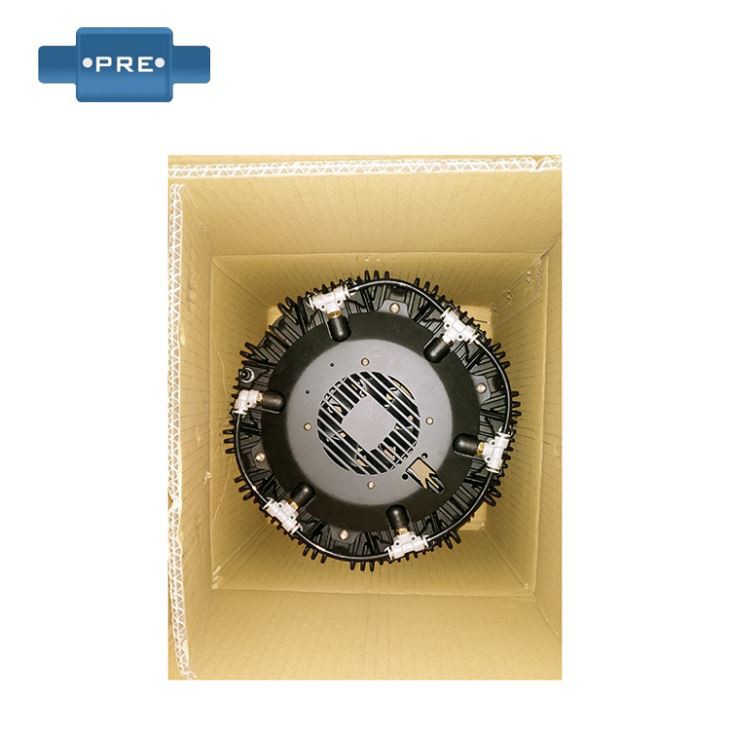

The DBK Air Disc Brake is used in high accuracy tension control situation, can supply many kinds of torque control, has a great ability of radiation,the air disc brake can have a widely application in processing of industries, as the packing, tissue paper and corrugated paper. The friction disc of chucks brake can choose at will, convenient for the installation and the maintenance, the pneumatic brake can use with the user brake disc.DBK air brake already available in on equipment of brand-new design and also equipment transformation. This model can supply the type with cooling fan or not.

Working Principle

Both the air pressure disc brake and the air pressure disc clutch generate axial thrust from the piston on the cylinder to form a torque transmission. Once the cylinder is relieved, the spring will push the piston back to the initial position and the torque will disappear. When a brake with a spring brake is used, the axial thrust required for the generated torque is generated by a spring, and the brake can be released by applying an appropriate air pressure to the piston.

Applicable to working machinery, construction machinery, steel rolling equipment, wire yang, stranding machine, coiling yang, cable equipment, gantry crane and crane, paper-making Yang equipment, ship heavy-duty truck, trimming, discharging, positioning , tension control and other occasions.

Features

1. Wide-range torque control

It adopts modular design, and installed sets of brake module are devised by real needs, in which torque control can reach larger limits.

2. Free of change

Installed sets of brake module can be changed freely even after installation.

Brake module can conduct flexible installation and control, and with changing movements, torque control range can be larger.

3. Well heat dissipation

Whole ventilated structure ensures unblocked airflow.

Pulley-structure brake disc greatly dissipates the heat generated from itself.

It works better to add a cooling fan.

4.Simple installation and great response

It characterizes in high torque and high accuracy, which can be applied to all kinds of conditions, including tension control, urgent brake and position control.

5. Quickness and convenience of changing non-asbestos friction plate.

If adds air pressure, pushes piston, it can squeeze brake disc from both sides of friction pad.

It has sensitive response to changes of air pressure, and has highly accuracy in controlling the torque.

The piston's sealed object is one kind of non-oil pouring.

Each top of brake module has manual air pressure valve, with pushing forward the opening, pushing afterward the closing. If needed torque changes greatly, movement of brake module can be changed.

The total thickness of friction pad is 10mm, and its maximum abrasion is 6mm. If it reaches maximum space, take down the two frameworks.
