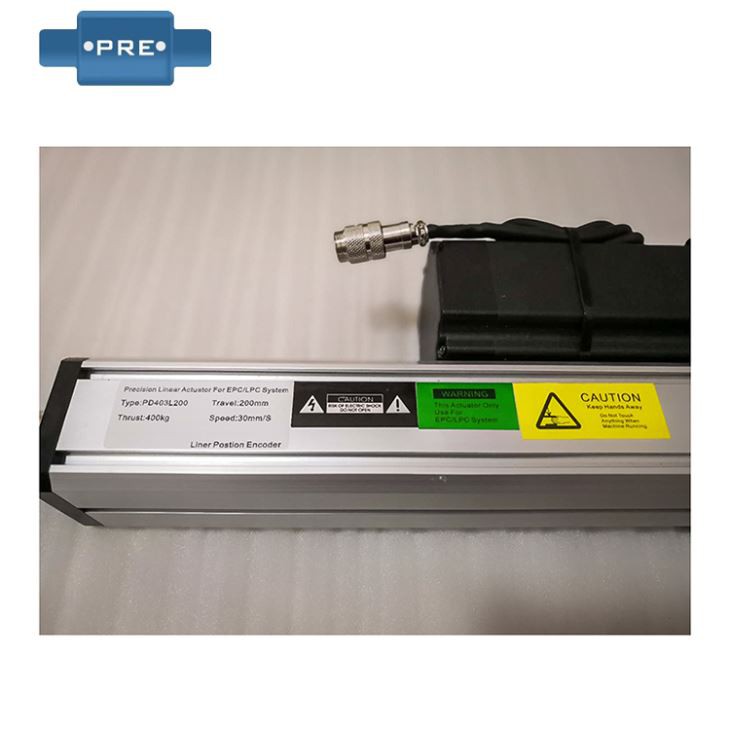

PD403L200 Web Aligner Actuator

Main Features:

1.Brushless servo motor drive with nearly free maintenance.

2.Strict localization & recoilless with precision ball screw.

3.There is not mechanical stroke switch.

4.Forecast the stroke automatically by Honeywell switch.

5.High Efficiency with quick speed.

6.Short response time.

7.Big start torque.

8.Precision brake efficiency.

9.High transmission efficiency.

10.It is suitable for the high speed with high precision web guide.

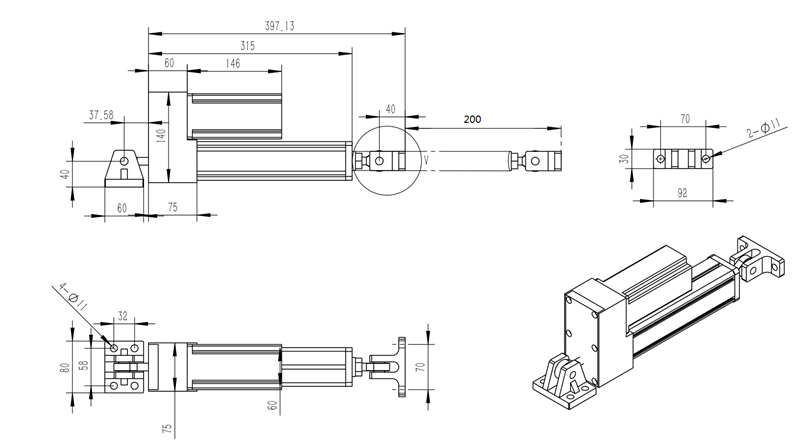

Drawing:
