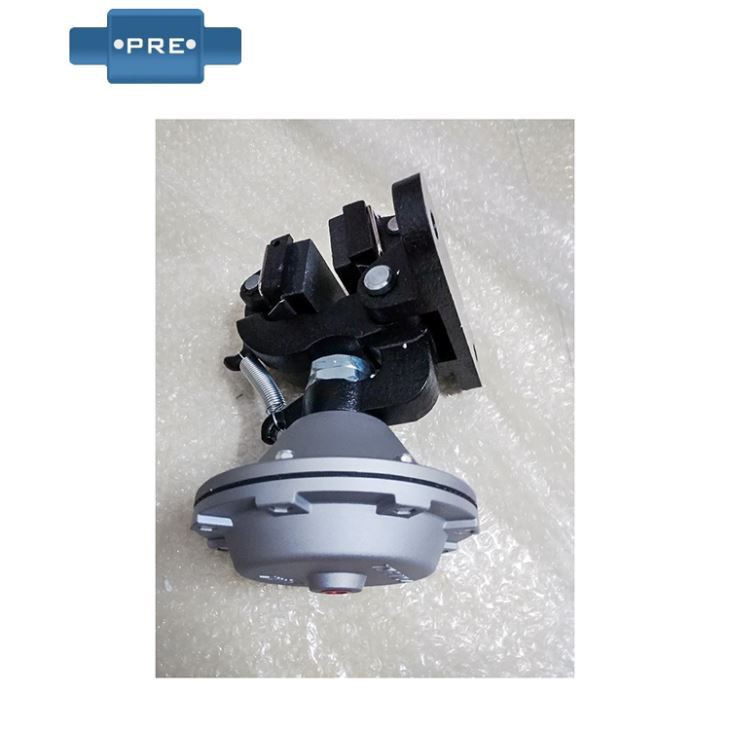

DBG Air Disc Brake

Features:

Pneumatic Brakes are best suited for light to medium stopping duties and for tensioning applications where a high degree of control is required.Air Disc Brakes are widely used for speed reducing, stopping/braking of the low or medium torque driving mechanism. The brakes can also be applied as tension brake on winding machines, such as: paper-web tension control, news paper publishing tension control, steel unwind control, wire and cable reel unwind tension etc.

Features for Pneumatic Applied Brakes Include:

Compact structure and small size, light. It is easy to control and operate.

Normally-closed type: spring applied and pneumatically released; Normally-opened type, air pressure applied and spring opened, brake force can be adjusted by varying air pressure.

The pneumatic actuator is made in Taiwan with high reliability and quality.

The linings are of inserting installation style and non-asbestos. It can be easy replaced.

When it is not possible to apply a disc with a required diameter, it is enough to apply more than one clamp.

This type of brake is also very suitable in case that work involves a constant pull on the material, but a pressure regulator is required.The assembly of these brakes does not require any particular attention thanks to the new self-aligning system with orthogonal sliding which allows an automatic brake-disc alignment.

Caliper brakes can have two operating modalities:

POSITIVE: when the control produces the braking effect.

NEGATIVE (Spring Applied): the braking effect is obtained when the control is absent. These clamp brakes are mainly used as safety and parking brakes.

Standard Size brake discs available and Customized can be manufactured.
