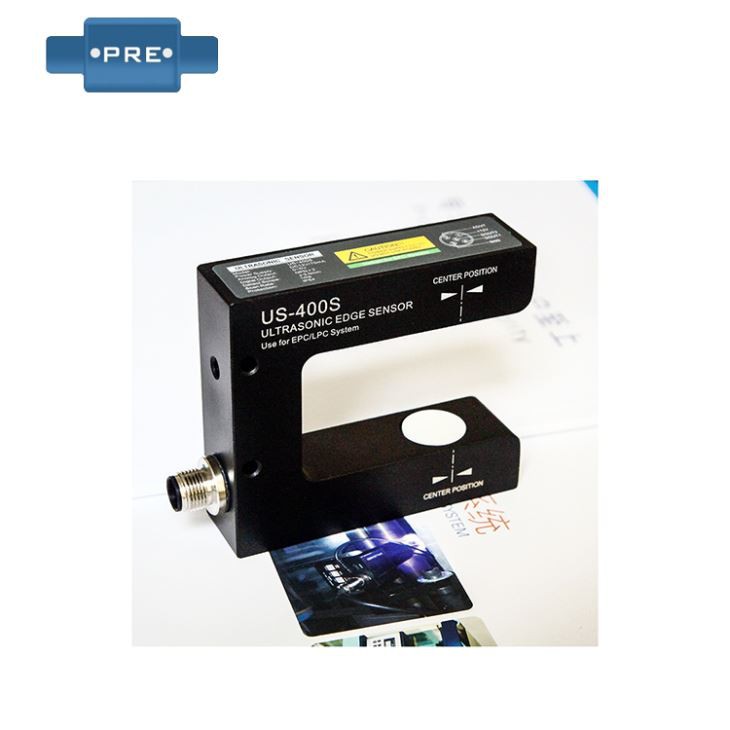

Ultrasonic Web Edge Sensor

The US-series ultrasonic sensor uses the principle of high-frequency ultrasonic linear propagation to detect the edge position of the coil. Compared with the photoelectric sensor, it is not affected by the transparency of the materials, so it is very convenient to use without calibration. It is applicable for edge-following on airtight material (such as plastic, film, paper, etc), but for breathable material(for example,non-woven,cloth,etc),it can not be used.

1. Support analog/switch output, can be used with EPC-A10 or EPC-D12 correction controller

2. Suitable for opaque, transparent, ultra-transparent film edge application

3. No need to manually adjust the calibration

4. 200K ultrasonic beam

5. 1ms reaction time

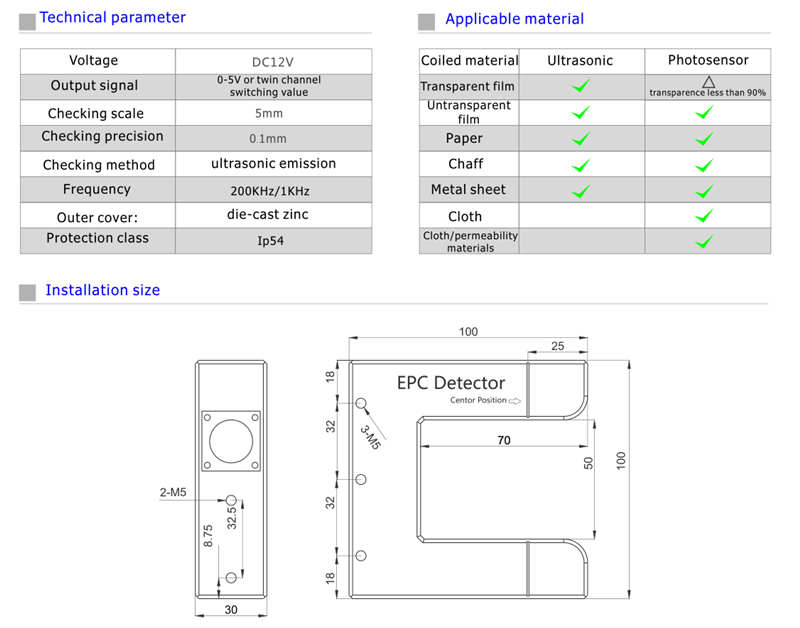

6. The detection range is 5mm, the detection accuracy is 0.1mm

7. With offset display
