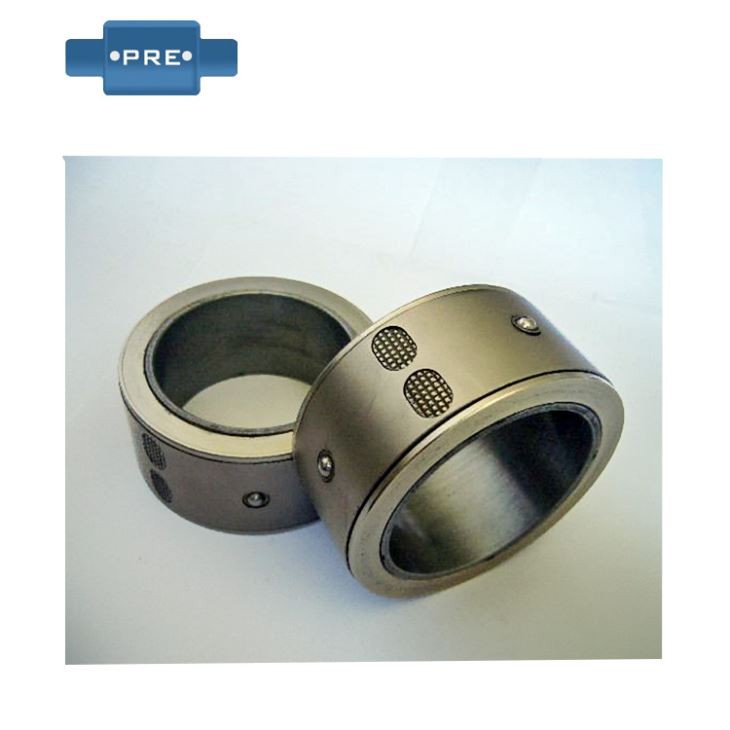

Key Type Friction Ring

Key Type Friction Rings For Differential Air Shaft

The use of differential shaft improves the speed of the slitter, the accuracy of the winding and the degree of automation.At the same time,it shorter the preparation time and achieve the humanized operation. In particular for polyester thin materials which have poor tensile resistance and big difference in thickness.The use of differential shaft ring can reduce the difficulty of winding.

Besides, using slip shaft to wind or unwind precious materials, metal foil and special paper roll, can greatly improve the production yield, reducing the cost of production.

Key type friction rings with double row of expanding key/lug, totally interchangeable these rings ensure a perfect locking and friction of the slits to be rewound, they are available in the following executions:

Spring loaded or without spring

Unidirectional or Bidirectional

Made of aluminium, steel, plastic bushed, plastic-steel bushed or plastic-aluminium bushed

Suitable for cores diameter for 3inch,6inch,and other customized sizes

Minimum width rings 10mm (for 3” cores) up to 50mm

Lugs are always in touch with the core

Absolute certainty that all lug locks are engaged and clamping the cores across the full web width

Automatic locking and core centering

Suitable for cardboard, plastic and steel cores

More accurate tension control

Increased torque transfer

Technique parameter

Order Details
