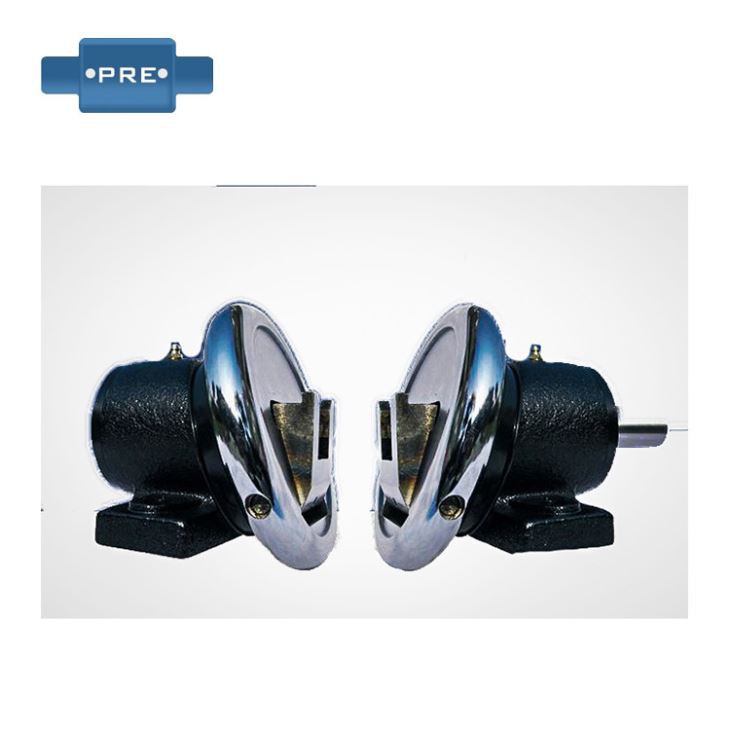

Foot Mounted Safety Chuck

STOSTW Series Foot Mounted Safety Chuck

Introduction:

The newly designed PRE fast safety chuck provides a fast, reliable, simple, safe and effective connection for air expanding shafts, preventing the reels from loosening or tightening during operation, effectively improving work efficiency and products. quality. It can be divided into two types: Foot Mounted Type and Flange Type, and can be used in various forms of bayonet to match various air shafts. Widely used in slitting, printing, rewinding, coating, laminating, bag making, paper making, electronic battery, rubber and plastics and other related coiling machinery industry.

Product Features:

1: The chuck is nickel-plated, and the bayonet parts are hardened for durability.

2: With imported heavy-duty bearings, it also ensures good performance in heavy load and high speed applications.

3: Reasonable tolerances of the bayonet components ensure smooth and continuous torque transfer.

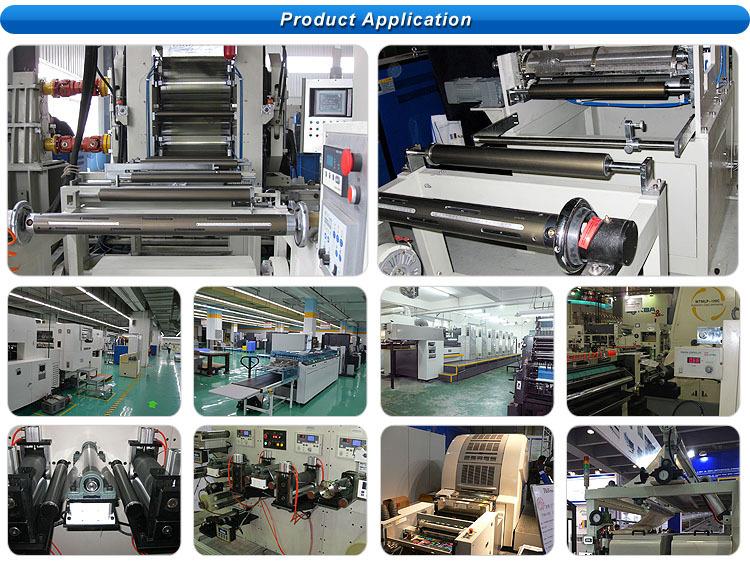

Application:

Order Details
