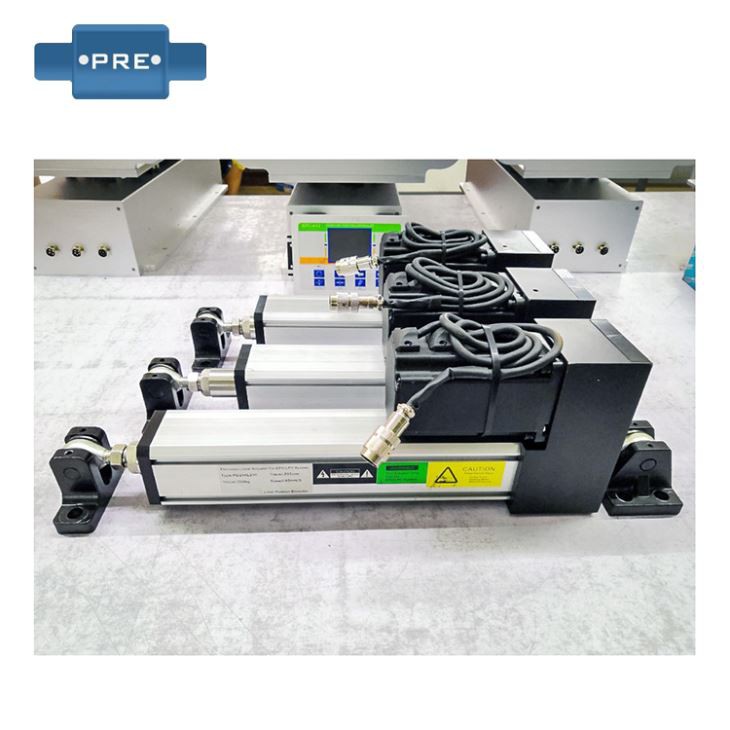

PD-204L150 Web Aligner Actuator

The servo motor linear drive PD-204L150 is driven by a brushless DC servo motor. Compared with other types of motors, it has high efficiency, fast speed, short response time, large starting torque, accurate braking and maintenance-free. The transmission part uses high-precision ball screw, which has high transmission efficiency, less backlash and accurate positioning, and is suitable for high-speed and high-precision rectification applications.

1. brushless servo motor drive, maintenance-free

2. precision ball screw, accurate positioning

3. no mechanical travel switch, the position is calculated by the encoder pulse

4. the thrust 150Kg to 200Kg, the maximum push 1.5T to 3T rack

5. the driving speed of 14mm / S to 400mm / S

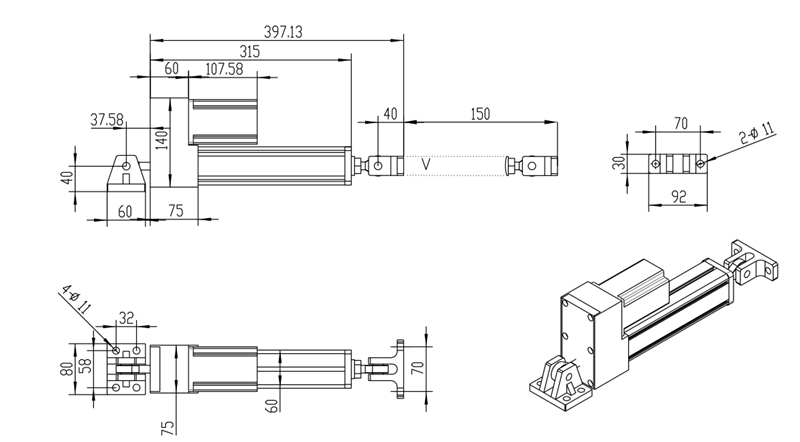

Drawing:

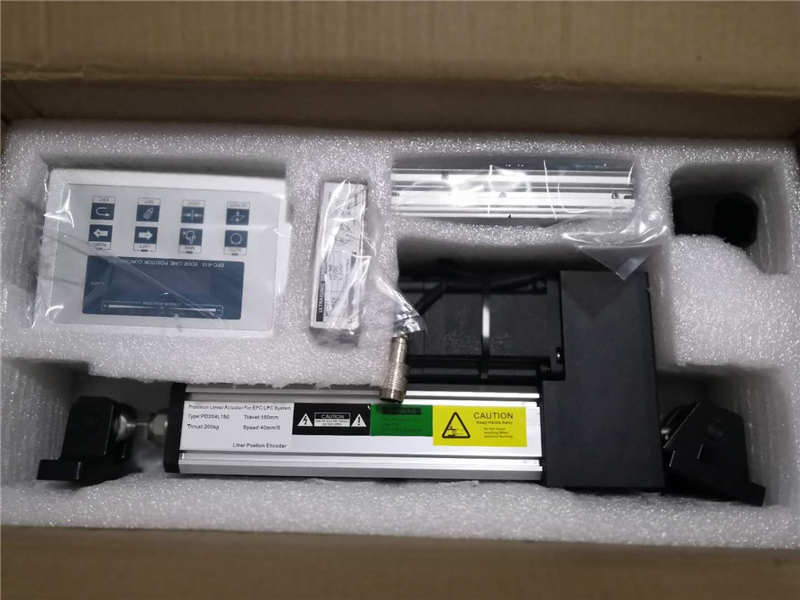

Packing:
