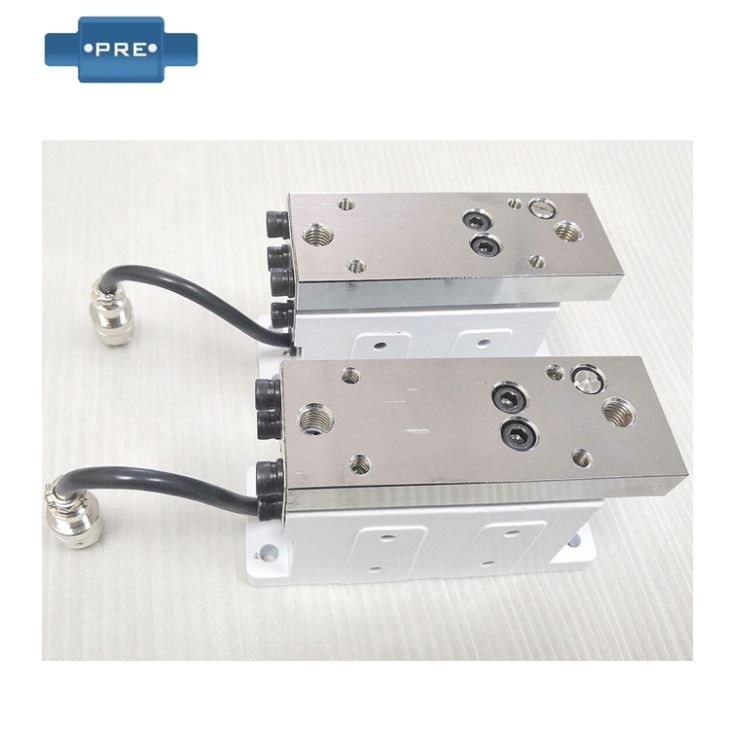

Foot Mounted Tension Sensor

The foot-mounted tension detector is widely used in various coil control related equipment. The LX series tension sensor adopts aluminum or steel housing according to the rated load, which has waterproof and dustproof performance, thus increasing the service life. The LX series tension load cells are mounted in a shaft mount and the detectors are mounted on both ends of the tension roller for more accurate detection of tension values.

Features:

Good linearity, high repeatability, no hysteresis;

5 times overload protection;

Adapt to a variety of harsh working conditions;

Beautiful and elegant, 360 degree installation;

Input voltage: 10VDC

Full scale output: 16mV

Bridge impedance: 350 ohms

Detection principle: metal foil strain gauge

Ambient temperature: -20 ° C ~ +90 ° C

Nonlinear, hysteresis combined error: ±0.5%

Force limit: 500% nonlinear lag of nominal value

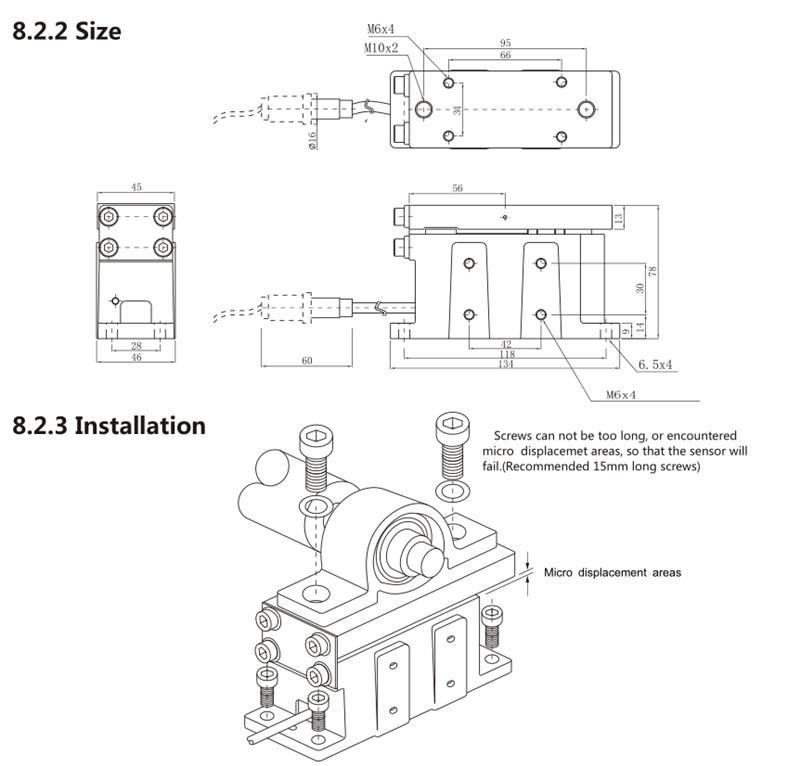

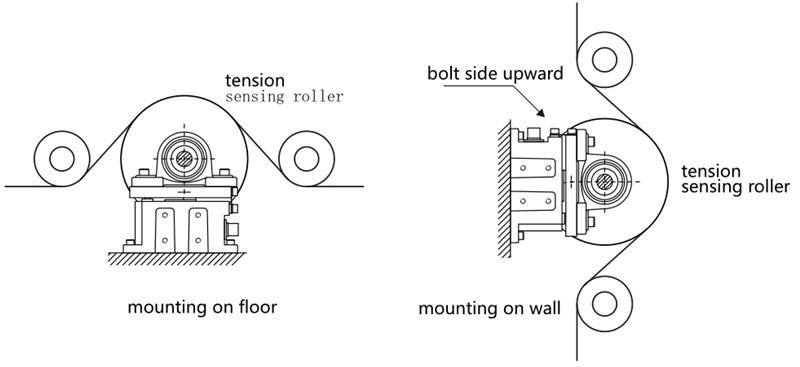

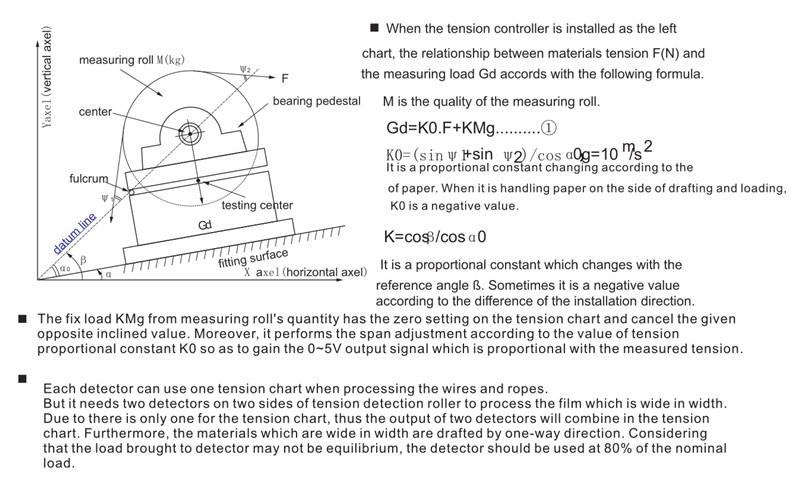

Mounting of Tension Sensors:

Order Details
