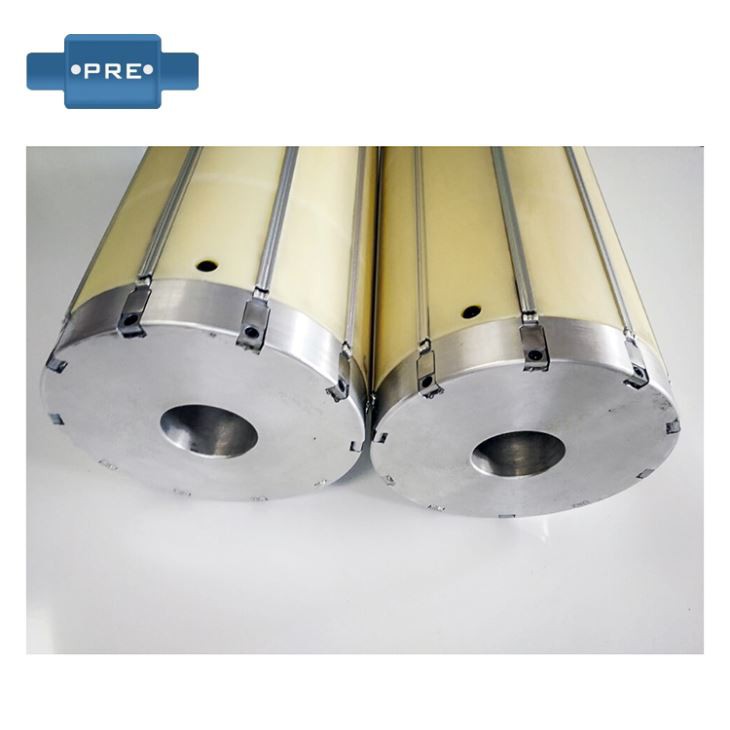

3 Inch to 10 Inch Air Shaft Adapter

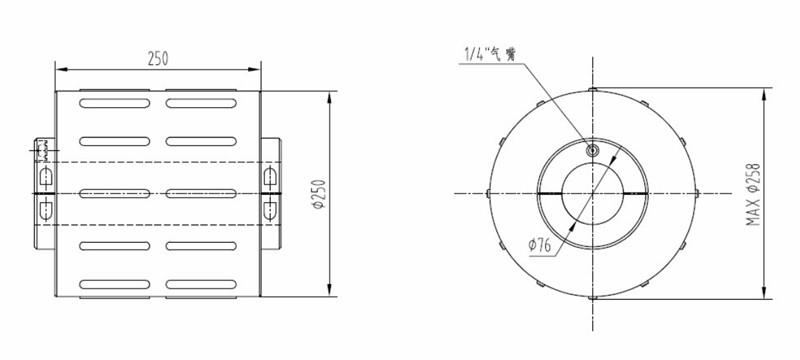

This accessory is a nylon expansion sleeve for the air shaft,standard 3 inch to 10 inch, the inner diameter is 75mm-76 mm, the outer diameter is 250 mm, and the width is 300 mm.

The main material of core adaptor could be aluminum or nylon. Considering the weight of adaptor, the convenient transportation, and loading & unloading on equipment, our company recommends nylon pneumatic chuck to our customers for these big outer diameter.

This product is made of imported wear-resistant nylon,It is processed by CNC bed inside and outside diameter, and the inner six-slot computer is carved and precision machined to ensure the quality of the product. This big air shaft adapter uses nylon to select material because nylon material has very good heat resistance, wear resistance and aging resistance, it is a good partner for winding reel. It adopts an open shape design, which is very suitable for the use of pneumatic expanding shaft. After the air shaft is inflated, the expanding lugs or leaves expands your paper tube, and the sleeve is automatically closed after the deflation is completed, so that you can change the paper tube easily. During the production process, the gas inflates and deflates, and the sleeve expands and contracts flexibly to improve your production efficiency, when the paper tube is tightened, it will not slip during the production process. After the winding is completed, the edge is neat and wrinkle-free, and it does not go wrong, increasing the beauty of your finished product. This nylon pneumatic adapter is suitable for all kinds of die-cutting equipment, various film, optical film, PE film, AB glue and other slitting equipment, slitting equipment, air shafts’ winding, can be customized according to different inner diameter and different length based on customers’ needs, welcome to order!

Technique parameter

Order Details
