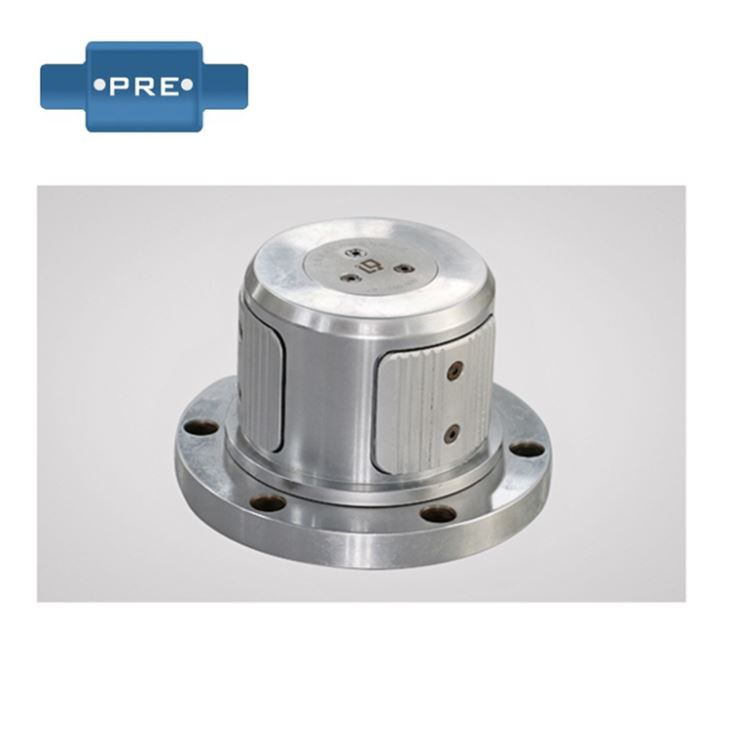

6 Inch Rotary Mechanical Core Chuck

Features:

Rotary Mechanical Core Chuck is also called torque-activated expanding core chuck, it is fitted with segmented sectors (“leaves”) that expand using the torque of the movement of the reel; this creates optimal centering of the chuck in the core. Torque-activated core chucks are available in numerous diameters, single-diameter or double-diameter versions. Self-expanding and self-centering, locking in both rotation directions, built in treated steel to enhance its hardness with a rust-proofing treatment. The Pads are guaranteed to expand even on low torque values. Chucks are available for sizes ranging from 70 mm to 12” versions. Single-diameter version is available with the flange for the ejection of the core of the spring and flange for the ejection of the core.

High load & Torque capacity.

Bi-directional operation.

Synchronised concentric pads.

Very little maintenance required.

Order Details
