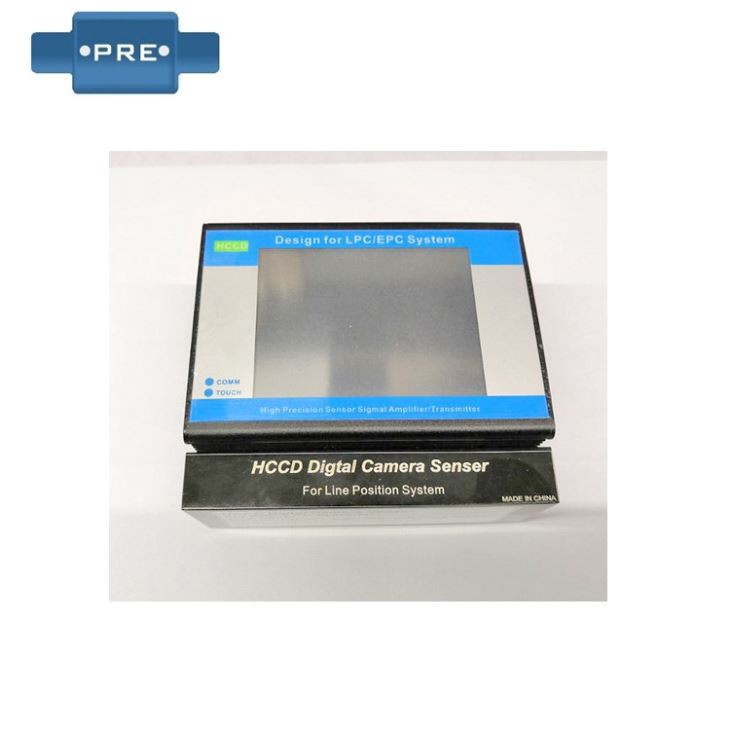

CCD Sensor Accuracy On Web Guiding System

CCD/HCCD sensor is a color linear camera, which can track the edges of materials, contrast edees, lines, patterns and so on. Because the materials to be tracked are different, we need to tell teh sensor the target ti be tracked, which requires calibration of the target to be tracked.

Send Inquiry Chat Now

Product Details

CCD with edge line sensor

Sampling the CCD line array photosensitive element, converting the line or image edge on the material into the gray value of the pixel, analyzing the displacement of the material line or edge through the hardware algorithm of the FPGA device, and outputting the control signal to the correction controller to realize the correcting operation;

Suitable for medium and low reflective and moderately contrasting materials, such as printed patterns on transparent and transparent films, dark patterns on aluminized films, printed patterns on paper and edges of all materials;

HCCD

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase

guide system

HCCD guiding

Web Guide System4

Application

application

Order Details

Item Name	Electric Eye HCCD Sensor
MOQ(Minimum Order Quantity)	1pc
Lead time	3-5 days after receiving the deposit
Calculated Packing Size	15cm10cm10cm,2kg/pc
Package	Carton/Wooden Box
Price Term	EXW, FOB, CIF, etc
Payment term	TT, L/C, Western Union
Country of Origin	China
