The tension sensor adopts the principle of stress gauge sensor. the built-in double cantilever beam and the four stress gauges attached to the cantilever beam form the wheatstone full bridge. when the outside force is generated at the cantilever beam, the pressure complete bridge loses stability and the output distinction voltage, the sensor output voltage.

Precautions while the use of a tension sensor:

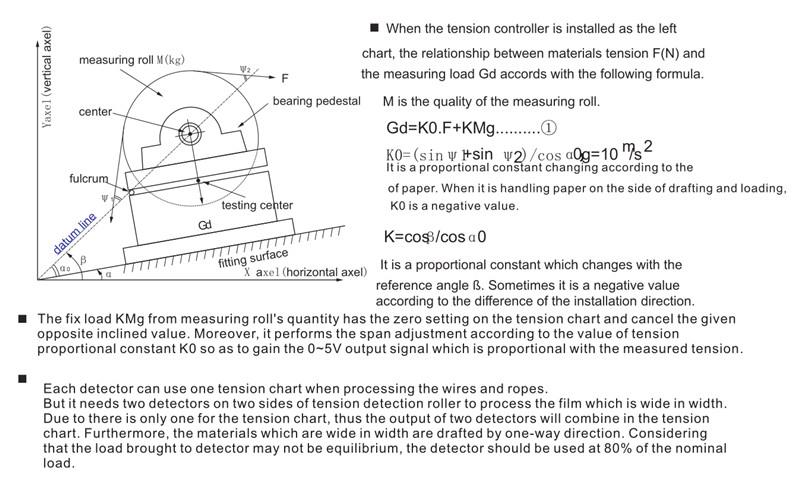

1. the wrap attitude of the anxiety roller need to no longer exchange.
2, the variety choice of the sensor need to no longer be too big, may be decided in line with the anxiety range and the real set anxiety
3, the range must no longer be adjusted too huge, otherwise the output signal will differ
Four, the sensor must no longer be too some distance from the amplifier, usually no greater than 20 meters

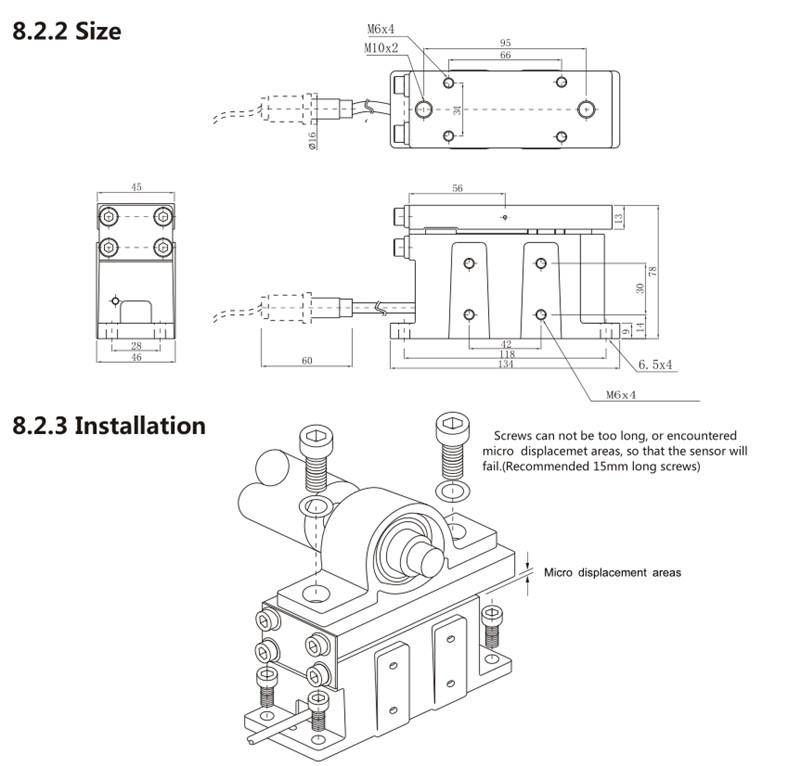

5. save you any effect on the sensor all through installation to avoid damage to the sensor.
6. when connecting the amplifier to the sensor, make certain to observe the guide wiring. in no way use the strength supply of the amplifier to the strength supply of the sensor, otherwise the sensor may be burnt out.
7. always disconnect the electricity when wiring.

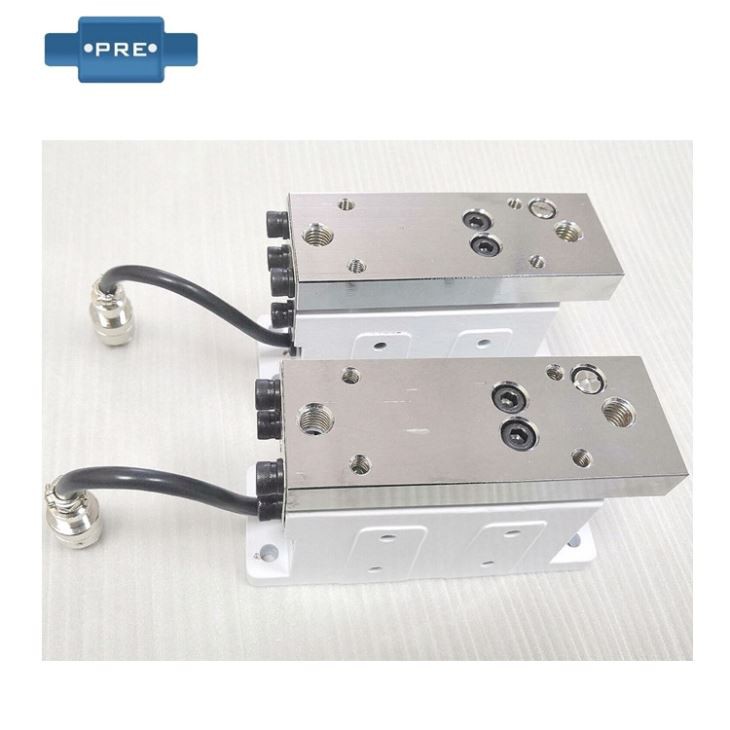

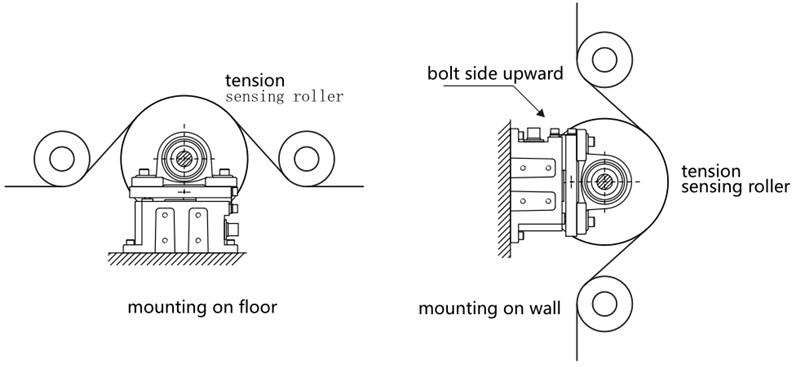

Foot Mounted Tension Sensor

Suggestions: which will make sure that the sensor outputs signals efficiently and stably within a sure temperature fluctuation range, it has a built-in temperature repayment community, so that the voltage sign output by means of the sensor is best proportional to the pressure.
