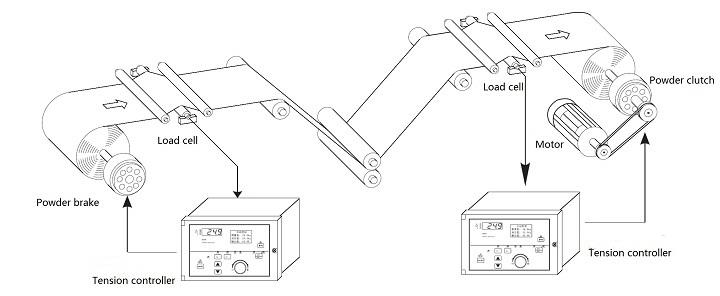

Tension Controller is a high precision, multi-functional all-digital smart tension controller with tension detector,consisting of a closed-loop tension control system.By receiving the tension detector signal transmitted by the internal PID operation processing, adjustment actuator to close automatically controlling material / unwinding tension. Our tension controller with a new graphic LCD display, Chinese and English show more clearly, and for the magnetic clutch / brake issued 0 ~ 24VDC control voltage instruction, can output 0 ~ 10V voltage signal to control the drive, servo motor or other implementing agencies of the reel for high-precision tension control. Widely used in printing, packaging, paper, cables, rubber and plastics, electronics batteries, textile and other industries.

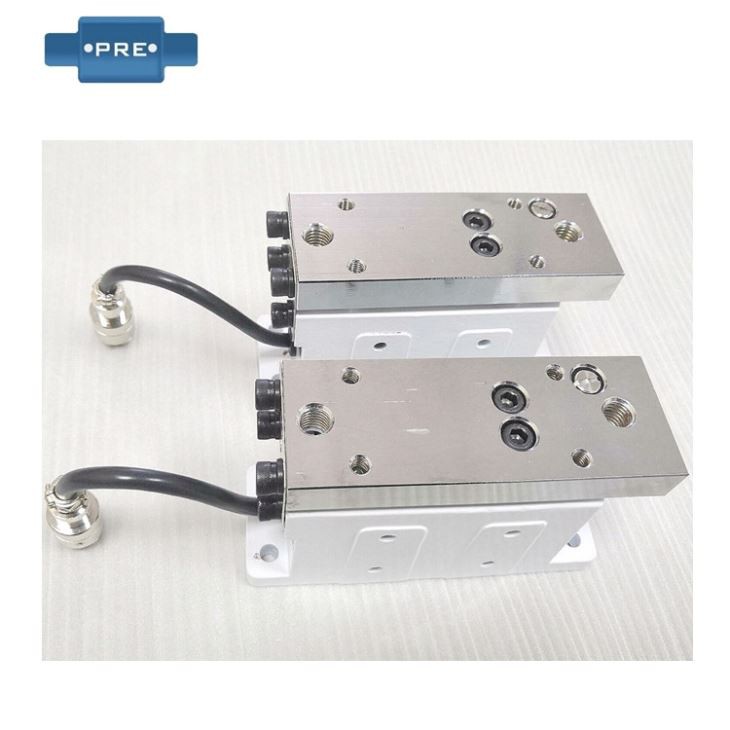

Foot Mounted Tension Sensor

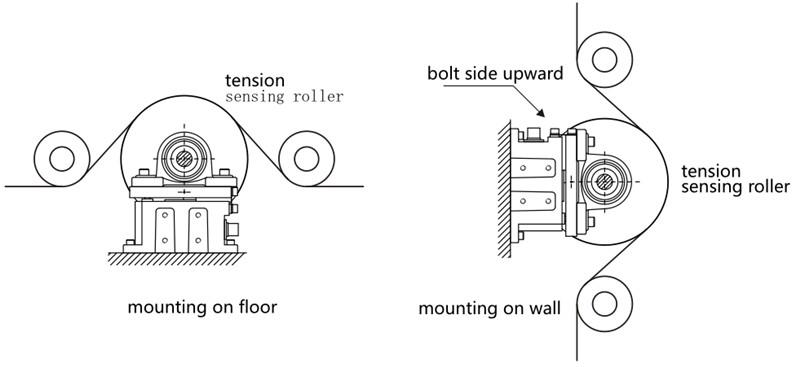

Mounting of Tension Sensors:

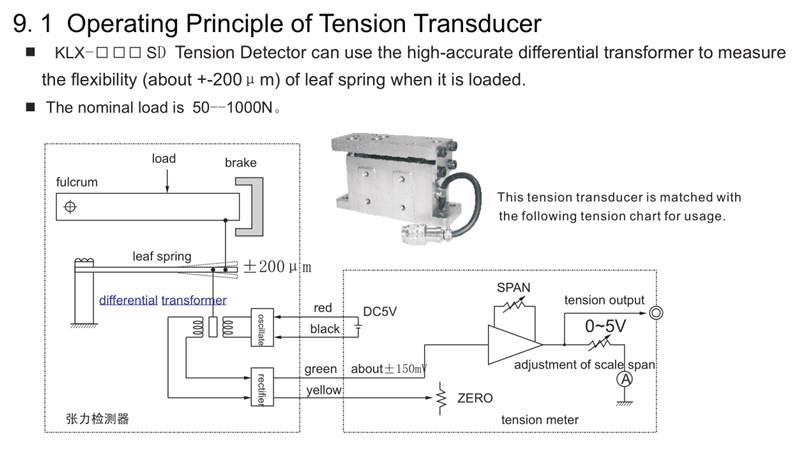

The tension actuator is a tension detector usually equipped with a full-automatic tension controller, a magnetic powder clutch, and a magnetic powder brake. It detects the bending degree of the leaf spring when the load is applied by high precision, thereby detecting the tension. The tension sensor has high stability, good linearity, fast response, light weight and small size. It is an ideal detection device for tension control during printing, packaging, film printing and processing.

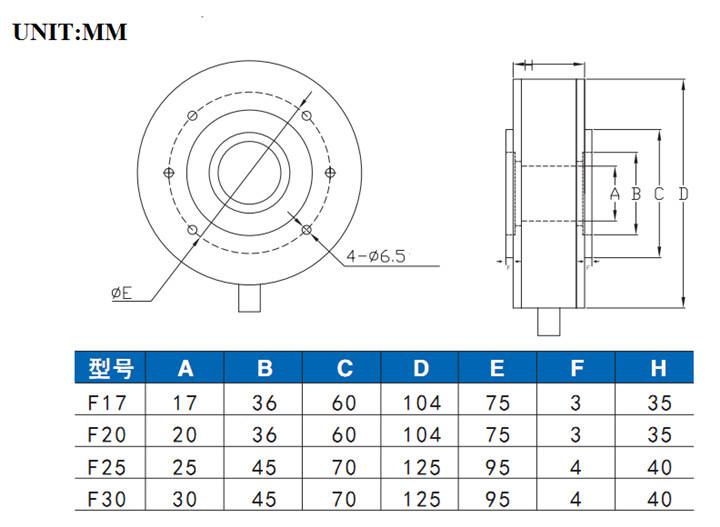

Through-Hole Tension Detector

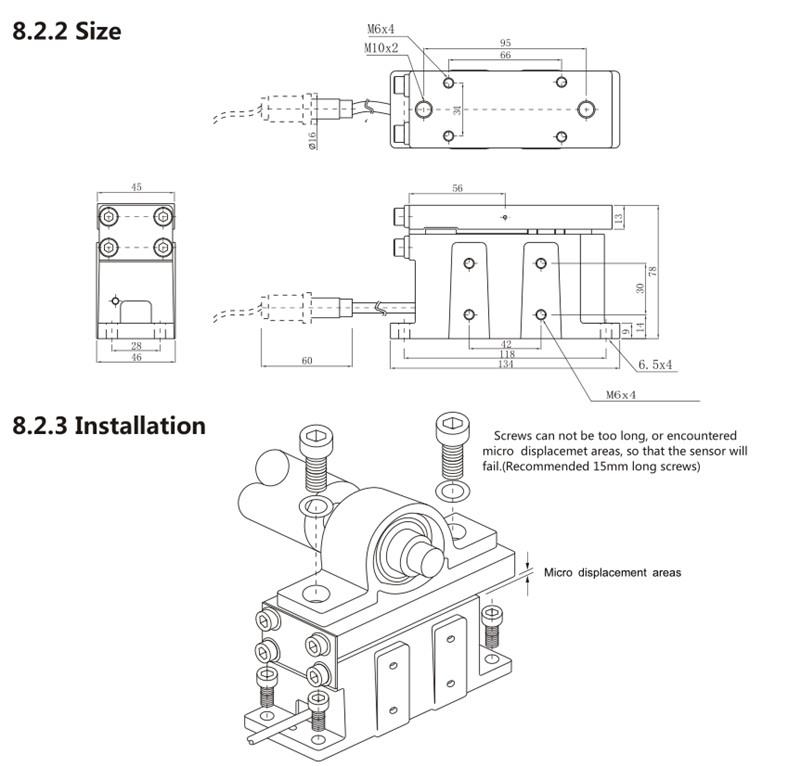

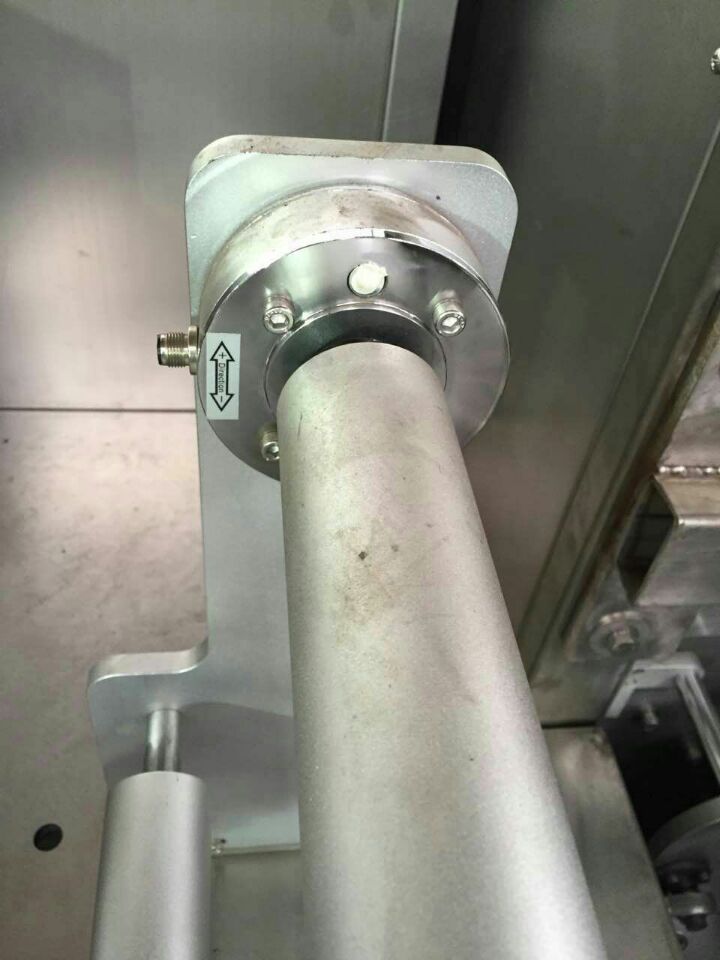

Installation:

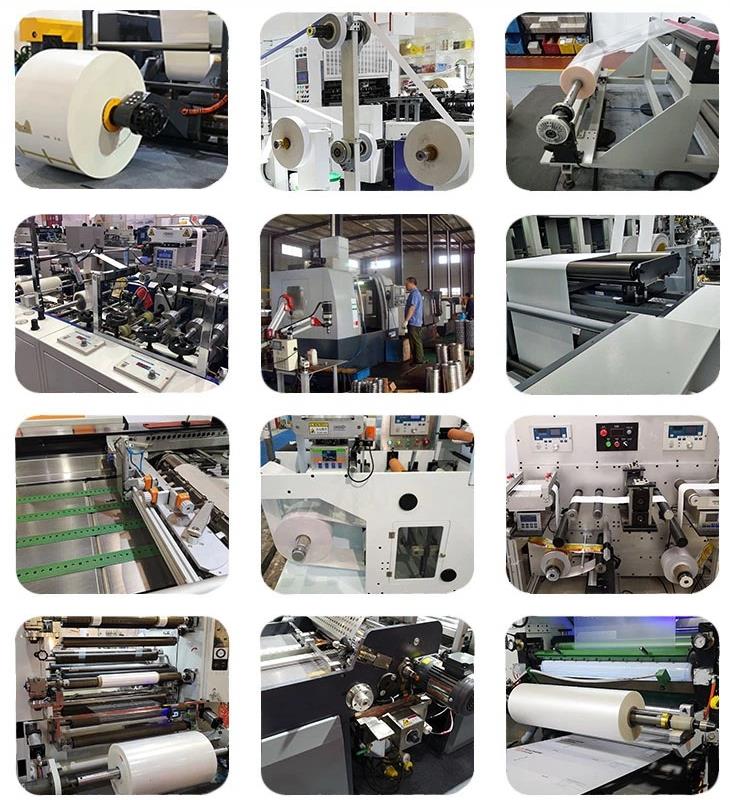

Application

Order Details

Order Details
