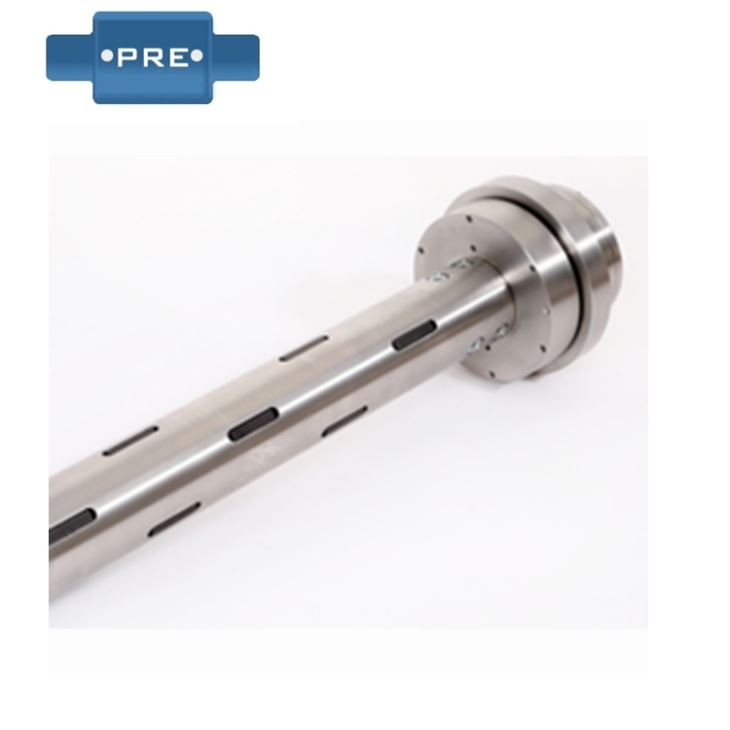

Cantilever Air Shaft

The metallic body of the cantilever increase shaft excavates a discipline-type window at the steady stop of the cantilever mandrel going for walks component to ensure the structural pressure of the printing platform. the bearing seat is mounted at the internal of the movable metallic block, and the metallic block is excessive-precision ball screw stress, the moving characteristic of the screw is at the center line of the plate mandrel, and linear publications are respectively installed at the top and reduce ends of the sphere window to fix the transferring metallic block, as a result making sure the steadiness of the printing platform in excessive-pace operation. . in this case, because the screw moves on the middle line of the plate curler mandrel, the thrust of the middle effect cylinder closer to the plate curler and the the usage of pressure alongside the route of the ball screw act on the center of the plate curler mandrel, and there's no torque at the assist body.

The cantilever inflation shaft refers to a unique winding and unwinding shaft, that is, a shaft that may be raised by a excessive-stress air-crammed surface (the key strip), and the floor component (relating to the key strip) is quickly retracted after deflation.

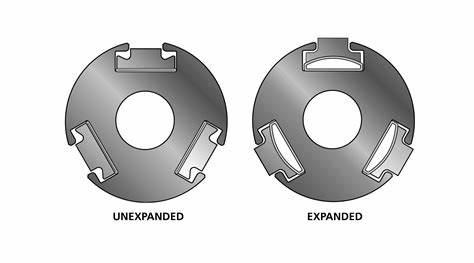

the cantilevered air shaft is particularly clean to apply in comparison to the overall air shaft, mainly as it does not need to take away the whole shaft all through unloading. after the gasoline is immediately deflated, the fabric may be removed, because its width isn't always huge, so the natural operation is greater convenient. this is additionally the inflation shaft decided on by way of many machines which can be light in weight and small in width. the air enlargement shaft and the air growth sleeve are extraordinarily convenient and short to use. handiest the self-organized air supply is required. the air pressure is controlled inside the range of 6-8kg/cm2. while the external additives need to be locked, so long as the inflatable handle is dealing with the inflation shaft. the air nozzle may be inflated, and the key bar will protrude towards the outside parts. whilst the paper is unloaded, the sliding air center at the air nozzle is pressed by way of hand to launch the air, and the important thing bar will go back to the original appearance. the components may be eliminated.
Commands:

1, short circuit method
Refers to the method of shorting the 2 equipotential factors on the device with a cord to decide the range of the fault factor or the point of failure.

2, open circuit technique
It refers to the approach of disconnecting the circuit for inspection with a view to discover unique desires within the inspection of the gadget tool circuit.

Three, the resistance approach
It refers to the method of the use of the meter to measure the on/off of a sure point or a thing on the road to decide the fault point.

4, contemporary method
It refers to the method of determining the fault point by way of measuring whether the contemporary on a line is normal.

5, voltage method or voltage dimension technique
It refers to the method of measuring the voltage fee of a sure point on the road with the aid of the meter to decide the variety of the electric fault point of the gadget tool or the thing failure.

Packaging

Order Details
