Transmission Shaft

The use of the air-growth shaft is versatile: the air-growth shaft may be implemented to any system that has a winding and unwinding.

Suitable for printing gadget: drying system, flexo printing machine, gravure device, trademark printing machine and so forth. appropriate for other mechanical system: coating system, leather-based device, setting device, embossing system, slitting device, die slicing device, rewinding system, rewinding device, paper tube system, laminating gadget, laminating gadget, using blown movie gadget, foaming device, laminating gadget, embossing machine, paper gadget, non-woven machine, material inspection device, bronzing machine, battery gadget and other associated machinery.

The complete steel frame excavates a box-type window on the fixed end of the cantilever mandrel working side to ensure the structural rigidity of the printing platform. the bearing seat is hooked up at the interior of the movable metallic block, and the metallic block is made from excessive-precision ball wire. the rod is pushed, and the shifting position of the screw is on the middle line of the plate mandrel. linear guides are respectively established on the top and lower ends of the container window to restoration the transferring metal block, after which the printing platform is stabilized at high speed.

In this design, the solving of the mandrel is completely automatic, and the movement of the whole screw and the determination of the shaft cease get rid of the human thing. the shifting steel block is constant to the body by two upper and decrease linear courses, and due to the fact the screw actions on the center line of the plate roll mandrel, the thrust of the middle impression cylinder in opposition to the plate curler and the driving pressure alongside the route of the ball screw at the center of the plate mandrel, only a small partial strain is formed, and because the pressure load acts handiest on the center of the plate mandrel, there is no torque at the assist body.

Common faults and main performances of the air shaft accessories used in machine tools

Taking a lathe as an example, the types of common machine faults are:
(1) The automatic switch of the air shaft leakage can not be closed;
(2) Three motors cannot be started;
(3) The spindle motor cannot be started;
(4) Press the spindle motor start button SBl, the motor beeps and cannot be started;
(5) After the spindle motor starts, release the start button and the motor stops.
(6) The air shaft is pressed by the stop button, and the spindle motor M1 is not stopped.

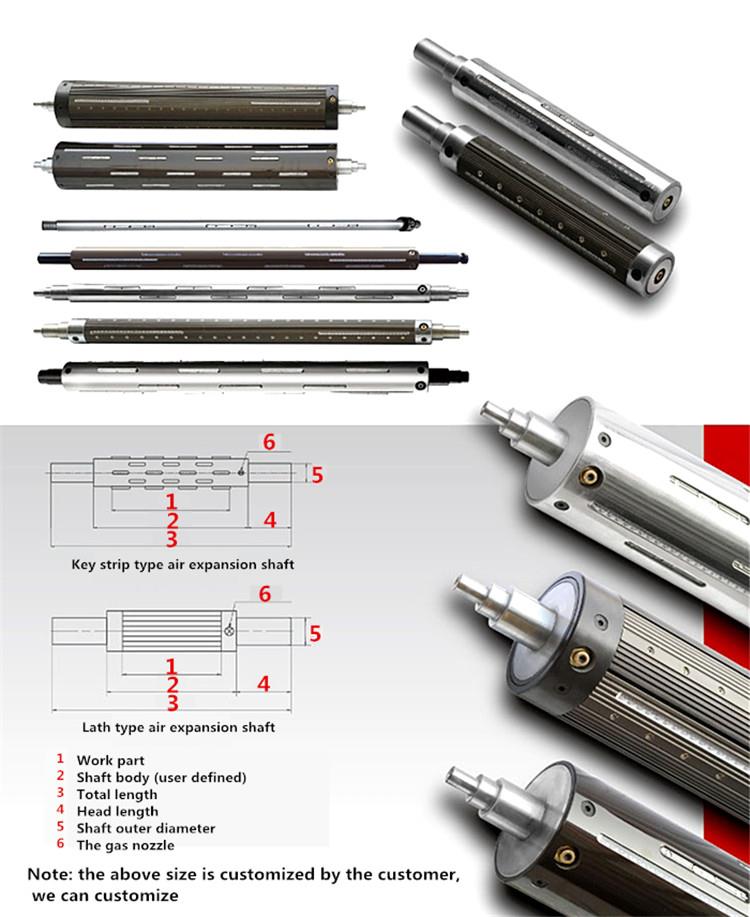

Main performance of the inflation shaft:
1: The inflating operation time is short, the separation and placement of the inflation shaft and the paper tube can be completed in 3 seconds to complete the inflation and deflation, and it is not necessary to separate any parts on the shaft end side to be tightly engaged with the paper tube.
2: The paper tube is simply placed: in the action of inflation and deflation, the paper tube can be moved and fixed at any position on the shaft surface.
3: The bearing weight is large: the diameter of the shaft can be determined according to the actual needs of the customer, and the high-hardness steel is used to make the bearing weight increase.
4: High economic efficiency: The shaft is designed for special functions, and can be applied to all kinds of paper tubes of thick, thin, wide and narrow.
