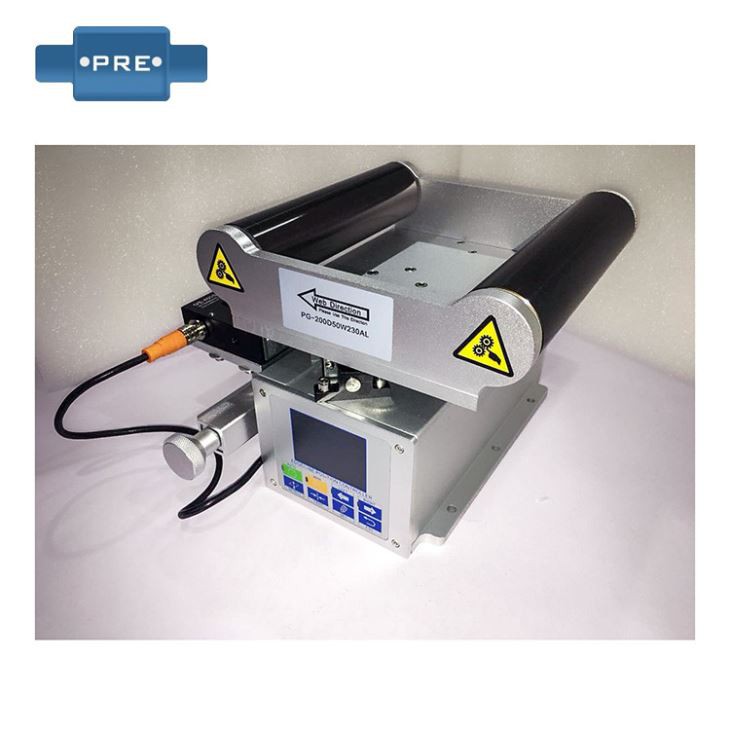

250mm Web Guide System In Printing Machinery Parts

System features:

1. Supports chasing, chasing, and medium.
2. Support photoelectric sensor, ultrasonic sensor, CCD sensor.
3. Intelligent detection of sensor parameters, no need to calibrate the sensor in most environments.
4, automatic stroke measurement, no mechanical limit switch.
5, no overshoot integral variable PI adjustment algorithm, high precision, quick response, less error
6, ultra-high speed 500 microsecond (0.5 mm) response speed
7, the modulus sensor signal 12-bit AD sampling, 700,000 times per second sampling speed
8, using FIR digital filter, the difference filter, anti-dry ability is stronger, the signal is more stable. ,
9, DC servo motor pushes the ball screw
10, all system status parameters power-down memory
11, storage 10 sets of different material parameters, switching materials is convenient
12, Simplified Chinese / Traditional Chinese / English
13, humanized operation, fast and easy
14, support Modbus bus and PLC / man-machine interface Internet control

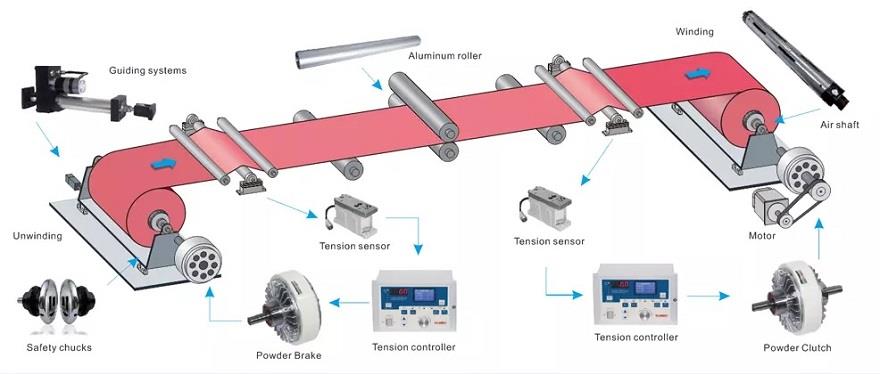

Application:
