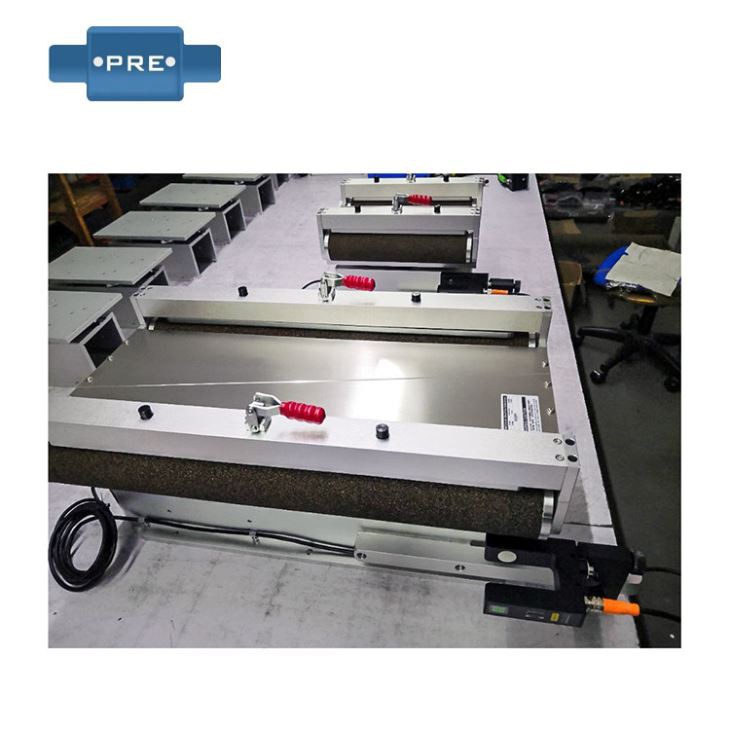

500mm Width Web Guiding Systems

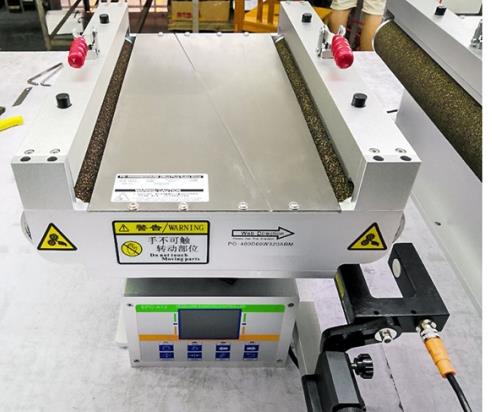

PG-500A width web guiding systems

PG-500A servo motor web displacement guide,it is driven by brushless DC servo motor, combined with precision ball screw drive, compact structure, good mechanical rigidity, low inertia, high precision.

It is suitable for high-speed and high-precision web guide in the intermediate process of coils processing.

Product parameters:

1. Brushless servo motor drive, maintenance-free

2. Precision ball screw

3. The guiding stroke is large

4. Can be customized guide roller length and span

5. The guide roller can be equipped with a hard anodized layer, rubber layer, wrap cork

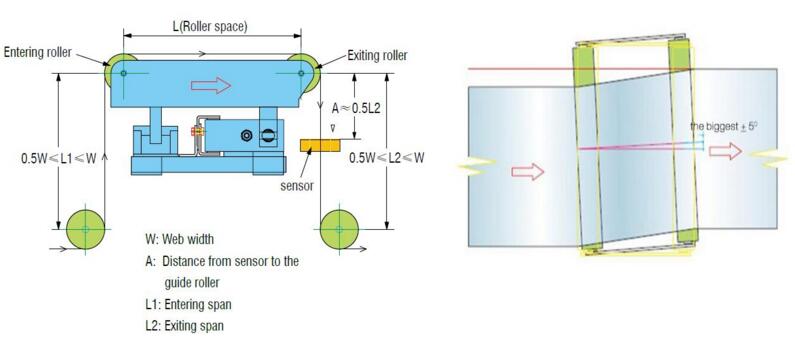

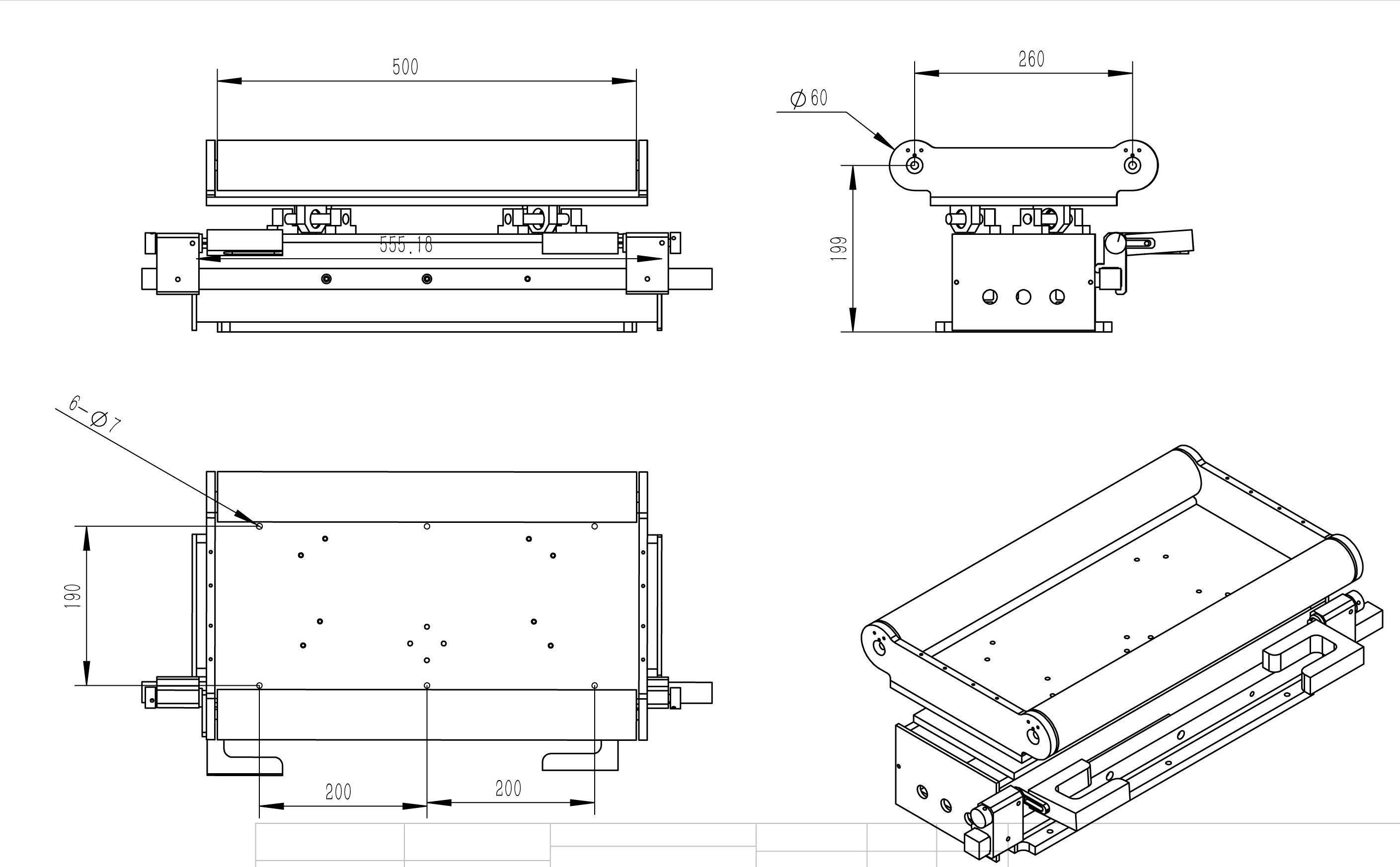

Drawing

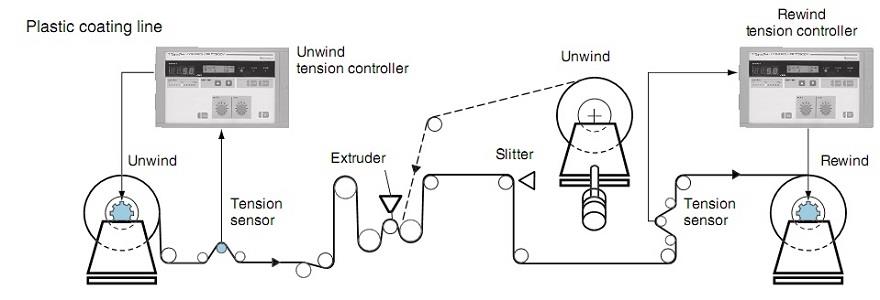

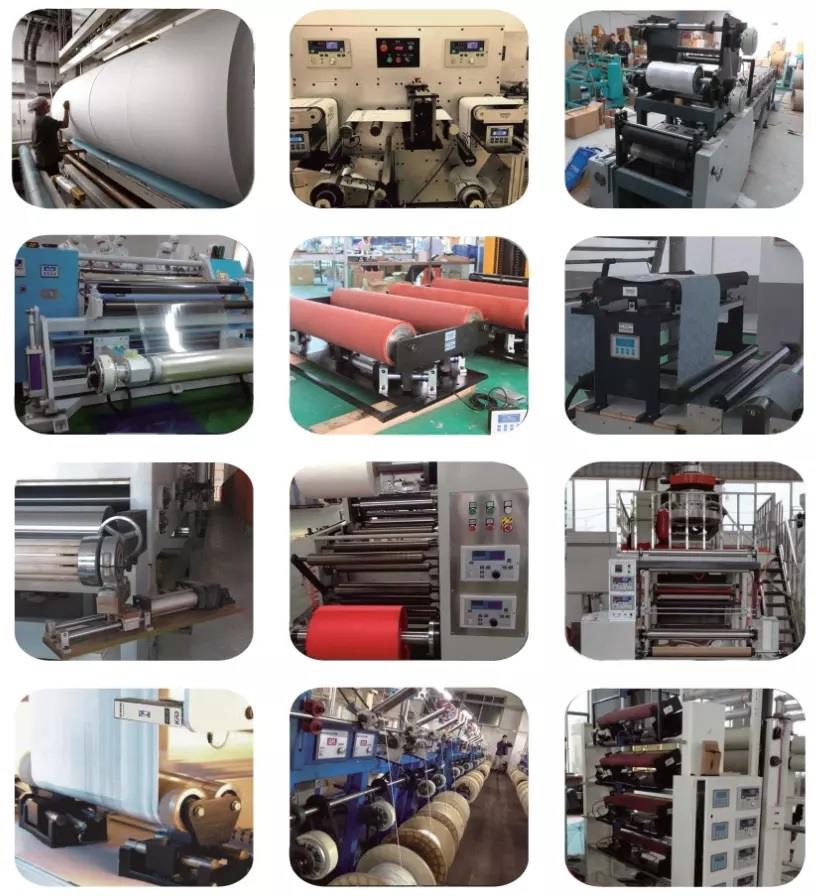

Application

Order Details
