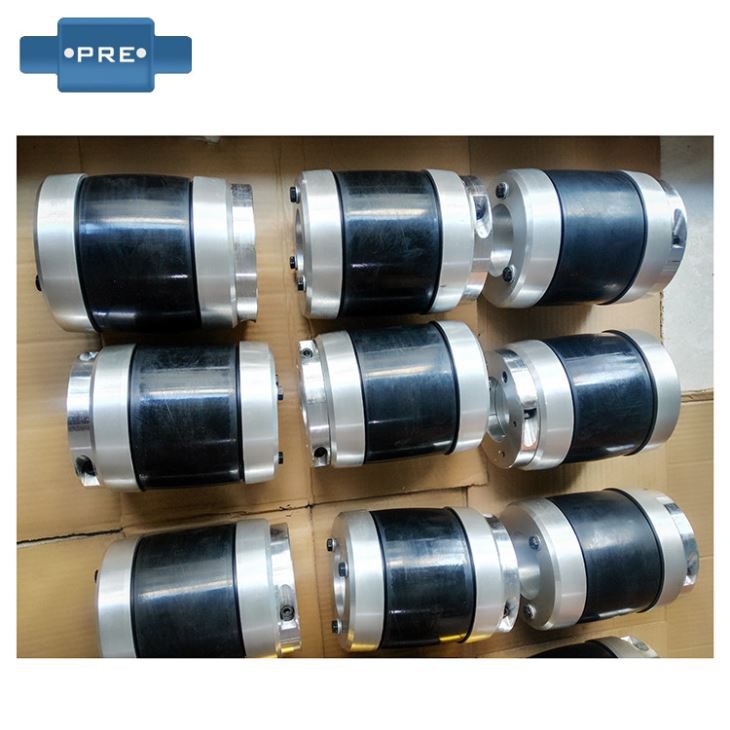

Air Chuck Adapter

Features:

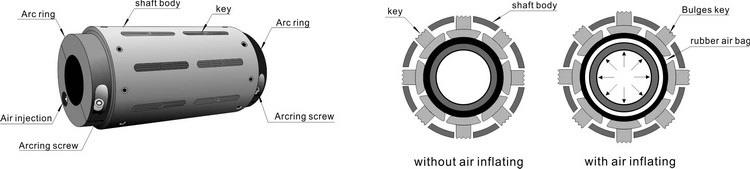

The Air Adaptor mainly comprises a front sleeve, a rear sleeve, a cylinder body, an inner tube, an air bag, a convex keyboard and the like. The riser material is made of high-quality aluminum, oxidized on the surface, equipped with high-quality airbags and fast inflation nozzles. Good sealing effect, long service life and convenient maintenance. Advantages: light weight and convenient loading and unloading.

Specification:
Divided into a key air chuck adapter and a plate/leaf air chuck adapter

Common specifications are: 3 inches to 6 inches, 3 inches to 8 inches, 3 inches to 10 inches, 3 inches to 12 inches. After inflation, the diameter increased by 8mm. The length is 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, etc. (Can be customized according to customer needs, length is not limited)

Parameter
 The outer diameter of the gas riser sleeve is Φ150mm, and the outer diameter of the action is Φ155mm.
Applicable paper tube Φ149-153mm, 201-205mm, 252-256mm, 302-305mm
The body length is 200mm, 250mm, 300mm, 400mm, 500mm, etc.

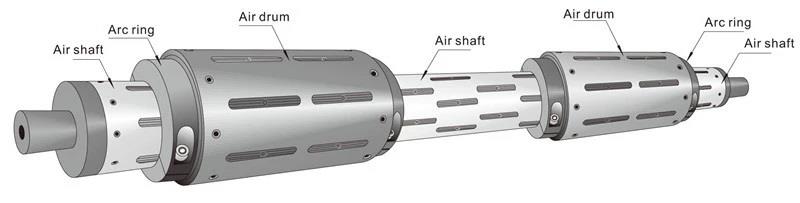

Air chuck adapter are widely used in the packaging film industry, and the main size of the inflatable sleeve is 3 inches to 6 inches of inflatable sleeves, so the inflatable sleeves are used in conjunction with the inflation shaft. In the case of the structure type of the inflation sleeve, there are a button type inflation sleeve; a plate type inflation sleeve; a rubber inflation sleeve. It is widely used in the packaging and printing industry, and is widely recognized and loved by friends.

Technique parameter

Packaging:

Order Details
