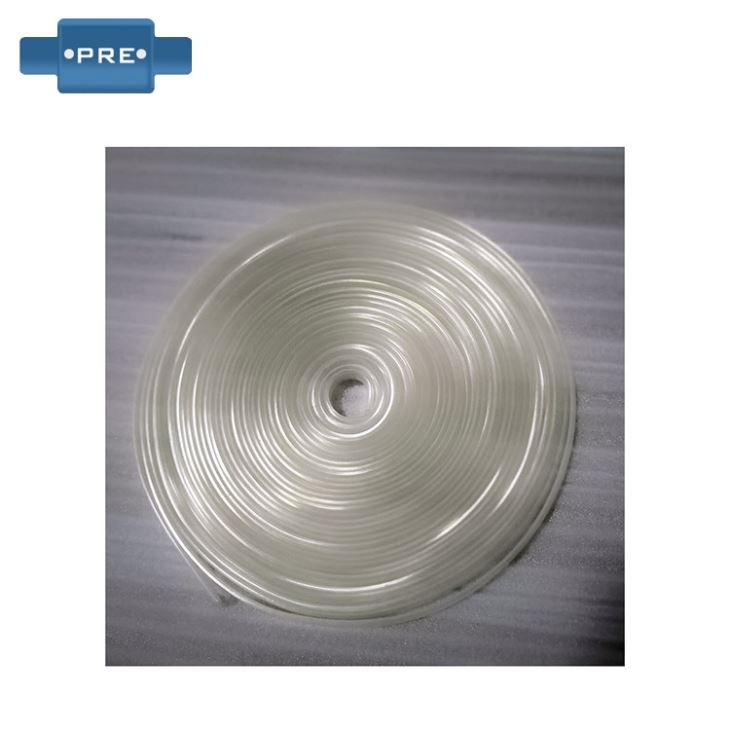

Air Shaft Bladder Tubing

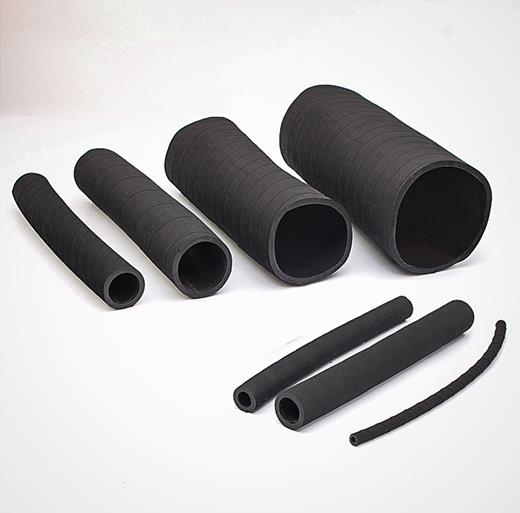

Inflatable shaft airbag: also called gas rising shaft expansion tube, gas rising shaft rubber tube. Mainly through the principle of expansion and contraction, the gas rising shaft and the paper tube are tightly joined to achieve the purpose of winding and unloading. The air-expansion shaft uses...
Inflatable shaft airbag: also called gas rising shaft expansion tube, gas rising shaft rubber tube. Mainly through the principle of expansion and contraction, the gas rising shaft and the paper tube are tightly joined to achieve the purpose of winding and unloading.
The air-expansion shaft uses the principle of air compression to change the outer diameter of the shaft. The tight-rolling of the coil enables the unwinding and winding of the entire roll of material to be carried out smoothly. The use of the air-expansion shaft can promote the rational, simple and accurate operation on the production line. Sex and automation.
Production process: raw materials, additives, formula, mixing, cooling, extrusion, casing, precision winding, vulcanization, cooling, unwinding, cooling, demoulding, tray, packaging
Specifications
ID*OD*Wall Thickness(mm) | Length(Meter/Circle) | ID*OD*Wall Thickness(mm) | Length(Meter/Circle) |
6*10*2 | 100Meters/Circle | 42*50*4 | 40Meters/Circle |
6*12*3 | 100Meters/Circle | 42*51*4.5 | 40Meters/Circle |
7*12*2.5 | 100Meters/Circle | 42*52*5 | 40Meters/Circle |
9*13*2 | 40Meters/Circle | 44*54*5 | 40Meters/Circle |
9*15*3 | 40Meters/Circle | 45*55*5 | 40Meters/Circle |
11*16*2.5 | 40Meters/Circle | 48*58*5 | 40Meters/Circle |
11&17*3 | 40Meters/Circle | 48*59*5.5 | 40Meters/Circle |
11*18*3.5 | 40Meters/Circle | 51*61*5 | 40Meters/Circle |
13*19*3 | 40Meters/Circle | 51*63*6 | 40Meters/Circle |
13*20*3.5 | 40Meters/Circle | 57*67*5 | 40Meters/Circle |
13*21*4 | 40Meters/Circle | 60*70*5 | 40Meters/Circle |
16*22*3 | 40Meters/Circle | 64*74*5 | 40Meters/Circle |
16*23*3.5 | 40Meters/Circle | 76*86*5 | 40Meters/Circle |
16*25*4.5 | 40Meters/Circle | 76*88*6 | 40Meters/Circle |
19*25*3 | 40Meters/Circle | 85*95*5 | 10Meter/Circle |
19*29*5 | 40Meters/Circle | 85*97*6 | 10Meter/Circle |
20*30*5 | 40Meters/Circle | 89*99*5 | 10Meter/Circle |
22*30*4 | 40Meters/Circle | 89*100*5.5 | 10Meter/Circle |
25*35*5 | 40Meters/Circle | 89*101*6 | 10Meter/Circle |
28*38*5 | 40Meters/Circle | 95*106*5.5 | 10Meter/Circle |
30*38*4 | 40Meters/Circle | 102*112*5 | 10Meter/Circle |
30*39*4.5 | 40Meters/Circle | 102*113*5.5 | 10Meter/Circle |
30*40*5 | 40Meters/Circle | 102*114*6 | 10Meter/Circle |
32*40*4 | 40Meters/Circle | 108*120*6 | 10Meter/Circle |
32*42*5 | 40Meters/Circle | 115*127*6 | 10Meter/Circle |
34*42*4 | 40Meters/Circle | 127*139*6 | 10Meter/Circle |
34*44*5 | 40Meters/Circle | 140*152*6 | 10Meter/Circle |
38*48*5 | 40Meters/Circle | 152*164*6 | 10Meter/Circle |
40*48*4 | 40Meters/Circle | 180*194*7 | 10Meter/Circle |
40*49*4.5 | 40Meters/Circle | 219*231*6 | 10Meter/Circle |
40*50*5 | For more dimension,can be customized (ID6mm-ID600). |

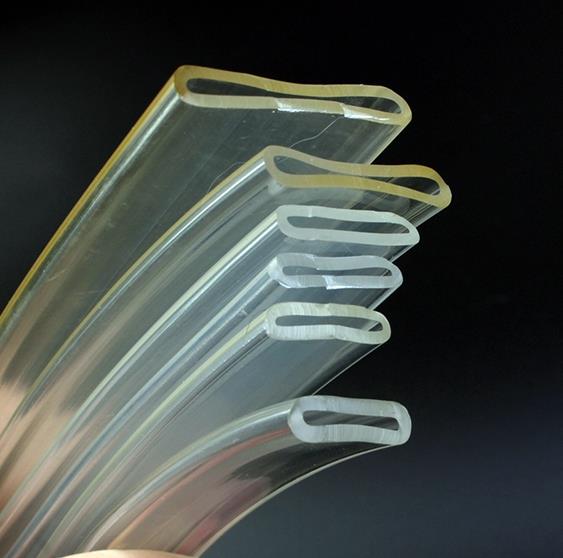

pecifications
Total Height*Wall Thickness(mm) | Length(Meter/Circle) | Total Height*Wall Thickness(mm) | Length(Meter/Circle) |
15*1.5 | 200Meters/Circle | 20*1.5 | 200Meters/Circle |
18*1.1 | 200Meters/Circle | 20*2 | 200Meters/Circle |
For more dimension, can be customized. |
Doubtful answer:
First, leaking slowly
1. The steel pipe keyway, or the burrs of the key bar will pierce the hose and leak air. This situation is slow gas leakage (there are aluminum or iron keys on the market). The cost of the aluminum key is relatively high, and the cost of the iron is low. (Few merchants use rubber keys, which are die-cast).
2. There is a gap in the sealing ring, which needs to be sealed in the sealant.
3. The pressure ring is loose, just tighten the pressure ring, pay attention to the usual observation of looseness.
4. The gas-filled mouth part leaks, and then it can be replaced and replaced.
Second, the charge is not air intake
1. Check, inflator handle, gas nozzle, air pipe, etc. whether it is blocked or leaking.
2. The hose is broken. There may be quality problems in the hose itself. It is necessary to remove the shaft head and replace it with a hose.
Order Details
Item Name | Air Bladder for Air Expanding Shaft |
MOQ(Minimum Order Quantity) | 5 Meters |
Lead time | 5-7 days after receiving the deposit |
Calculated Weight | Based on different dimension to calculate |
Package | Carton/Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT,L/C,Western Union |
Country of Origin | China |
