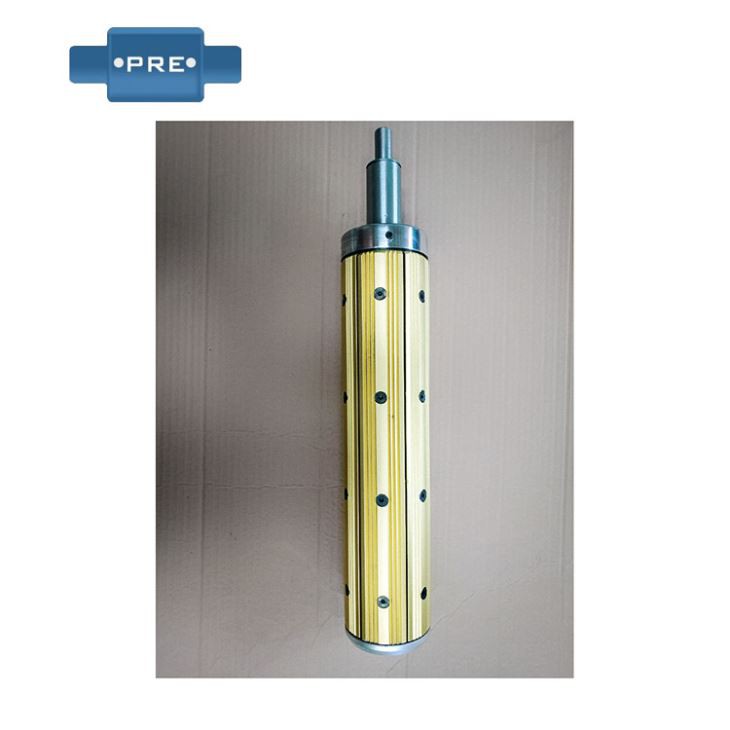

Air Shaft Valve

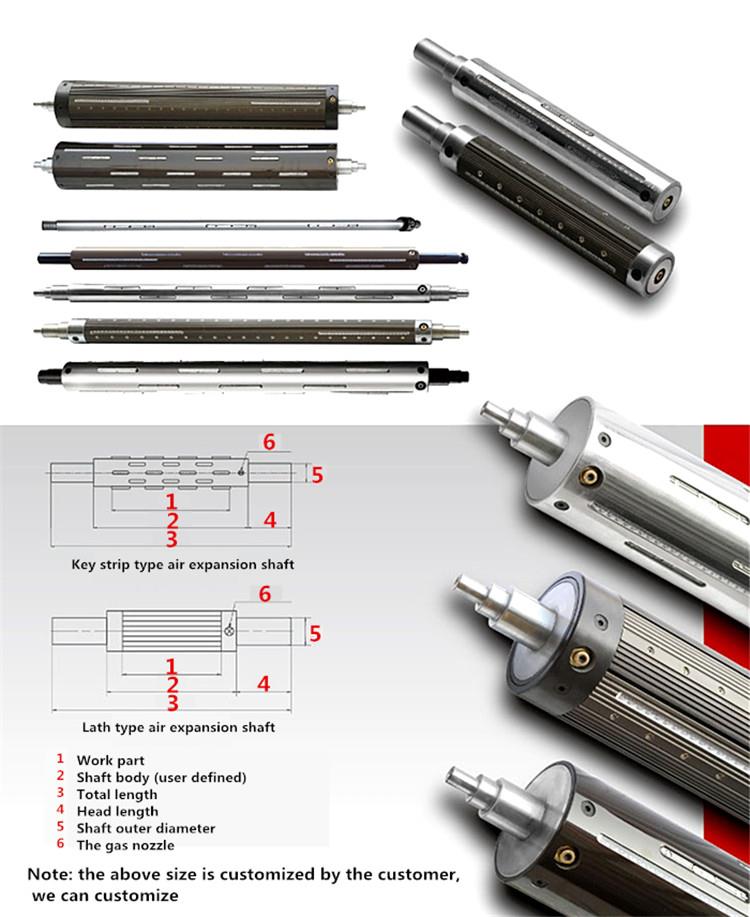

The decision of the inflation shaft is numerous. it's also referred to as the pneumatic shaft, the expansion shaft, the inflation shaft, the inflation curler, the inflation shaft, the stress shaft, the inflation roller, and so forth. regardless of the truth that there are numerous names, the walking precept is the equal. the inflation shaft and the inflation sleeve it is tremendously reachable and fast to apply. it best needs to be self-contained. the air strain is managed inside the form of zero.5-0.eight mpa. when the outside components (inclusive of a spherical paper tube) want to be locked, so long as the air gun is going via the air at the inflation shaft. the mouth may be inflated, and the critical component bar will protrude towards the out of doors components (together with a spherical paper tube). whilst the paper is unloaded, press the sliding air core on the air nozzle to launch the air, and the important component bar will respond. within the genuine way, outside components (together with spherical paper tubes) may be taken out to provide air-growth shafts, and the air-growth shaft can be repaired. the schematic diagram of the inflation shaft is more, but the strolling principle is the identical. the shaft and the air increase sleeve are extraordinarily convenient and quick to apply. best the self-prepared air supply is needed. the air strain is managed within the form of zero.5-0.eight mpa. at the same time as the outside additives (inclusive of a round paper tube) want to be locked, so long as the air gun goes through the air. the air nozzle on the growth shaft can be inflated, and the crucial component strip will protrude in opposition to the outside elements (which includes a circular paper tube). at the same time as you press the sliding air core on the air nozzle through manner of hand, the air button will go back to the unique appearance, and the out of doors additives (collectively with a round paper tube) can take out the expert manufacturing air enlargement shaft and restore the air expansion shaft. ,

Installation precautions for the air shaft
1. whilst putting in the air-expansion shaft, the primary issue to be determined is that the compressor that controls the air strain is in a solid state, and a clear out is immediately established among the compressor and the air-expansion shaft to prevent impurities from clogging the air pipe, thereby inflicting air leakage. ;
2. the route of entry of air should be vertical to prevent damage to the valve;
Three. when hard, it's miles important to use the same old matching exhaust port, and it's miles forbidden to apply equipment together with sharp hammer to keep away from air leakage;
4. set up stress gauge and stress manipulate device, and the air strain need to be managed inside the range of three-8kg/cm;
Five. while changing the air nozzle, the socket wrench have to be used. if there is a fault internal and want to be disassembled and repaired, please ask the expert maintenance personnel not to disassemble it yourself to keep away from unnecessary loss;
6. be cautious to keep away from injure the valve.
The growth within the provider existence of the inflatable shaft additionally substantially reduces the manufacturing management expenses incurred via the customer for upkeep and repair.
For the reason that air-expansion shaft is product of mainly processed pipe fabric, the stability of the cloth can make the air-enlargement shaft (flat growth sleeve) triumph over the commonplace defects which include deformation and bending in use, and ensure that the production line unit can stably operate beneath excessive-velocity manufacturing. . reliable and strong overall performance, bringing customers the fact of high-end merchandise.
Convenience: compared with normal superb structural metal, feiyu's inflatable shaft has a totally light weight, which reduces the physical power of the production operator and the inconvenience of operation. based on the width of 1350mm, the typically used air growth shaft (gasoline rise shaft) has a weight of approximately 24kg.

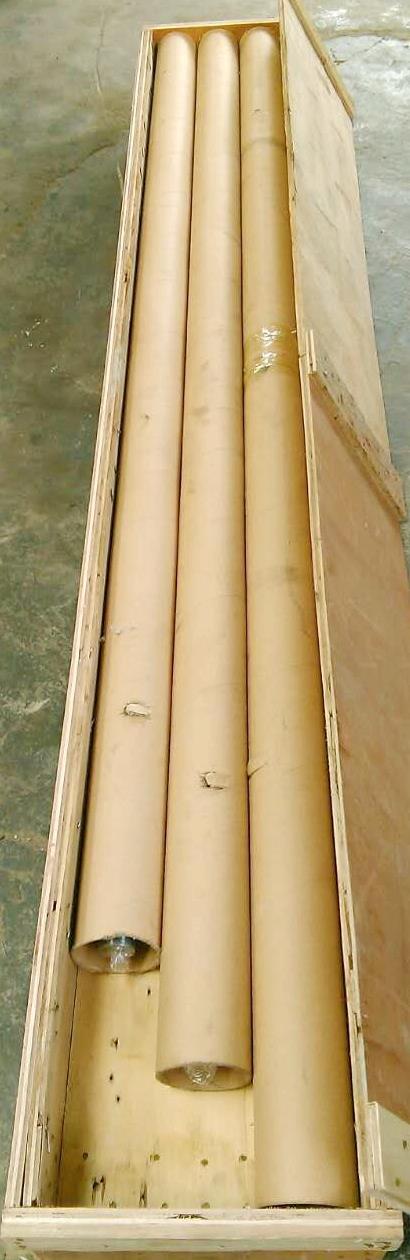

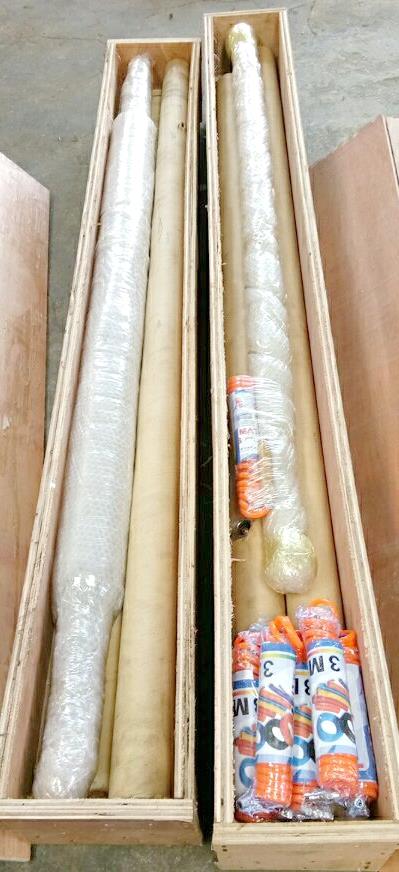

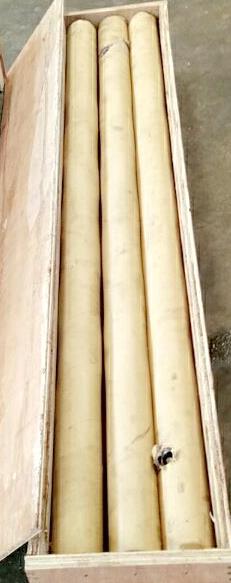

Packing

Order Details
