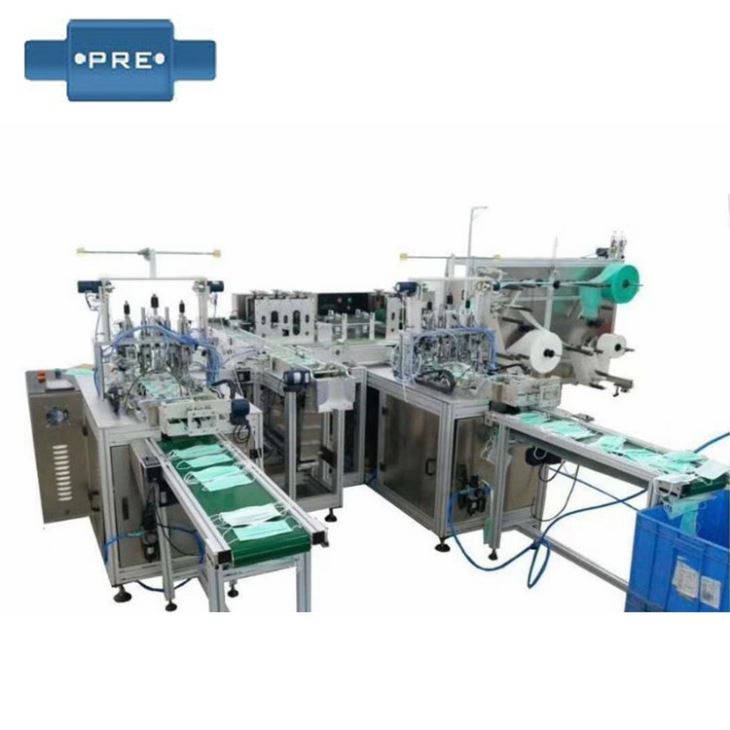

Automatic Intelligent Flat Mask machine

Function introduction:

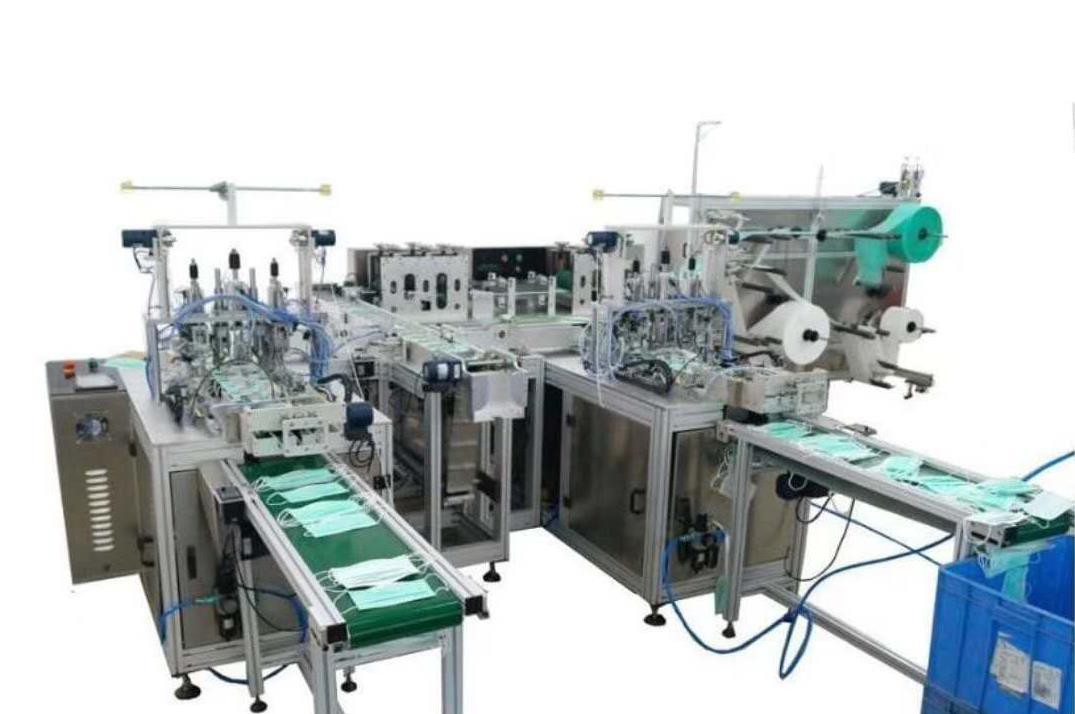

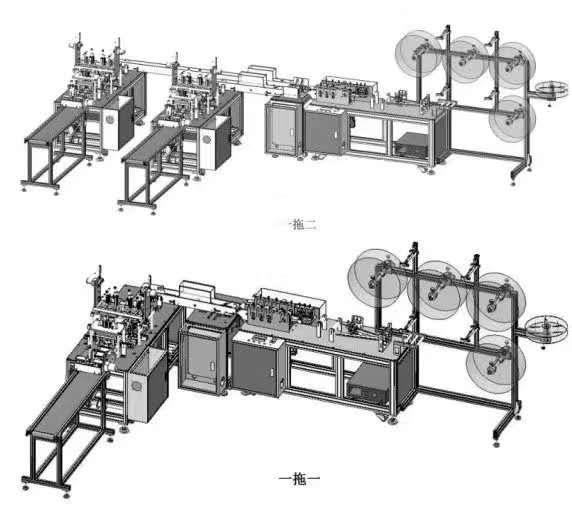

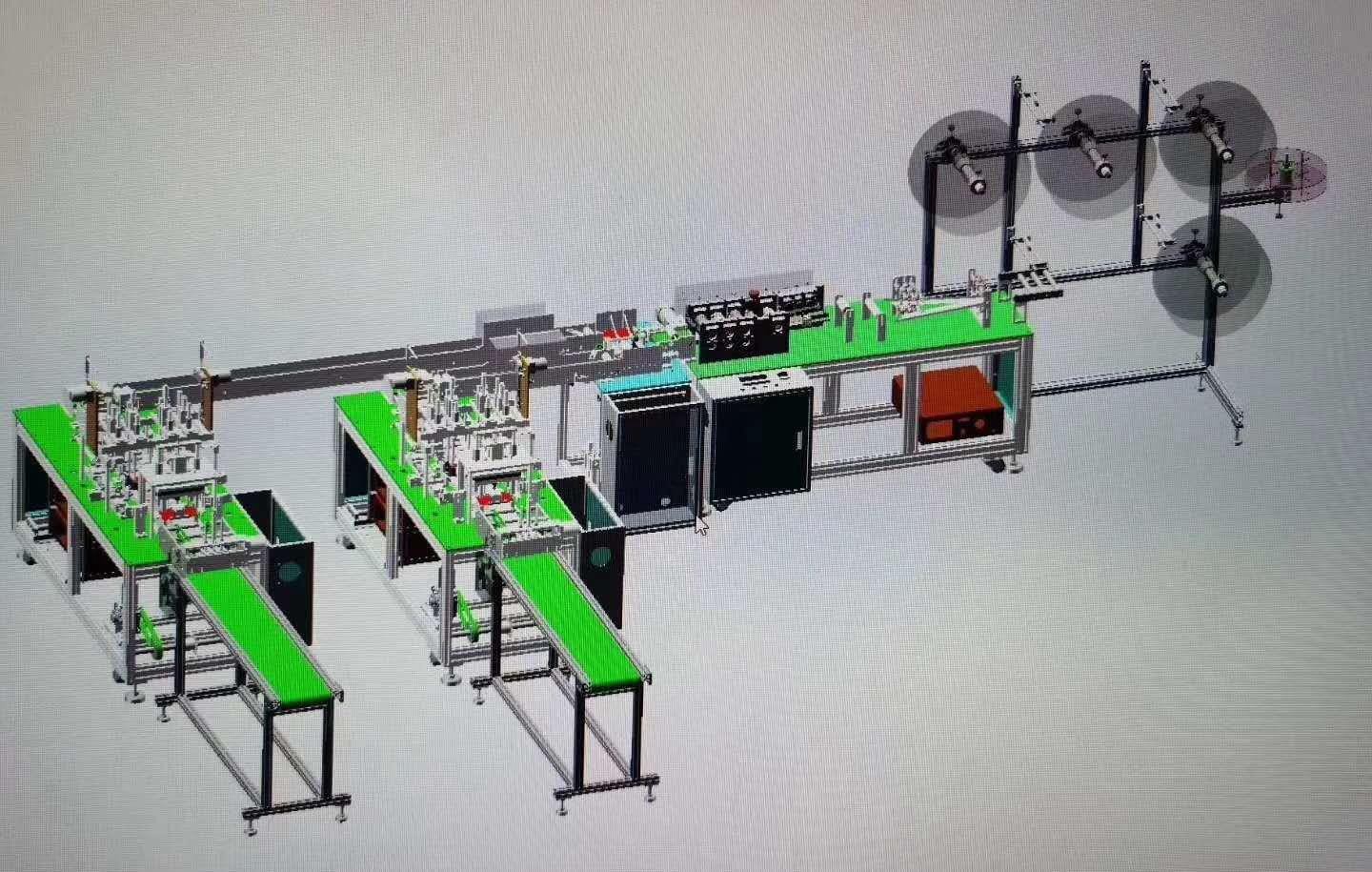

This machine consists of a mask machine body, a mask connection line, and two external ear strap machines, a one-to-two full-automatic intelligent disposable three-layer mask machine production line. The production speed of this machine can reach 100-240PPM, freely adjustable. Efficient and labor-saving. The whole machine starts from feeding, nose line insertion, edge banding, and cutting finished products are all automated. It is operated by one person, without special skills, and generally employees quickly get on the job.

Technical Parameters:
Equipment size: 7500x4100x2000mm;

Equipment weight: 3160KG;

Voltage: 220V / 50Hz;
Equipment power: 8.5KW;

Air compressor: V0.17 / 8, 1.5KW;

Mask specifications: 180x95mm;

Raw materials: three layers (25g heavy medical non-woven inner and outer layers, medical melt-blown cloth in the middle, and nose plastic wire made of PP plastic Strip 5x0.55mm, round earband is 3mm in diameter).

Equipment process

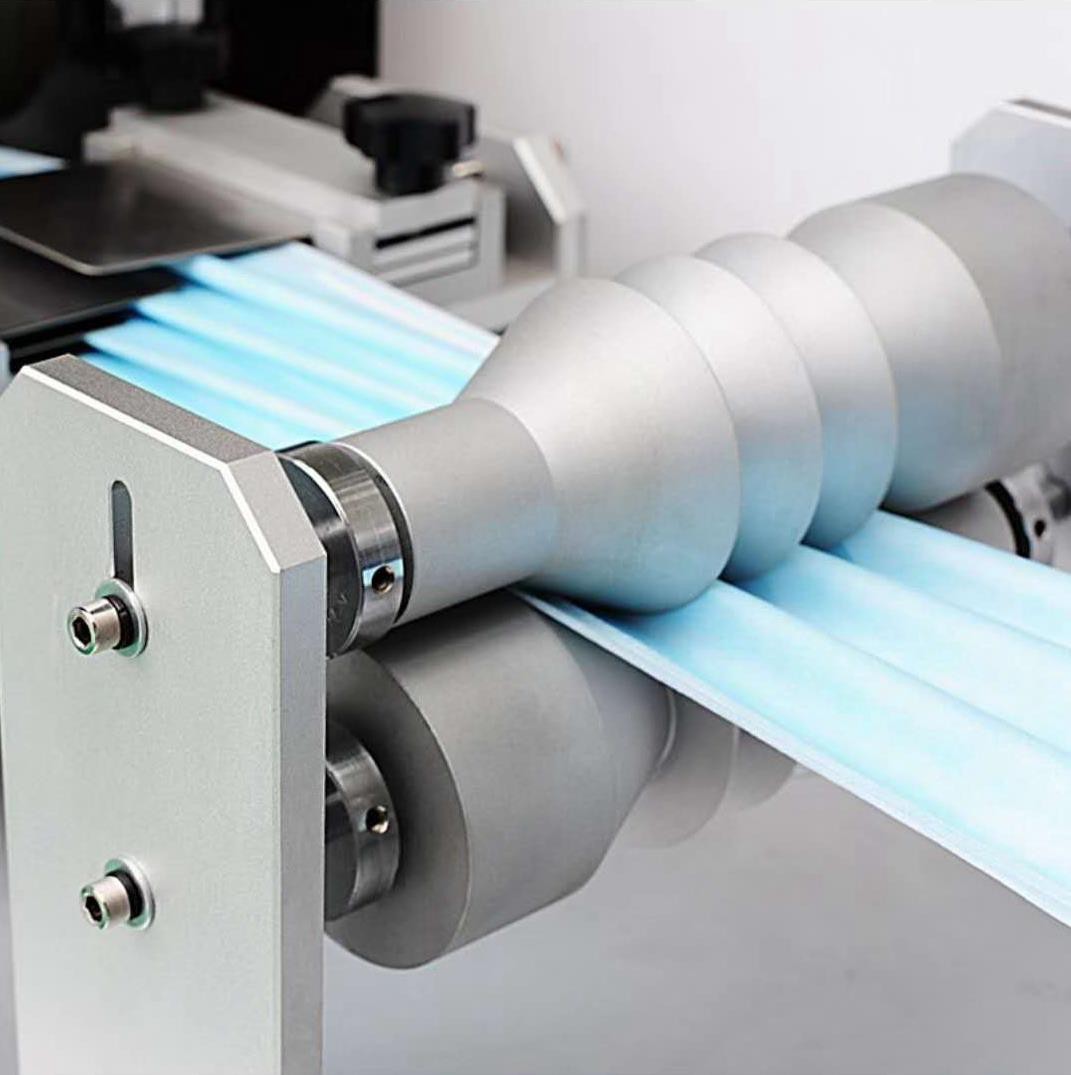

(1) Mask machine body: unwinding-ultrasonic compound-nose bridge-precompression compound-folding-precompression compound-ultrasonic compound-rolling

(2)Mask connection line: The prepared body mask is automatically transferred to the connection device on the conveyor line of the mask ear band machine.

(3) Mask external ear tape machine: feed into the body-cut-to-size tape-ultrasonic tape.

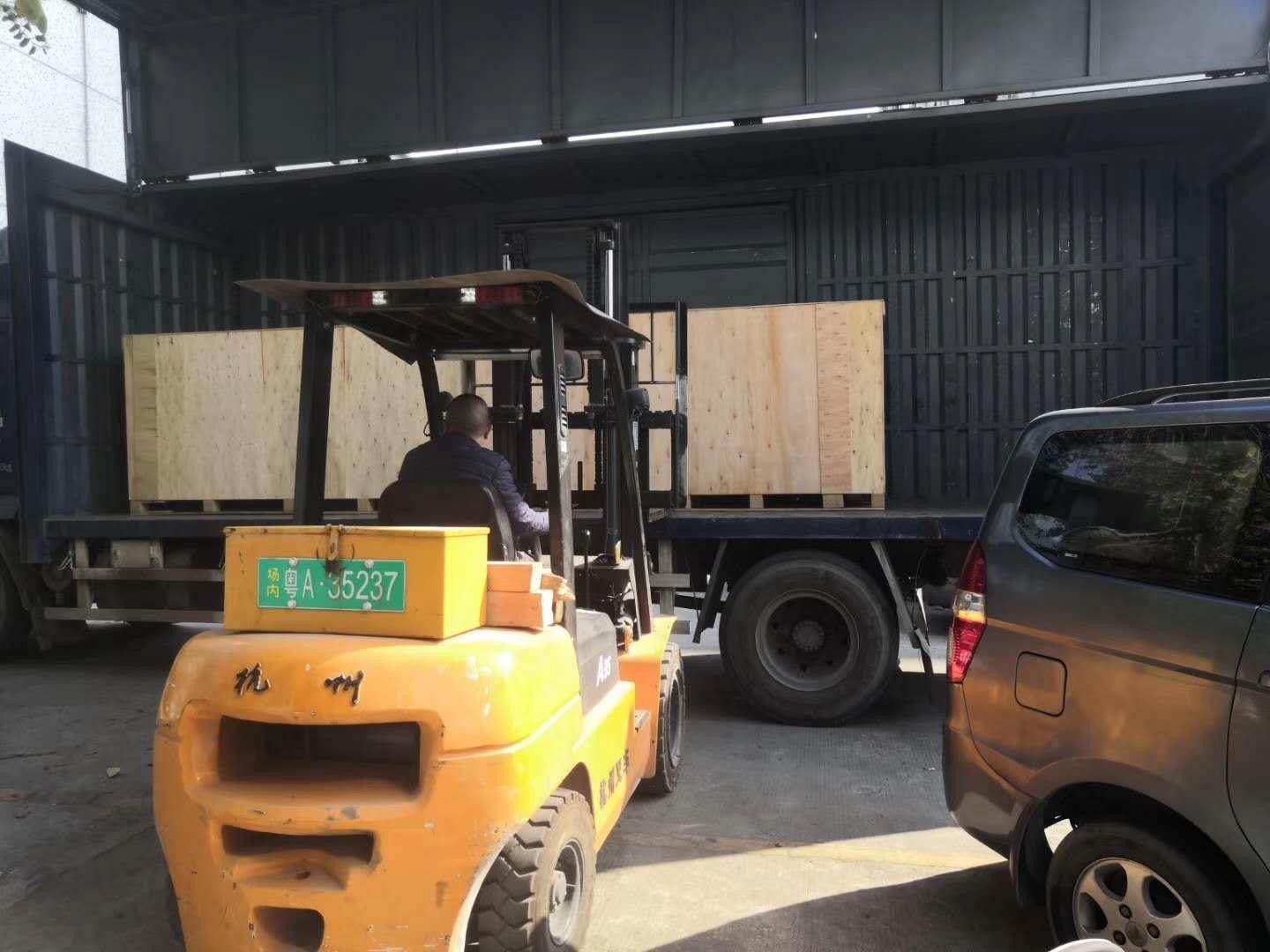

Packaging
