Control Systems Application Guide

Guiding manipulate gadget refers to the technical operation of the coil produced by means of the producer at some point of the spraying, printing, punching, laminating, slitting or different coil winding technique. the massive use of the internet guiding manage gadget has brought huge advantages to the industry. metallic, corrugated, textile, printing, labeling, labeling, paper, plastic film, constructing substances, cables, rubber, computerized control of tires, non-woven corrugated paper processing and different industries.
The precept of the rectification manage device is to send the infrared mild/ultrasound/laser/visible mild to screen the operation of the coil through the correcting sensor and ship the signal to the controller. after the controller finds that the coil has a positional go with the flow, it controls the correcting body to oscillate by using the driving force in keeping with a preset command of the controller to accurate the placement of the coil. the correction machine can offer numerous one-of-a-kind detection modes: edge detection, observe-up or medium. the drive system makes use of low-velocity synchronization, variable frequency velocity regulation, stepping and servo motor pressure. the force stroke and the coil offset are strictly proportional. . the machine can also be used with specific probes to fit the desires of different coils, which includes: infrared photoelectric, analog infrared photoelectric. the microcomputer virtual controller affords unique manage of the gadget's capabilities.

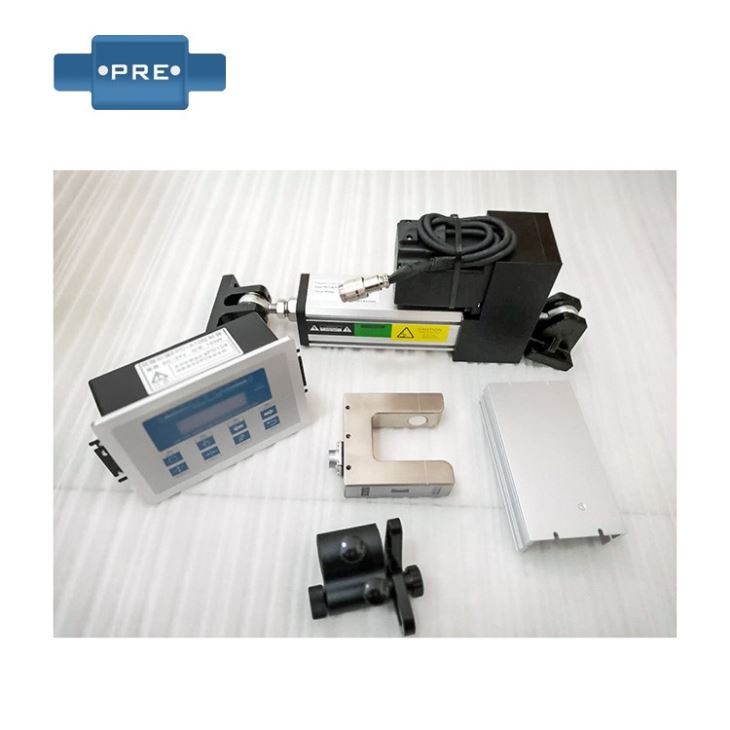

A standard automatic manual device includes a manual controller, a manual sensor, a manual frame and a motive force.

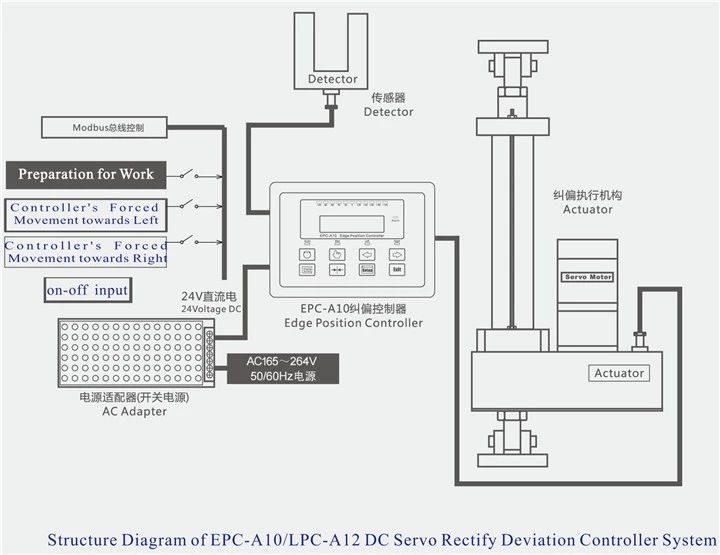

Control system:

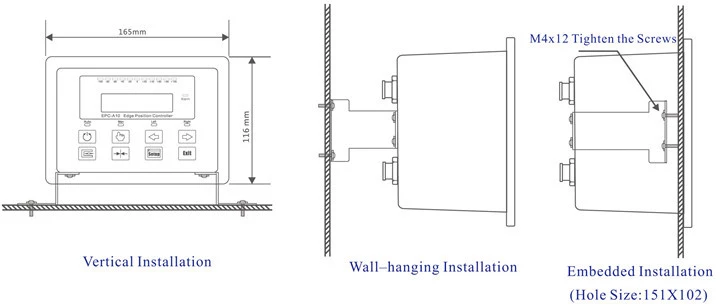

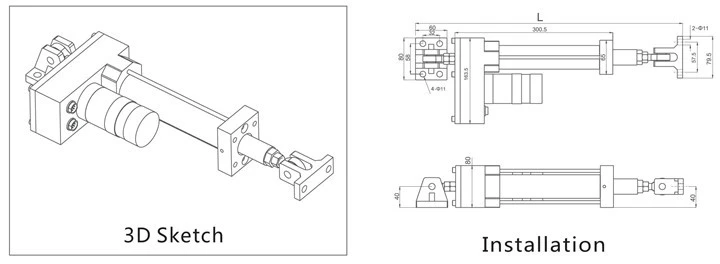

Installation :

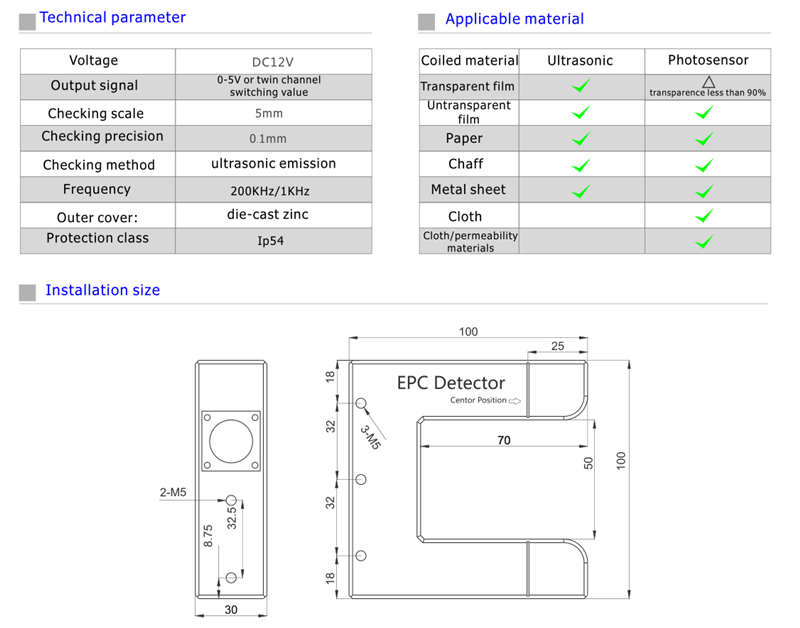

Guide sensor

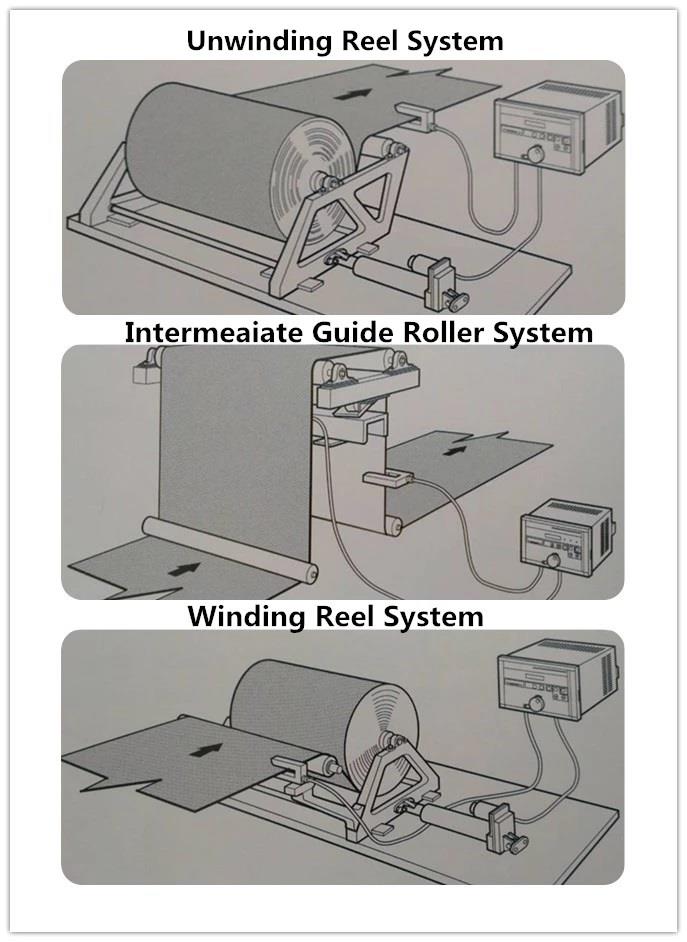

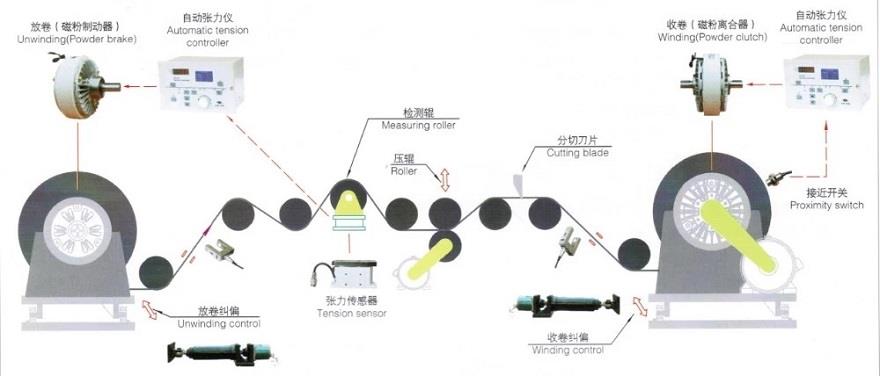

Application

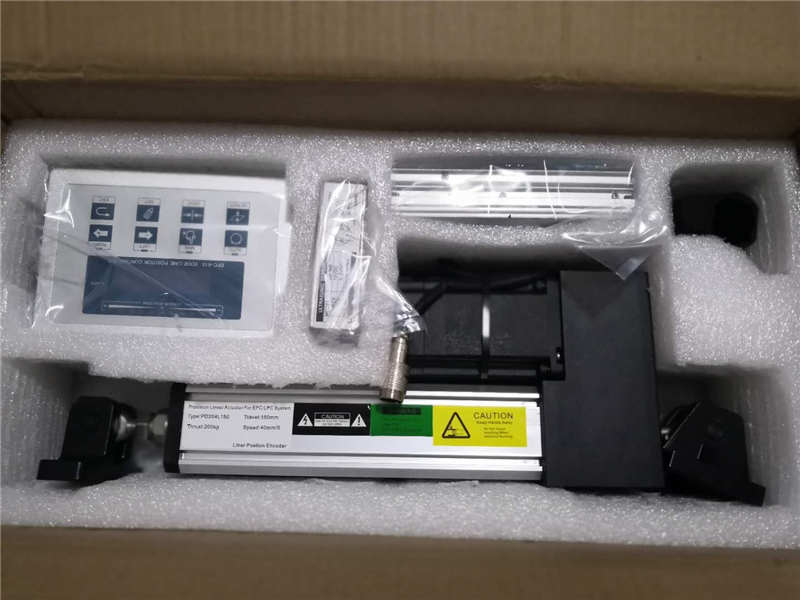

Packing

Order Details
