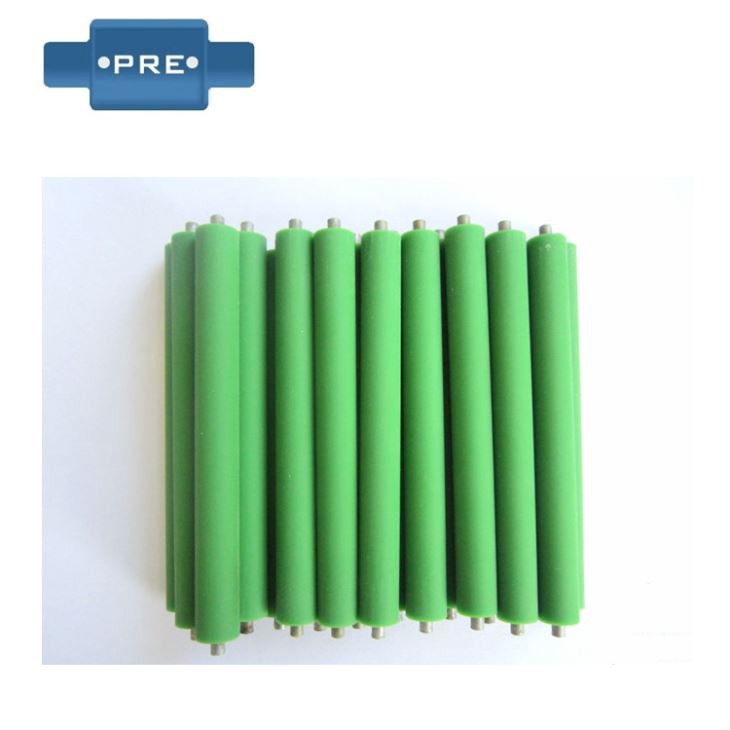

Polyurethane Roller

Polyurethane Roller detail: (customized acceptable) 1.Hardness : 45A-95A 2.Diameter : 8mm - 1000mm 3.Length : 300mm 500mm 1000mm 4.Color : yellow,red,bule,natural,ect 4. Density: 1.12--1.25g/CM3 5.customize accpetable 6. With smooth surface 7. Package: pallet, woven bag, carton box, Veneer, etc....

Send Inquiry Chat Now

Product Details

Polyurethane Roller detail: (customized acceptable)

1.Hardness : 45A-95A

2.Diameter : 8mm - 1000mm

3.Length : 300mm 500mm 1000mm

4.Color : yellow,red,bule,natural,ect

4. Density: 1.12--1.25g/CM3

5.customize accpetable

6. With smooth surface

7. Package: pallet, woven bag, carton box, Veneer, etc.

PU roller advantages:

1)Outstanding abrasion resistance

2)High tensile and tear strength
3)Resistance to oils, fuels, and oxygen
4)Fabulous weatherability and high impact resistance
5)Low compression set

pu roller application:

PU Roller is widely used in the following industry as conveying system, feeding system.

---Newspaper conveying,

---Packing machines,
---Ceramic and stoneware processing plants,
---Floor and roof tiles conveying,
---Wood Working machineries,
---Textile machines,

---Coal industry

---Paper industry machines,
---Food grading machines, other food processing machines.

Packing:	Woven Bags, Carton, Pallet, Veneer, Wooden Case, as per customer's requests
Delivery	5-10 Working days once order Confirmed
Shipment	1) Small order: By express, DHL, UPS, FEDEX, EMS 2) Large order: By sea or by air 3) Choose the best and convenient way for your need
Payment	1) We accept T/T, L/C, D/A, D/P and Western Union 2) For small account, we suggest pay by Western Union

Diameter			60-219mm
Length			100-3500mm
Tube			Q235(GB)
Shaft			45# steel(GB) equal to C45
Bearing			Single & Double Row Deep Groove Ball Bearing 2RZ&2Z wigh C3 clearance
Grease			Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal
Lubrication			Grease is Lithium soap type grease with Rust Inhibitors
Welding			Mixed gas shielded arc welding end
Painting			Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Standard Diameter		Lengthscope (mm)		Bearings Type (Min-Max)	Idler's shell wall thinkness
mm	Inch
63.5	21/2	150-3500		204	3.0mm-3.75mm
76	3	150-3500		204 205	3.0mm-4.0mm
89	31/3	150-3500		204 205	3.0mm-4.0mm
102	4	150-3500		204 205 305	3.5mm-4.0mm
108	41/4	150-3500		204 205 305 306	3.5mm-4.0mm
114	41/2	150-3500		204 205 305 306	3.5mm-4.5mm
127	5	150-3500		204 205 305 306	3.5mm-4.5mm
133	51/4	150-3500		204 206 207 305 306	3.5mm-4.5mm
152	6	150-3500		204 206 207 305 306 307 308	4.0mm-4.5mm
159	61/4	150-3500		204 206 207 305 306 307 308	4.0mm-4.5mm
165	61/2	150-3500		207 305 306 307 308	4.5mm-6.0mm
194	75/8	150-3500		207 307 308 309 310	4.5mm-6.0mm
219	85/8	150-3500		308 309 310	4.5mm-6.0mm

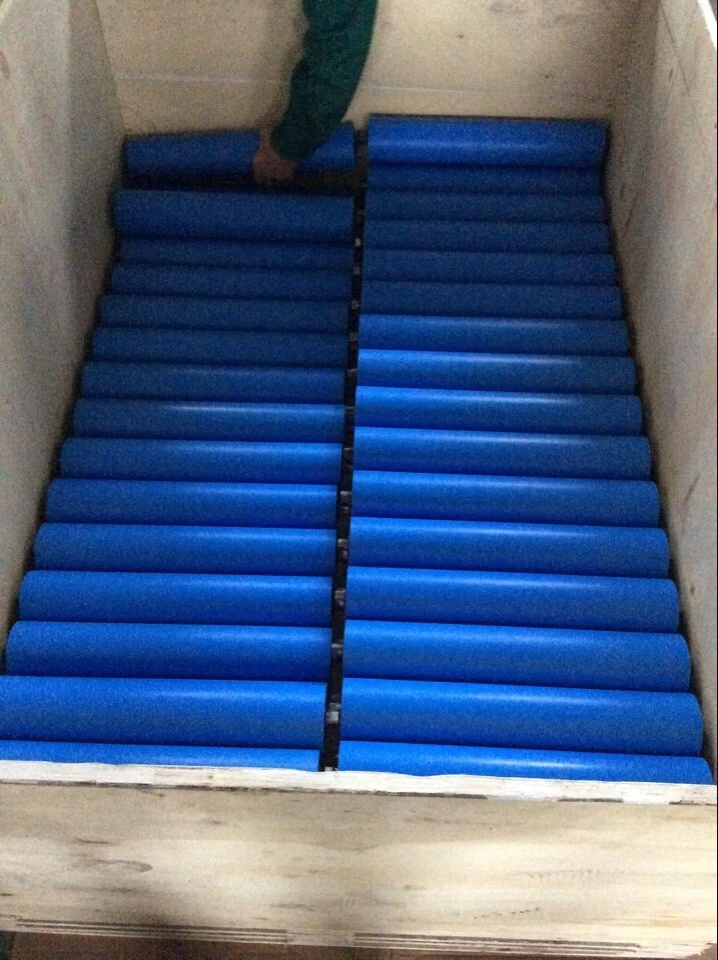

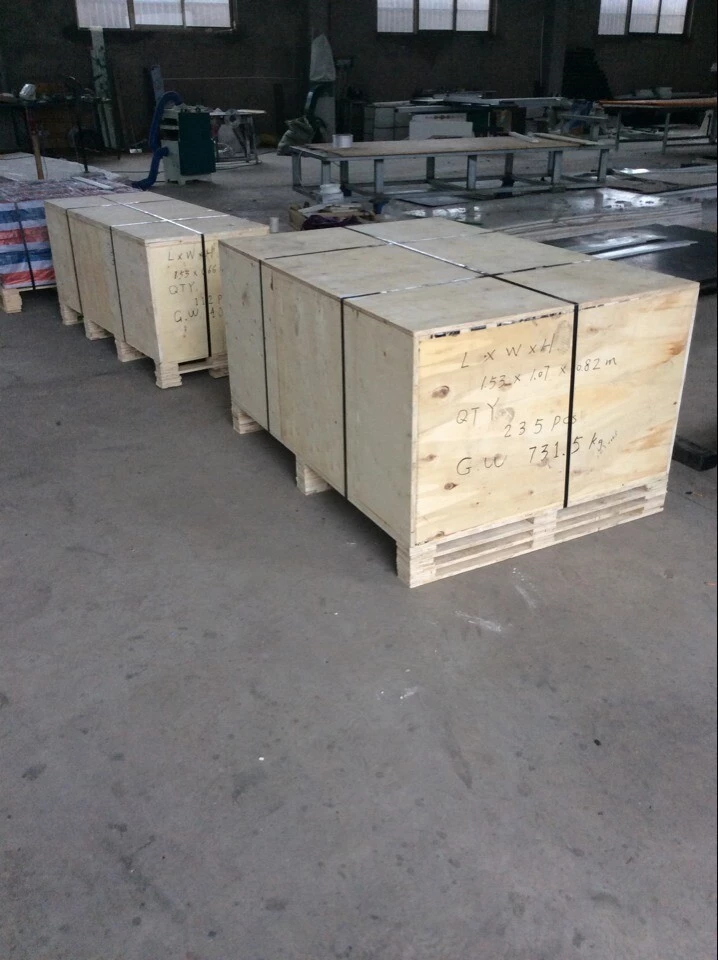

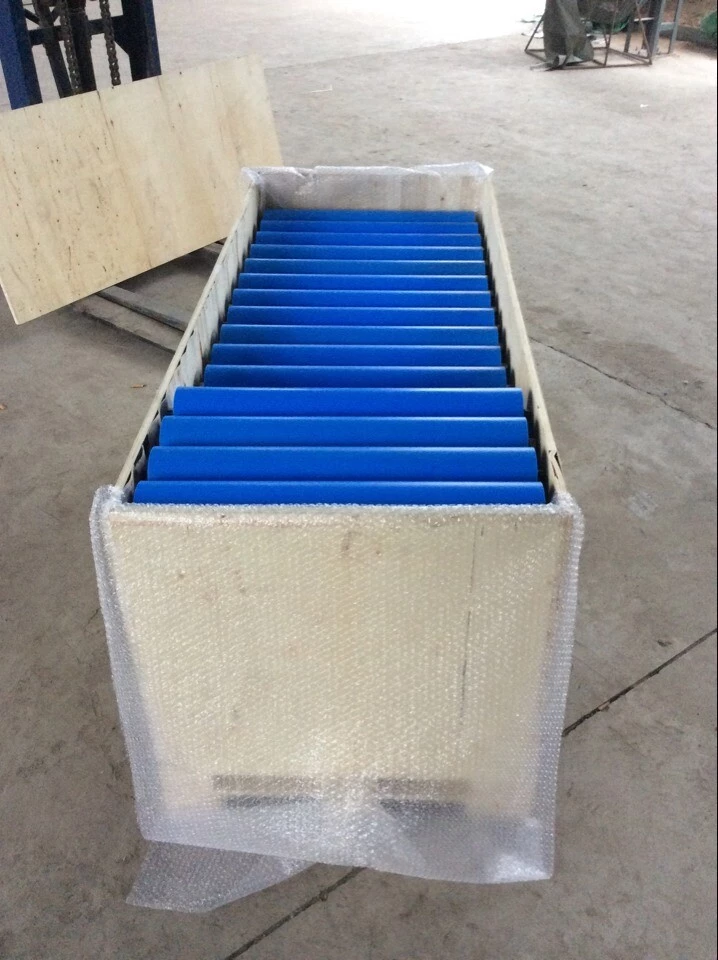

Packing

High Quality Hot Sale Polyurethane Coating Roller

Order Details

Item Name	Polyurethane Roller / PU Roller
MOQ(Minimum Order Quantity)	1PC
Lead time	5-10 days after receiving the deposit
Calculated Weight	Need to calculate
Package	Woven Bags, Carton, Pallet, Veneer, Wooden Case, as per customer's requests
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
