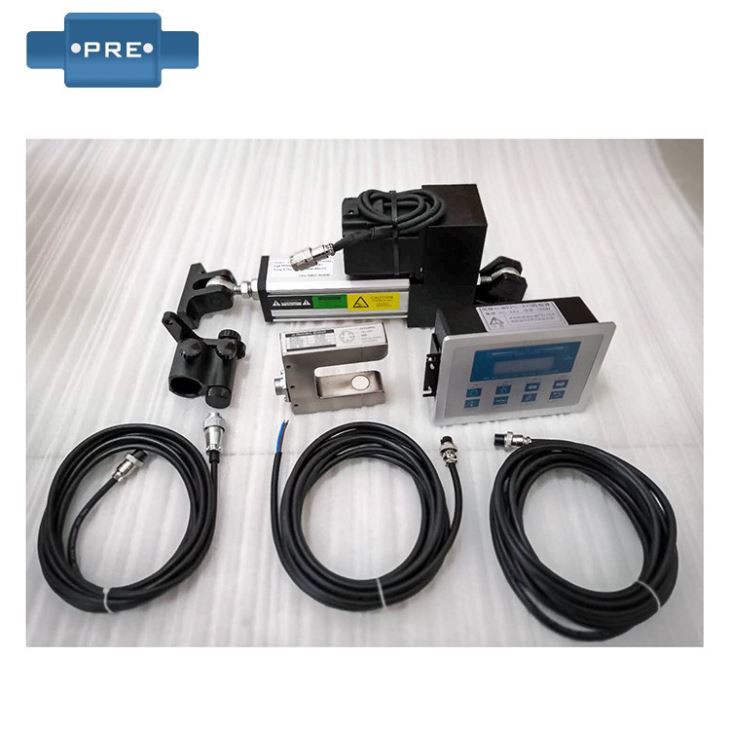

Deep Web Guides

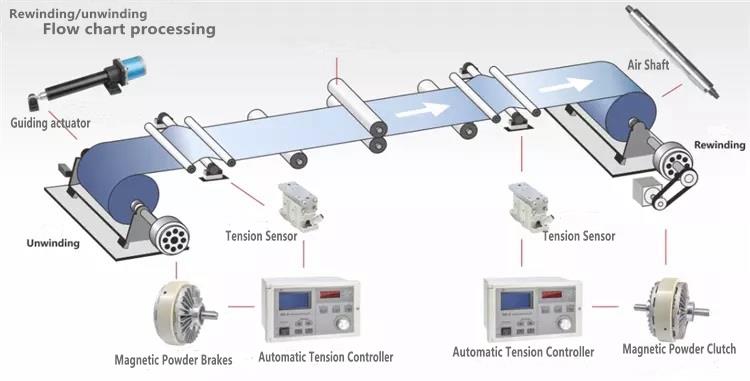

Winding Guide: Ensure that the curling is neat during the winding process.

Design and installation notes:
Winding guide is very similar to unwinding, but the installation is quite different. The guiding sensor is integrated with the winding movable frame. When the driver performs the telescopic movement, the guiding sensor and the winding movable frame act together; the introduction roller is independently fixed after the edge detecting sensor; if it is a photoelectric sensor, it should be irradiated on the independent fixed guiding roller. on.

Edge postion controller data:

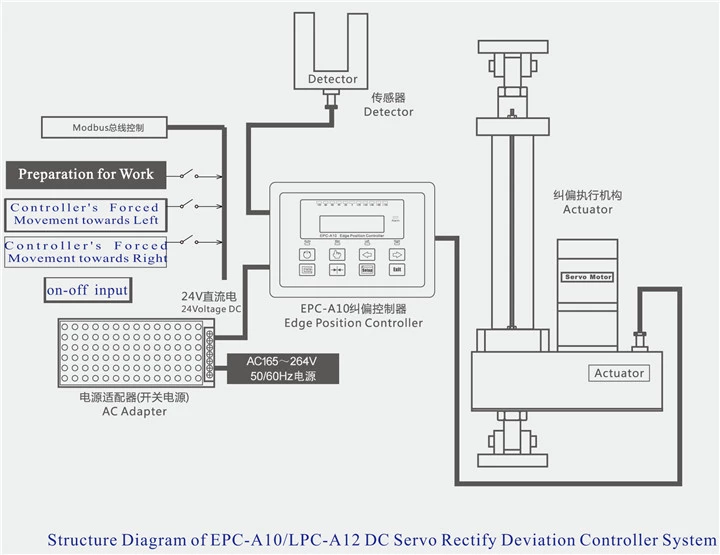

Edge Position Control system:

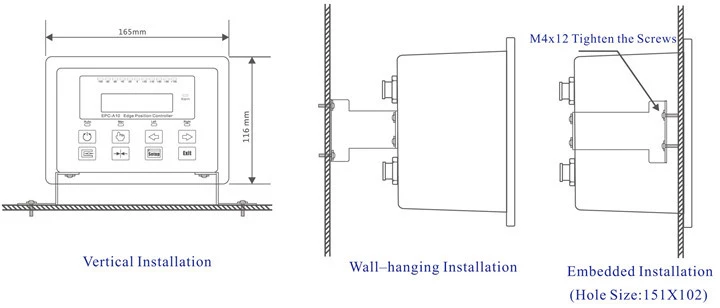

Installation :

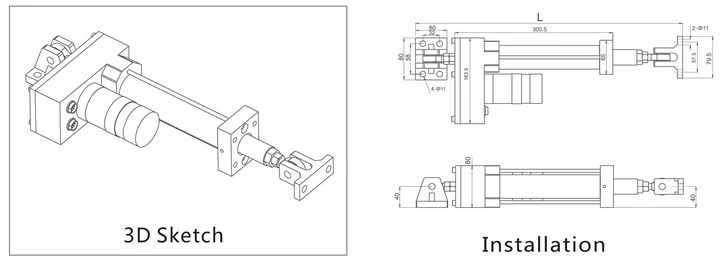

Servo Motor Linear Driver Parameter:

Model	Travel	Thrust	Pushing loading	Max. driving speed
PD-104L80	80mm	100kg	1000kg	40mm/s
PD-204L150	150mm	200kg	2000kg	40mm/s
PD-204L200	200mm	200kg	2000kg	40mm/s
PD-403L150	150mm	400kg	4000kg	30mm/s
PD-403L200	200mm	400kg	4000kg	30mm/s
PD-803L200	200mm	800kg	8000kg	30mm/s

Maintenance points of the guide system
(1) Neat: tools, workpieces, and accessories are placed neatly; the safety protection device of the correction system is complete; the line pipe is complete.

(2) Cleaning: clean inside and outside; all sliding surfaces and screws, gears, racks, etc. are free of oil and no bumps; no oil leakage, no water leakage, no air leakage, no leakage; cleaning of the garbage.

(3) Lubrication: Oil is changed on time, oil quality meets the requirements; oil pot, oil gun, oil cup, linoleum, oil line are clean and complete, the oil mark is bright, and the oil path is smooth.

(4) Safety: Implement the system of fixed and fixed shifts; familiarize with the maintenance structure of the correction system and observe the operating procedures, use the corrective system to maintain, carefully maintain the tools, and prevent accidents.

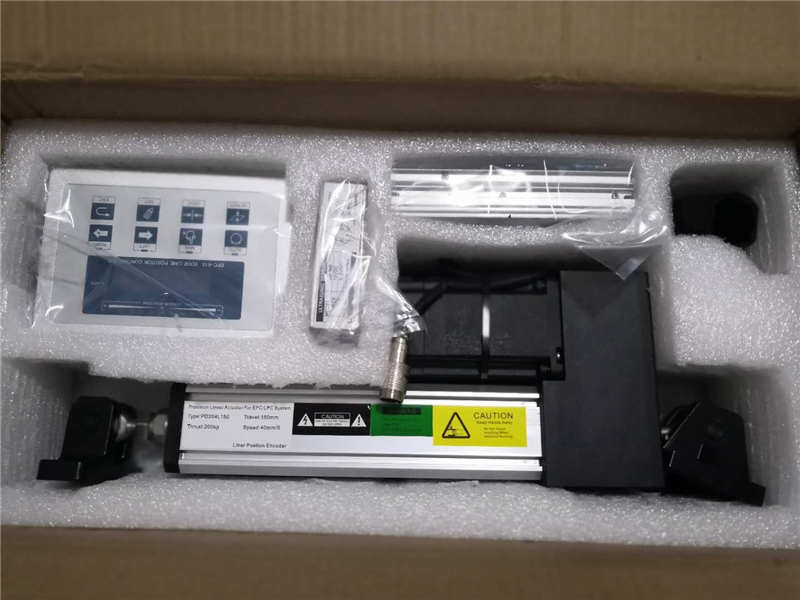

Packaging:
