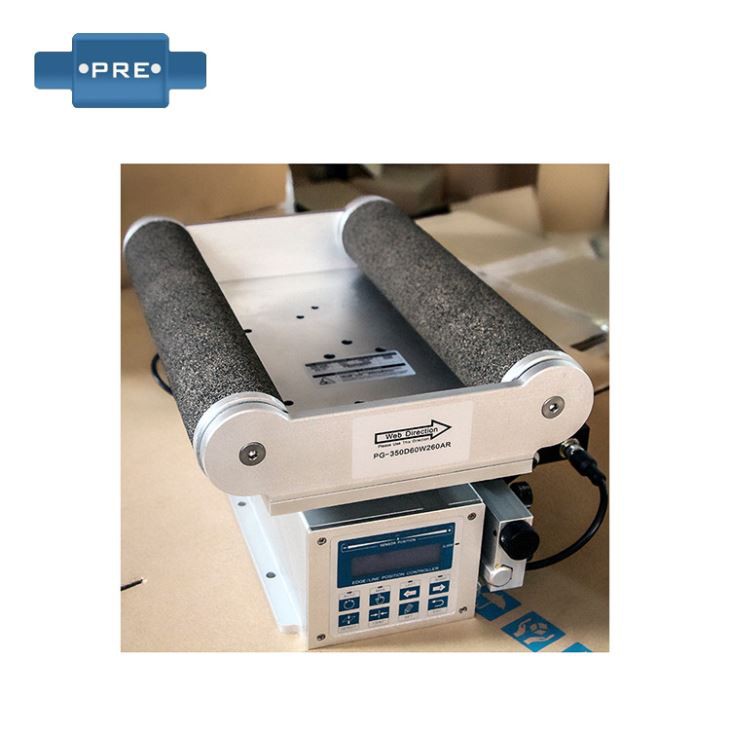

Edge Guide

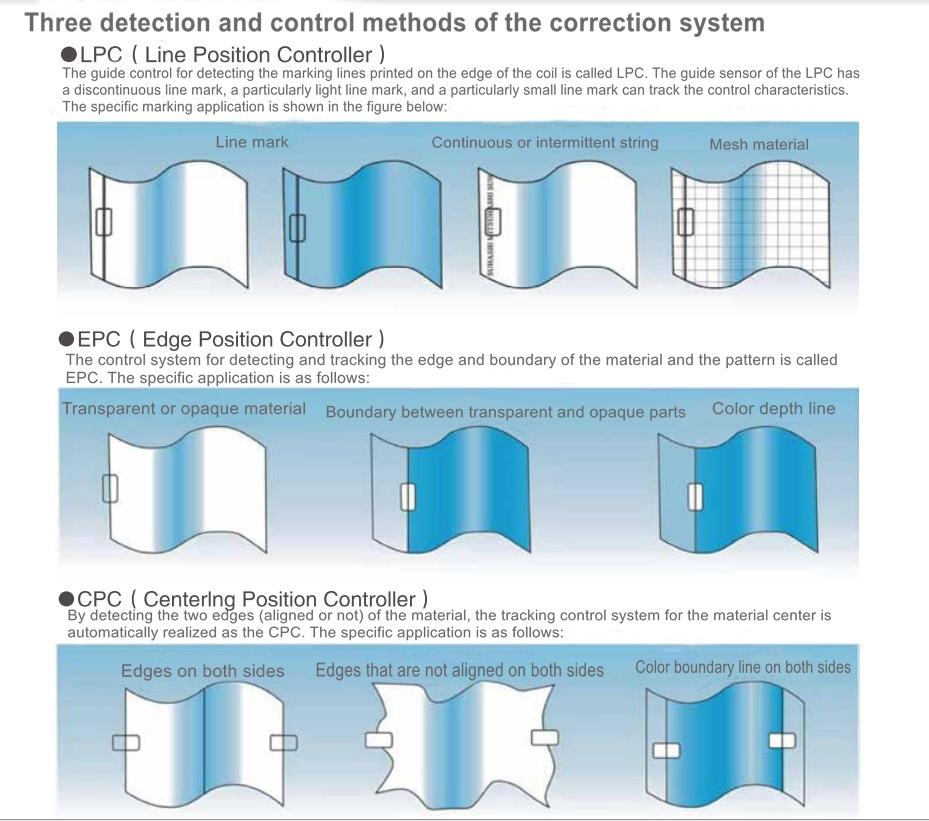

Web guide control system, also known as edge position control EPC-D10/LPC-A12 has developed and has line position control center line position control EPC-D10/LPC-A12, widely used in plastics, rubber, paper products, printing and packaging, textile, metal Various fields such as calendering. The most common practical control technology for foil-based materials in deep processing, which can improve productivity, improve product quality, reduce wear and improve efficiency.

The photoelectric guiding control system is a new type of guiding control system for light industry automation. The guiding control system adopts a single or two-way digital photoelectric sensor, and the permanent magnet synchronous AC motor drives the ball screw as an actuator, and is fully digital circuit controlled. Applicable to all kinds of occasions where lateral correction of strips is required. It can be matched with the whole machine that needs to be used for rectification control in slitting machine, bag making machine, laminating machine, coating machine, paper machine, printing machine, textile and building materials machinery. It is an ideal product for correcting occasions with medium speed (200m/min) and control accuracy of 0.31mm. The technical level is at the leading level in China.

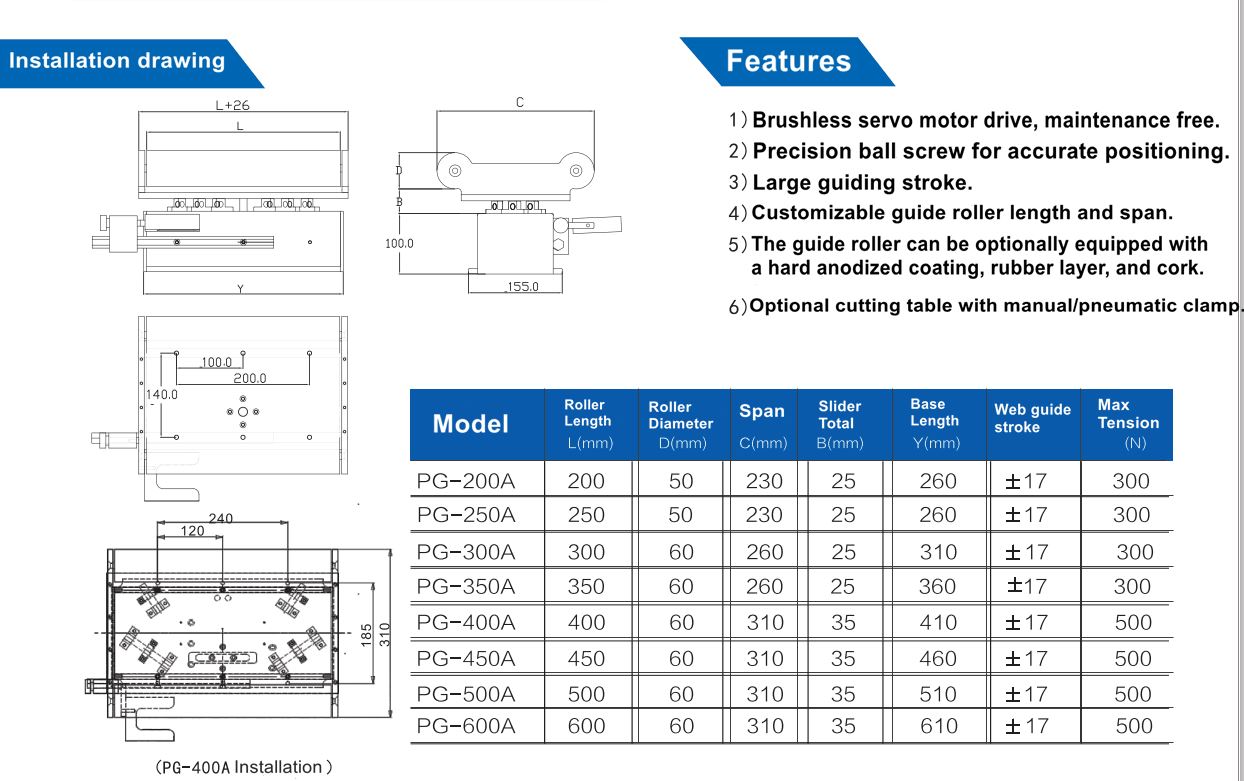

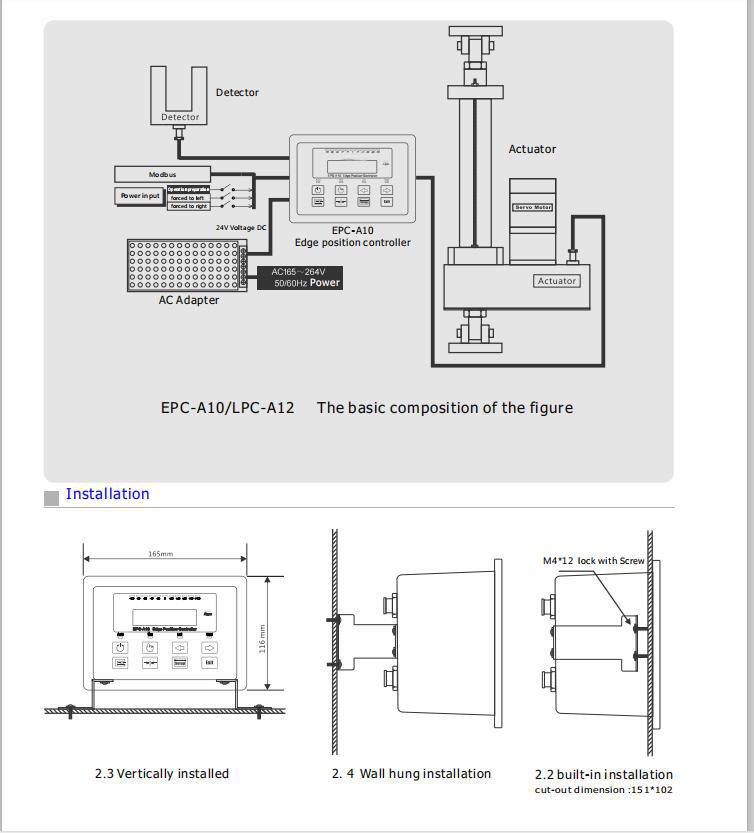

The standard configuration of this system includes the following three parts: single and dual opto-electrical correction controller, rectification control system actuator (with ball screw and motor), photoelectric eye (two) main function features, single-channel, two-way Digital control can be automatically selected; with edge (following) and pairing (following) control functions; with ball screw drive to reduce noise and improve service life.

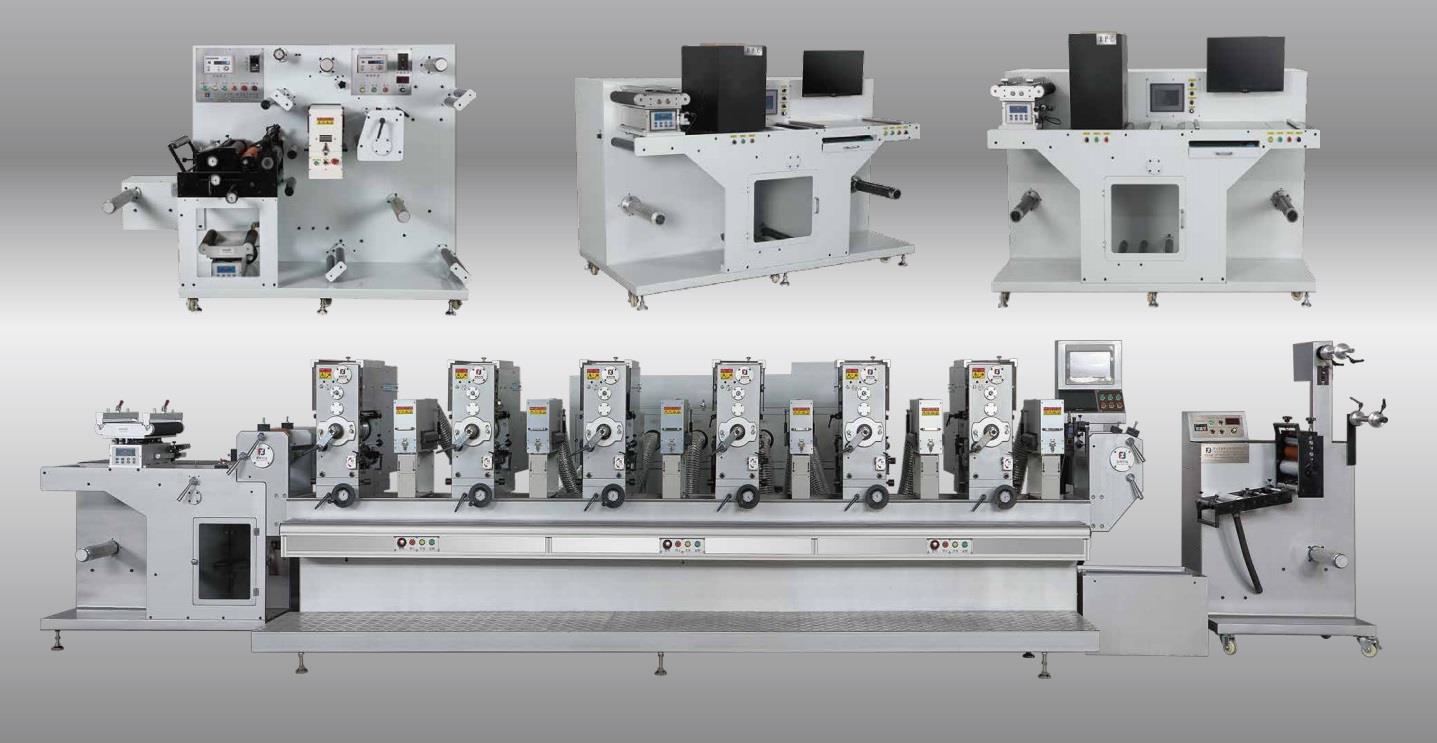

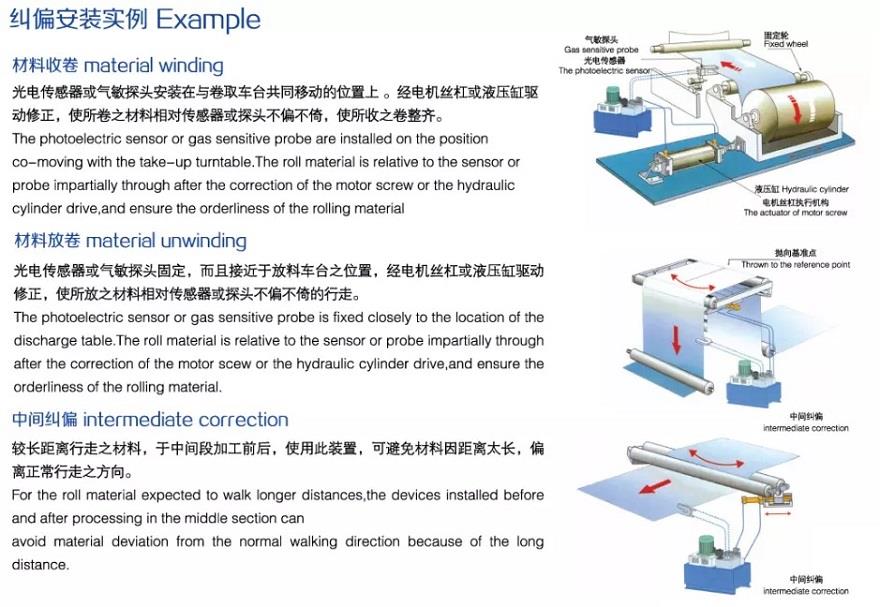

Application

Packing

Order Details
