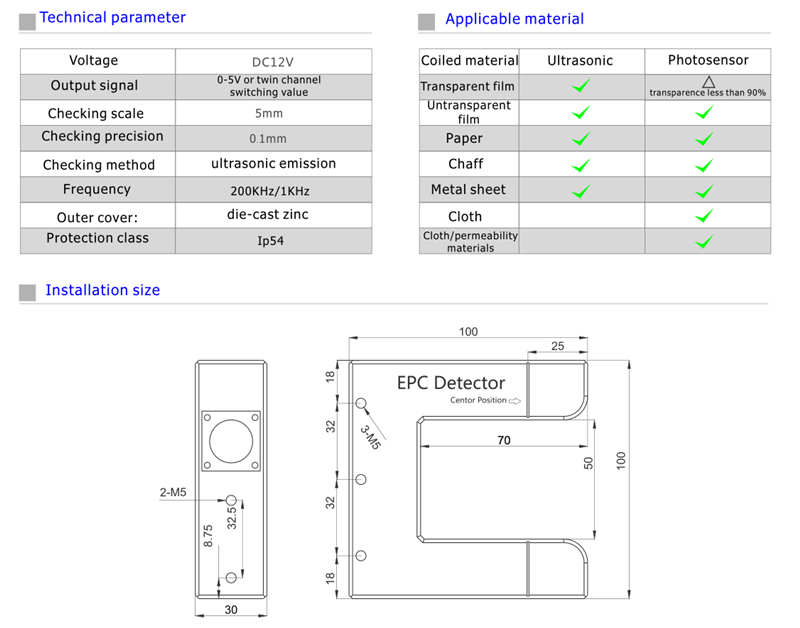

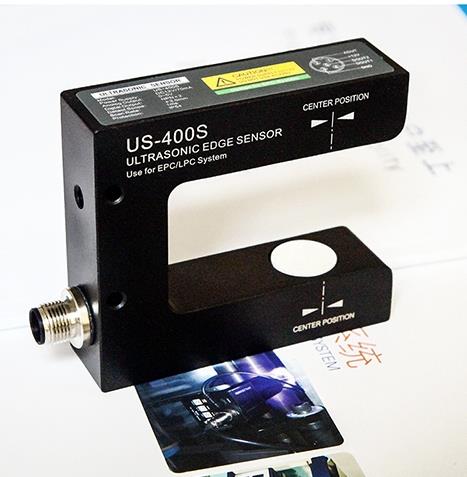

Ultrasonic Web Edge Sensor: US-400S/US-500

Features:
1. Support mode to measure / switch output, with correction controller,
2, suitable for opaque, transparent film line application
3, no need for workers to adjust the calibration 4, 200K ultrasonic beam
5, 1ms reaction time
6, detection range 5mm, monitoring accuracy 0.1mm
7, with offset
8. Ball screw pusher The correcting device has the characteristics of reasonable structure, stable performance, simple operation, sensitive and reliable, convenient maintenance, etc., thereby increasing production and reducing waste of raw materials. Therefore, it is widely used in the production of paper, packaging, printing, leather, textile and other industries.

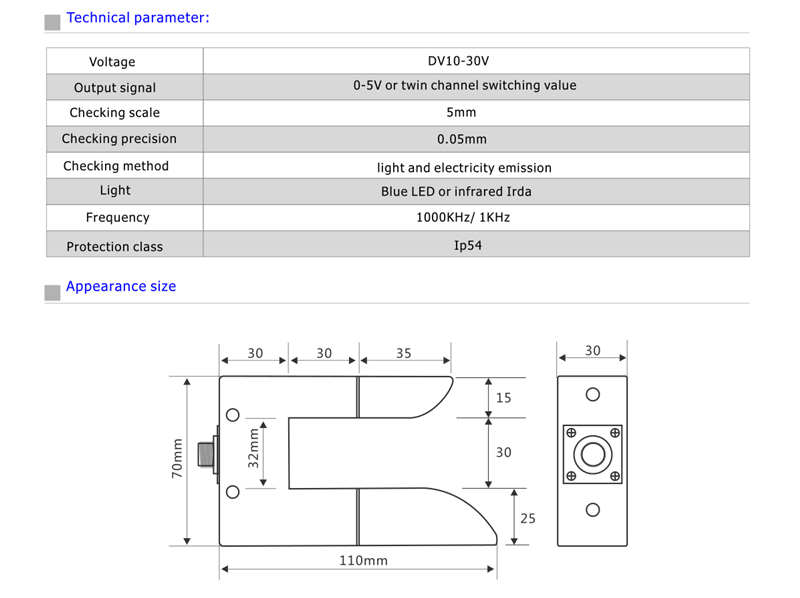

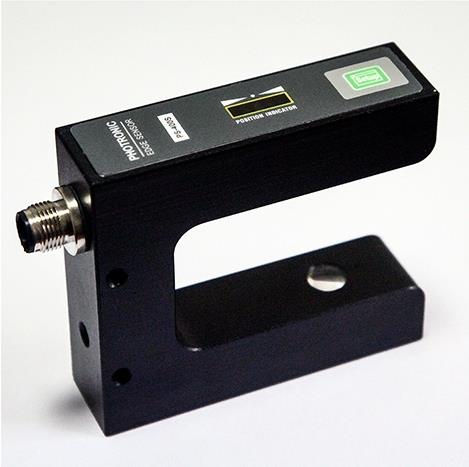

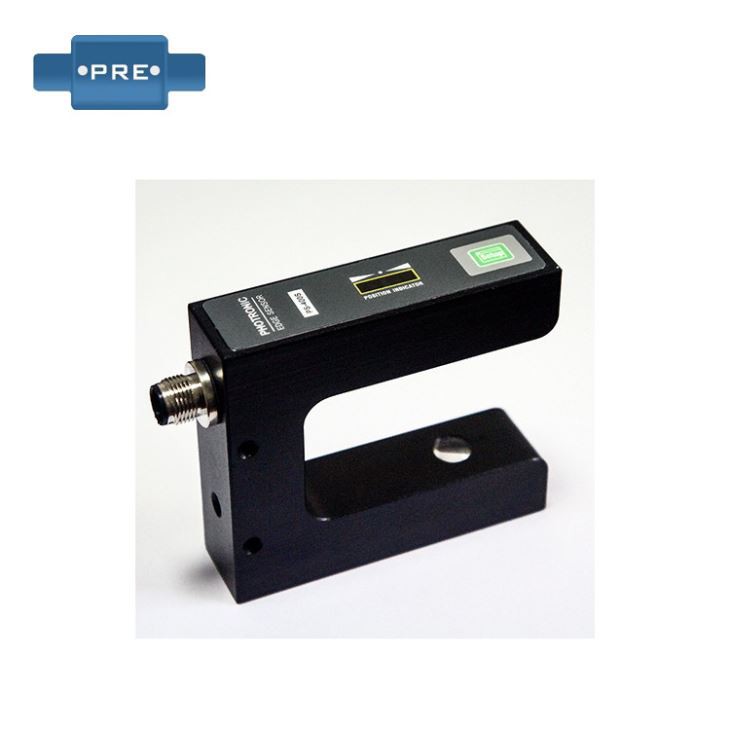

Photoelectric Edge Guide Sensor: PS-400S

Features
1, support analog / switch output.
2, suitable for opaque, transparent film edge application.
3, visible light shot.
4, 100K frequency carrier coding, not affected by ambient light.
5, detection range 5mm, detection accuracy 0.02mm.
6, high stability, high precision.

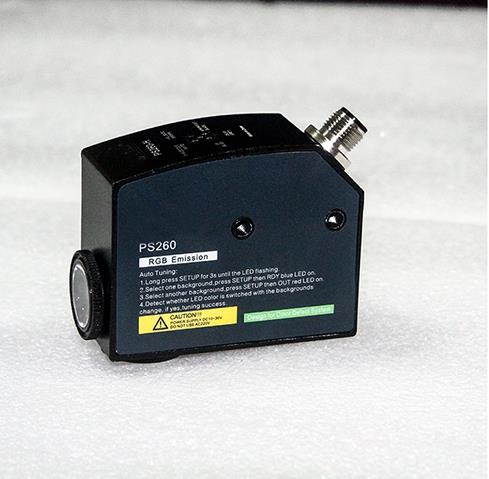

Reflection-Type Color Web Guide Sensor: PS-260

Features
1, switching output
2, intelligent selection of red, green and blue light source
3, intelligent calibration, no potentiometer adjustment.

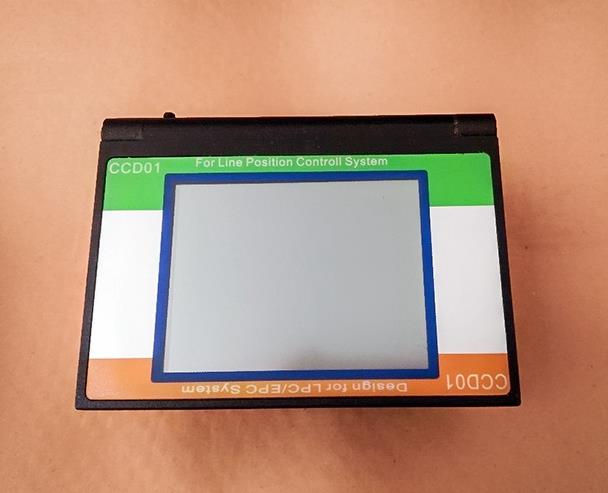

Electric Eye Camera CCD Sensor

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase
